Запчасти Case IH 8120 (80.180.12) - UNLOADING DRIVE (80) - CROP STORAGE/UNLOADING

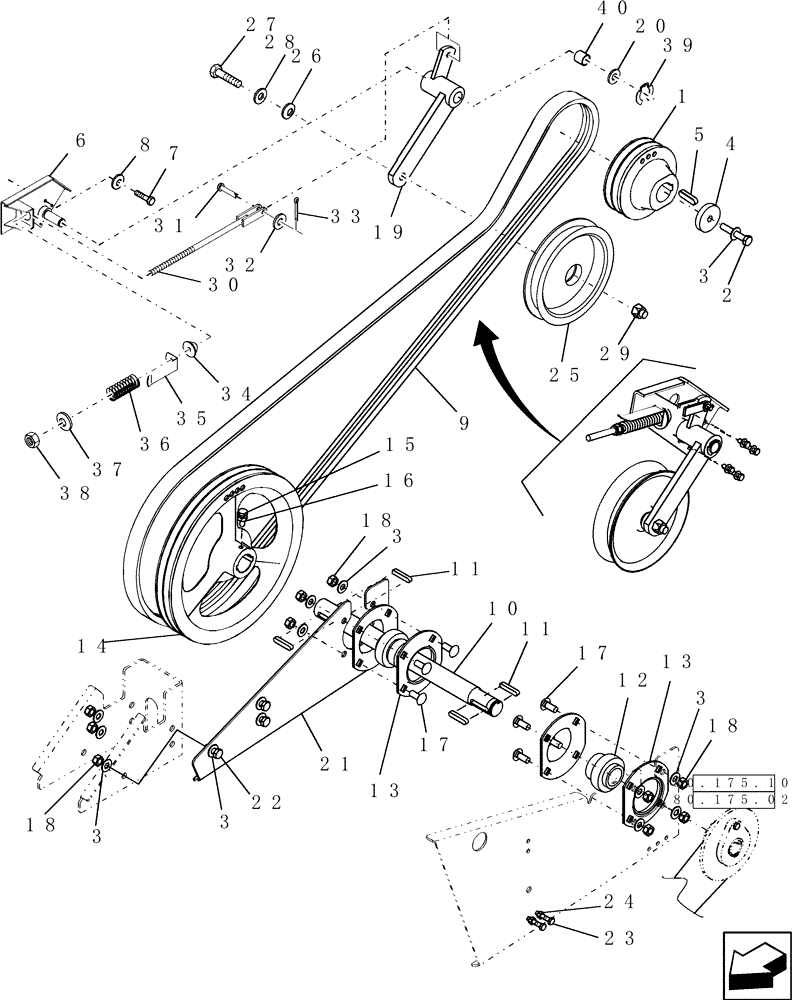

Схема запчастей Case IH 8120 - (80.180.12) - UNLOADING DRIVE (80) - CROP STORAGE/UNLOADING
21
3
7
3
12
3
28
1
13
39
2
17
80.175.02
4
37
19
11
31
30
13
33
26
3
3
40
24
17
10
29
6
5
38
35
22
18
9
23
36
80.175.10
25
14
8
15
20
27
34
16
32
18
18
11

Артикул

Название

Примечание

Количество

1

86999121

PULLEY,165mm OD

1шт.

2

9706717

BOLT,Hex, M12 x 1.75 x 70mm, Cl 8.8

1шт.

3

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

15шт.

4

84073172

WASHER,13mm ID x 60mm OD x 12mm Thk

1шт.

5

170066

KEY,14mm W x 50mm OAL x 9mm Thk

1шт.

6

86997160

PLATE

Belt Tensioner

1шт.

7

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

8

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

9

87011585

V-BELT,2HB, 38.1mm W x 3254mm L, 2 Ribs

Drive, 2HB

1шт.

10

87602267

SHAFT

L = 515 mm

1шт.

11

170012

KEY,8mm W x 50mm OAL

4шт.

12

455805

BALL BEARING,40mm ID x 80mm OD x 42.9mm Thk

& Lock Collar

2шт.

13

86620027

FLANGED BEARING,80.02mm ID x 147.6mm OD x 4mm Thk

4шт.

14

86999122

PULLEY,386mm OD

1шт.

15

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

1шт.

16

100016

NUT,M10 x 1.5, Cl 8

1шт.

17

120044

CARRIAGE BOLT,M12 x 1.75 x 30mm, Cl 8.8

8шт.

18

9706685

NUT,M12 x 1.75, Cl 8

11шт.

19

86596879

TENSIONER

Idler Arm

1шт.

20

27317

WASHER,26mm ID x 51mm OD x 1.17mm Thk

Shim

1шт.

21

86975573

SUPPORT

1шт.

22

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

3шт.

23

43129

BOLT,Hex, M8 x 1.25 x 40mm, LH Thd, Cl 8.8

5шт.

24

832-46408

NUT,M8 x 1.25, Cl 8

5шт.

25

86588003

IDLER,51.6mm W x 228.6mm OD

1шт.

26

86598190

BUSHING,16.25mm ID x 40mm OD x 17mm OAL

1шт.

27

350616

BOLT,M16 x 2 x 90mm, Cl 8.8

1шт.

28

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

1шт.

29

86000441

NUT,M16 x 2.0, Cl 8

1шт.

30

86587035

ROD

1шт.

31

80390040

PIN

Clevis, M10 x 35

1шт.

32

80140017

WASHER

M10

1шт.

33

80130003

COTTER PIN

M3.2 x 20

1шт.

34

86560521

PIVOT,13mm ID x 50mm OD x 25.4mm Thk

Plastic

1шт.

35

86596885

INDICATOR

1шт.

36

84814905

SPRING

1шт.

37

140018

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

1шт.

38

412126

NUT,M12 x 1.75

1шт.

39

579497

CIRCLIP,M20

1шт.

40

84057311

BUSHING,25mm ID x 28mm OD x 20mm L

2шт.

Выбрано товаров: 40
