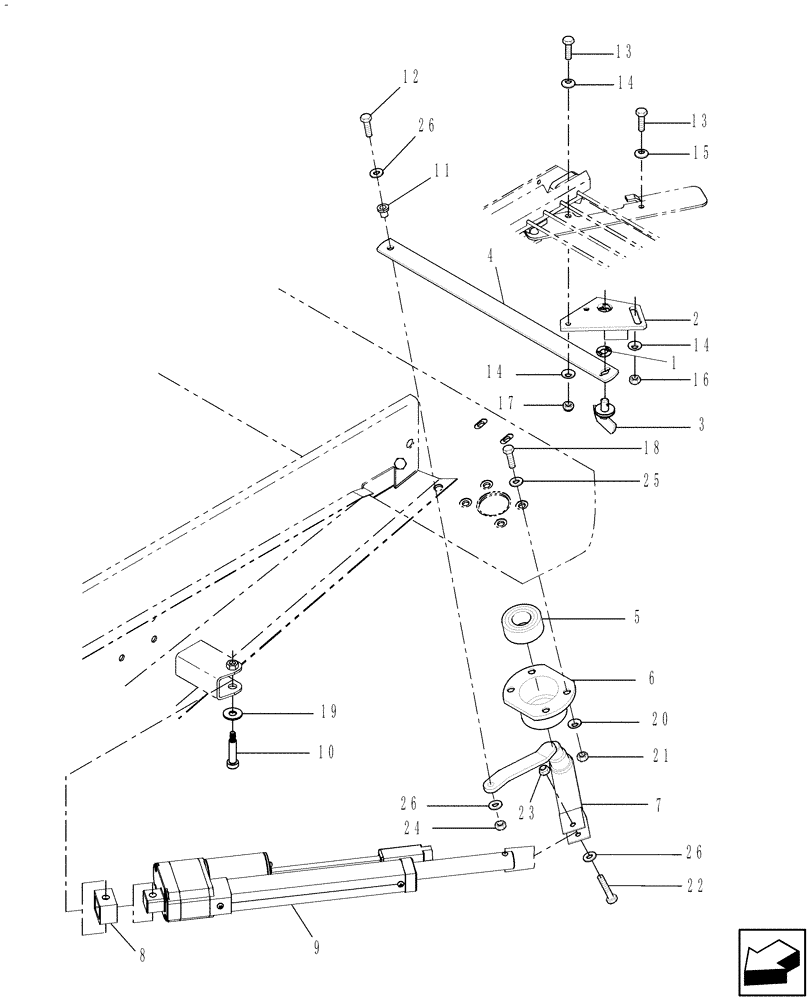

Запчасти Case IH 8120 (74.118.04[02]) - REMOTE LOWER SIEVE, ADJUSTMENT, 7120 ONLY (74) - CLEANING

1

9514605

LOCK WASHER,9.8mm ID x 18.5mm OD x 1.5mm Thk

1шт.

2

84053677

PLATE

1шт.

3

9831581

LOCK

1шт.

4

87011102

LEVER

1шт.

5

NLS

NO LONGER SERVICED

1шт.

6

87526988

HOUSING

1шт.

7

87011804

LEVER

1шт.

8

87711044

BLOCK,16.8mm ID x 26mm OD x 34mm OAL x 26mm Thk

1шт.

9

87711042

ACTUATOR

, Serial Range: -Y9G207358

1шт.

84208481R

REMAN-ELECTRIC MOTOR

8120 - AXIAL - FLOW COMBINE Serial Range: -Y9G207358 (9/08-) Reman for New P/N 87711042

1шт.

84208481C

CORE-ELECTRIC MOTOR

Return Number

1шт.

9

84208481

ACTUATOR

, Start Serial: Y9G207358

1шт.

84208481R

REMAN-ELECTRIC MOTOR

8120 - AXIAL-FLOW COMBINE Start Serial: Y9G207358 (9/08-)

1шт.

84208481C

CORE-ELECTRIC MOTOR

Return Number

1шт.

10

87471830

STEP BOLT,M6 x 1.0 x 46.5mm, Gr 12.9

1шт.

11

87013640

BUSHING,8mm ID x 12.75mm OD x 12.26mm L

1шт.

12

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

1шт.

13

120100

BOLT,M6 x 20mm, Cl 8.8

2шт.

14

412649

BELLEVILLE WASHER,M6 Bolt Size x 18mm OD x 1.4mm Thk

3шт.

15

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

1шт.

16

9706755

NUT,M6, Cl 8

1шт.

17

353308

NUT,M6 x 1.0, Cl 8

1шт.

18

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

19

378243

WASHER,8.4mm ID x 21mm OD x 1.6mm Thk

1шт.

20

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

21

9706690

NUT,M8 x 1.25, Cl 8

4шт.

22

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

1шт.

23

280129

NUT,1/4"-20

1шт.

24

86629542

NUT,M8 x 1.25, Cl 8.8

1шт.

25

140041

WASHER,M8 x 28mm OD x 3mm Thk

4шт.

26

140040

WASHER,6.6mm ID x 22mm OD x 2mm Thk

3шт.
