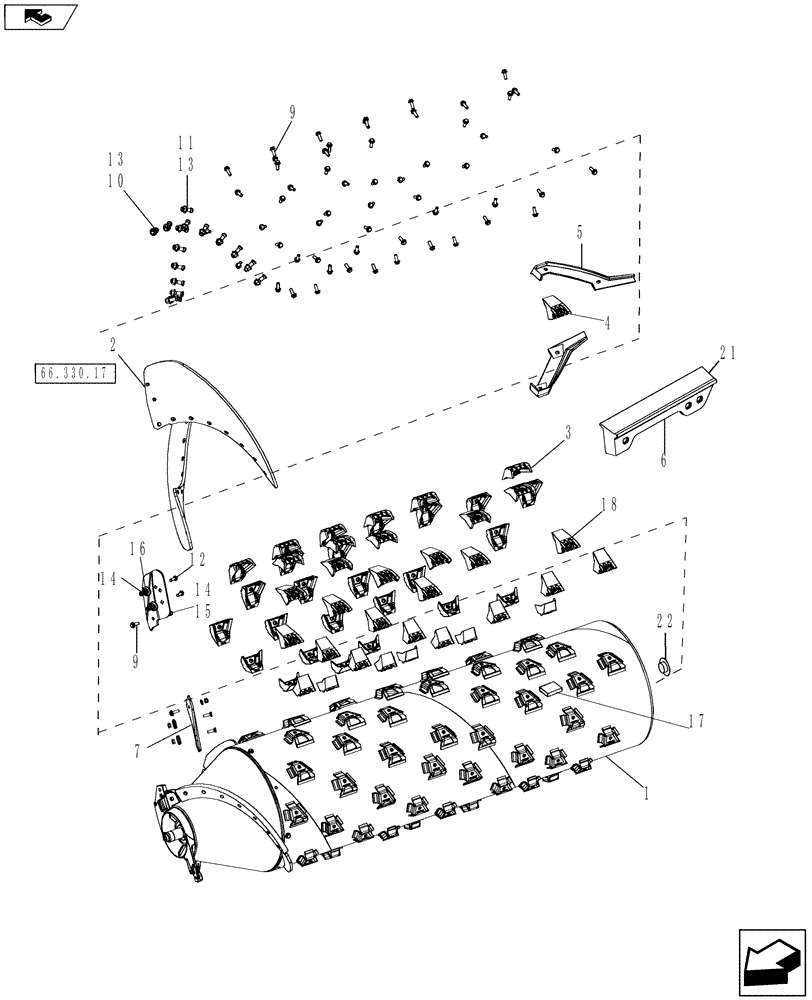

Запчасти Case IH 8120 (66.330.01) - ROTOR (66) - THRESHING

1

87745154

ROTOR ASSY.

Specialty, Grain/Corn, Extended Wear, Large Tube

1шт.

1

87723898

ROTOR ASSY.

KIT, STANDARD WEAR RICE ROTOR, Extended Wear, Small Tube

1шт.

1

87608738E

ROTOR

40 Element, Rice, Extended Wear, Small Tube, Start Serial: YAG208274

1шт.

1

87608738

ROTOR ASSY.

ROTOR ASSY RICE PAINTED

1шт.

1

87745163

ROTOR ASSY.

Specialty, Grain/Corn, Not For Latin America, 71/8120 Only, Standard Wear, Large Tube

1шт.

1

87620394

ROTOR ASSY.

36 Element Grain/Corn, Extended Wear, Small Tube

1шт.

1

84286030

ROTOR ASSY.

40 Element Grain/Corn, Extended Wear, Small Tube, Start Serial: YAG208270

1шт.

1

84232194

ROTOR

76 Element Grain/ Corn, Abrasive W/ Separator Bars

1шт.

2

NSS

NOT SOLD SEPARAT

Flighting, Auger; Must Order Kit 87715003

2шт.

3

278821A2

RASP BAR

CHROME, Without Spike - SPECIAL, Replace in Pairs to Maintain Rotor Balance

64шт.

3

278820A4

RASP BAR

With Spike - RICE, Replace in Pairs to Maintain Rotor Balance

72шт.

3

87368806

RASP BAR

With Spike, Hardened; 87620394 (8), 87723898 (36), Small Tube, Replace in Pairs to Maintain Rotor Balance

1шт.

3

1309336C2

RASP BAR

Without Rear Spike - GRAIN, Replace in Pairs to Maintain Rotor Balance

64шт.

4

278820A4

RASP BAR

With Spike - GRAIN & SPECIAL

8шт.

4

87368807

RASP BAR

Extended Wear, Small Grain, Abrasion Resistant, , W/O Spike, 28 Degree; 87620394 (28), Small Tube, Non-Spiked, Replace in Pairs to Maintain Rotor Balance

1шт.

5

86992048

BAR

Extended Wear

2шт.

5

87396383

PLATE ASSY.

Rice, Helical Kicker Wear, Small Tube

2шт.

5

1327676C1

BAR

Standard Wear

2шт.

6

86981487

BOLT,Flange, M12 x 35mm, Full, Cl 10.9 DOR

87745154 & 87745163 (78), 87620394 (38), Large Tube

1шт.

6

87314103

PLOW BOLT,M12 x 1.75 x 40mm, Cl 10.9

Small Tube

6шт.

7

87342923

WEAR PLATE

1шт.

8

86512380

FLANGE NUT,M16

14шт.

9

86981487

BOLT,Flange, M12 x 35mm, Full, Cl 10.9 DOR

1шт.

10

86900235

BOLT,Hex, M16 x 55mm, Cl 10.9, Full Thd

2шт.

11

87314103

PLOW BOLT,M12 x 1.75 x 40mm, Cl 10.9

2шт.

12

87314103

PLOW BOLT,M12 x 1.75 x 40mm, Cl 10.9

4шт.

13

86512380

FLANGE NUT,M16

Countersunk Special Hd, CL 10.9, M16 x 65

14шт.

14

412672

NUT,Hex, M12 x 1.75, Cl 10

4шт.

15

87342923

WEAR PLATE

1шт.

16

9843611

BOLT,Hex, M16 x 2.0 x 55mm, Cl 10.9

Large Tube

1шт.

16

87394282

PLOW BOLT,M16 x 55mm, Cl 10.9

M16 x 55, Small Tube

1шт.

16

87315598

SHIELD

4шт.

17

203960H1

COUNTERWEIGHT

3+/-шт.

18

87602594

RASP BAR

Small Rotor, Straight Separator Bar

8шт.

20

86981487

BOLT,Flange, M12 x 35mm, Full, Cl 10.9 DOR

1шт.

21

1318976C2

BAR,Straight Seperator

Standard Wear

4шт.

21

1318976C2

BAR,Straight Seperator

Corn

8шт.

21

86992047

BAR

Extended Wear

2шт.

22

87697368

PLASTIC PLUG

1шт.

23

87281664

SUPPORT

Weld On Rasp Bar Mount, Large Tube (Not Shown)

1шт.

23

87601297

SUPPORT ASSY.

Weld On Rasp Bar Mount, Small Tube (Not Shown)

1шт.
