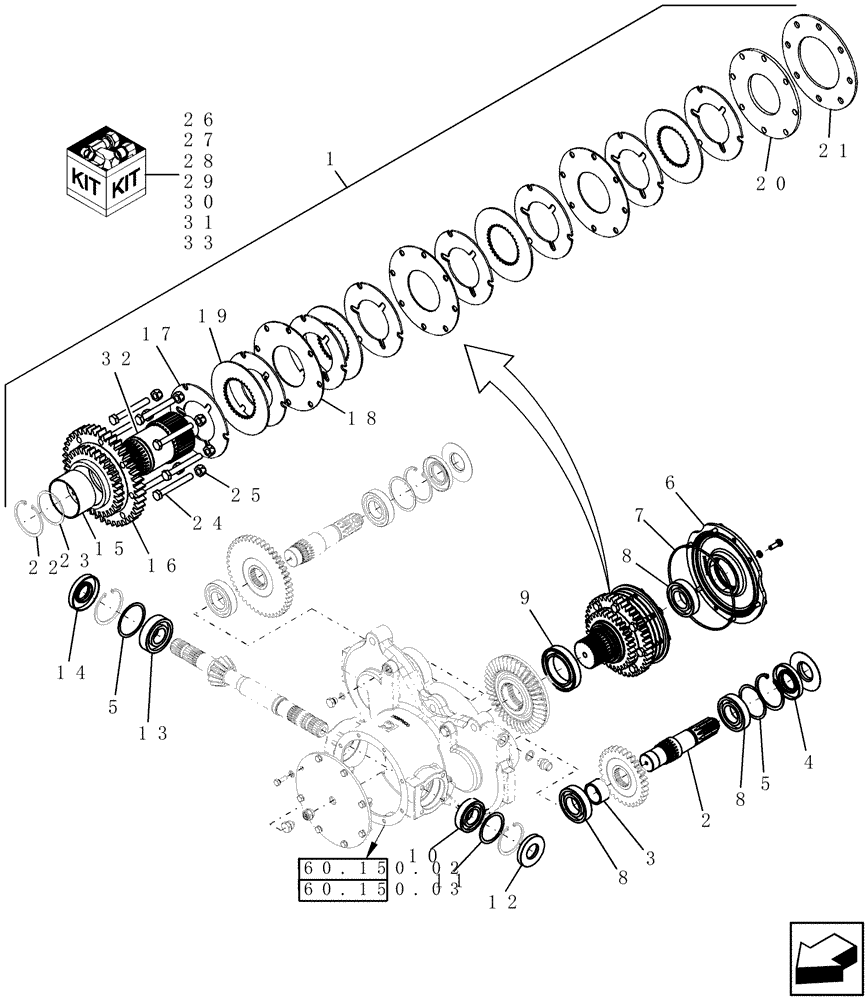

Запчасти Case IH 8120 (60.150.10) - CLUTCH, FRICTION DISC (60) - PRODUCT FEEDING

1

87703798

CLUTCH ASSEMBLY

1шт.

Prior to 3/1/09

1шт.

Used W/1000 RPM Gearbox 87696851

1шт.

1

84177496

CLUTCH ASSEMBLY

From 3/1/09, Used W/700 RPM Gearbox 84177487, NLA -- ORDER Complete Clutch 84224785

1шт.

84177496C

CORE-CLUTCH ASSEMBLY

CORE-CLUTCH ASSY Return Number, CLUTCH ASSY. - for N.A. Only

1шт.

2

87536812

SHAFT

1шт.

3

87536813

SPACER

1шт.

4

87612665

OIL SEAL,38.3mm ID x 80mm OD x 10mm Thk

1шт.

5

87282025

SHIM KIT

2шт.

6

87696846

COVER

1шт.

7

87345122

O-RING,0.139" Thk x 7.984" ID, -266, Cl 7, 75 Duro

.139" X 7.984"

1шт.

8

301164

BALL BEARING,40mm ID x 80mm OD x 18mm Thk

3шт.

9

5181866

BALL BEARING,65mm ID x 100mm OD x 18mm W

1шт.

10

37203

BALL BEARING,34.99mm ID x 72mm OD x 17mm W

1шт.

11

87282023

SHIM KIT

1шт.

12

87612666

OIL SEAL,35mm ID x 72mm OD x 10mm Thk

1шт.

13

210048

BALL BEARING,35mm ID x 80mm OD x 21mm W

1шт.

14

87612667

OIL SEAL,33.3mm ID x 80mm OD x 12mm Thk

1шт.

15

NSS

NOT SOLD SEPARAT

Bushing

1шт.

16

87696843

GEAR

Set; Incl Ref 15

1шт.

Prior to 3/1/09

1шт.

Part of Clutch 87703798

1шт.

16

87725350

GEAR SET

Incl Ref 15

1шт.

From 3/1/09

1шт.

Part of Clutch 84177496

1шт.

17

87536805

PLATE

NLA, Order Complete Clutch Assy Per Serial

8шт.

18

87536807

PLATE

External Separator

3шт.

19

87536806

PLATE

Internal Separator

4шт.

20

87536808

PLATE

1шт.

21

87536809

BELLEVILLE SPRING

1шт.

22

300636

SNAP RING,M70, External

1шт.

23

87536804

THRUST WASHER,70.3mm ID x 82mm OD x 4mm Thk

1шт.

24

120073

BOLT,Hex, M10 x 86.58mm, Cl 8.8

8шт.

25

100037

LOCK NUT,M10 x 1.5, Cl 8

8шт.

26

87619913

SERVICE KIT

Friction Slip Clutch; Incl Refs 1, 6, 7, & 8, Plus Instructions

1шт.

27

87536816

SHAFT ASSY.

Rock Trap; Incl Refs 2, 3, 4, & 5

1шт.

28

87621731

SERVICE KIT

Rebuild; Incl Refs 5 (1), 8 (2), 9 (1), 10 (1), 11 (1), 12 (1), 13 (1), & 14 (1)

1шт.

29

87624260

SERVICE KIT

Friction Slip Clutch, Complete; Incl Ref 26 & 28

1шт.

W/O Rock Trap

1шт.

30

87624261

SERVICE KIT

Friction Slip Clutch, Complete; Incl Ref 26, 27, & 28

1шт.

W/Rock Trap

1шт.

31

87624259

SERVICE KIT

Friction Slip Clutch; Incl Ref 26 & 27

1шт.

W/Rock Trap

1шт.

32

87536803

SHAFT

1шт.

33

84177488

REPAIR KIT

700 RPM Beater Drive Conversion; Incl Ref 16 (87725350), & Gear 87282001

1шт.
