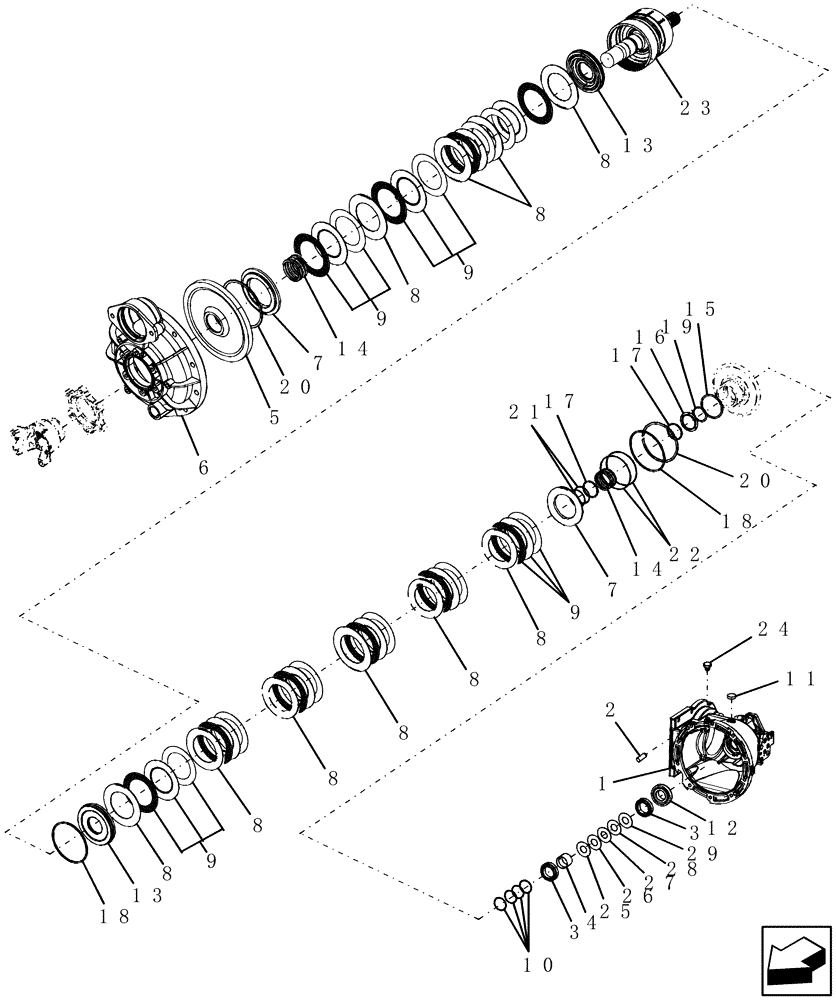

Запчасти Case IH 8120 (60.150.06) - GEARBOX, HEADER/FEEDER - FIXED SPEED, OUTPUT HALF (60) - PRODUCT FEEDING

1

87442523

HOUSING

1шт.

2

837-12030

DOWEL,M12 x 30mm OAL

2шт.

3

87445164

TAPERED BEARING,45mm ID x 68mm OD x 15mm W

2шт.

4

87445165

SPACER

1шт.

5

87445172

GEAR

1шт.

6

87442520

CASE

1шт.

7

345336A1

CLUTCH DRIVING PLATE

2шт.

8

345335A2

PLATE

10шт.

9

345334A1

FACING

10шт.

May be Used Interchangeably

1шт.

9

84159803

PLATE

10шт.

May be Used Interchangeably

1шт.

10

A188653

SEALING RING

SEALRING

4шт.

11

220064A1

PLUG,M14 x 1.5, ORB

1шт.

11

641-1330

PLUG,M30, Tapered

1шт.

12

3142394R91

TAPERED BEARING

1шт.

13

345005A1

PISTON

2шт.

14

228833A1

SPRING

2шт.

15

257277A1

SEALING RING,Locking, 79.8mm ID x 89.2mm OD x 3.5mm Thk

SEALRING

1шт.

16

232867A1

RETAINER

1шт.

17

235660A1

SEAL,54.4mm ID x 60.75mm OD x 2.98mm Thk

2шт.

18

329896A1

SEAL,128.35mm ID x 135.63mm OD x 2.92mm Thk

2шт.

19

800-1152

SNAP RING,M52, External

1шт.

20

345337A1

RING

2шт.

21

238-5141

O-RING,0.103" Thk x 2.3" ID, -141, Cl 5, 75 Duro

2шт.

22

238-5158

O-RING,0.103" Thk x 4.737" ID, -158, Cl 5, 75 Duro

2шт.

23

87442525

SHAFT

1шт.

24

220064A1

PLUG,M14 x 1.5, ORB

1шт.

25

87445166

SHIM

1шт.

26

87445167

SHIM

1шт.

27

87445168

SHIM

1шт.

28

87445169

SHIM

1шт.

29

87445170

SHIM

1шт.
