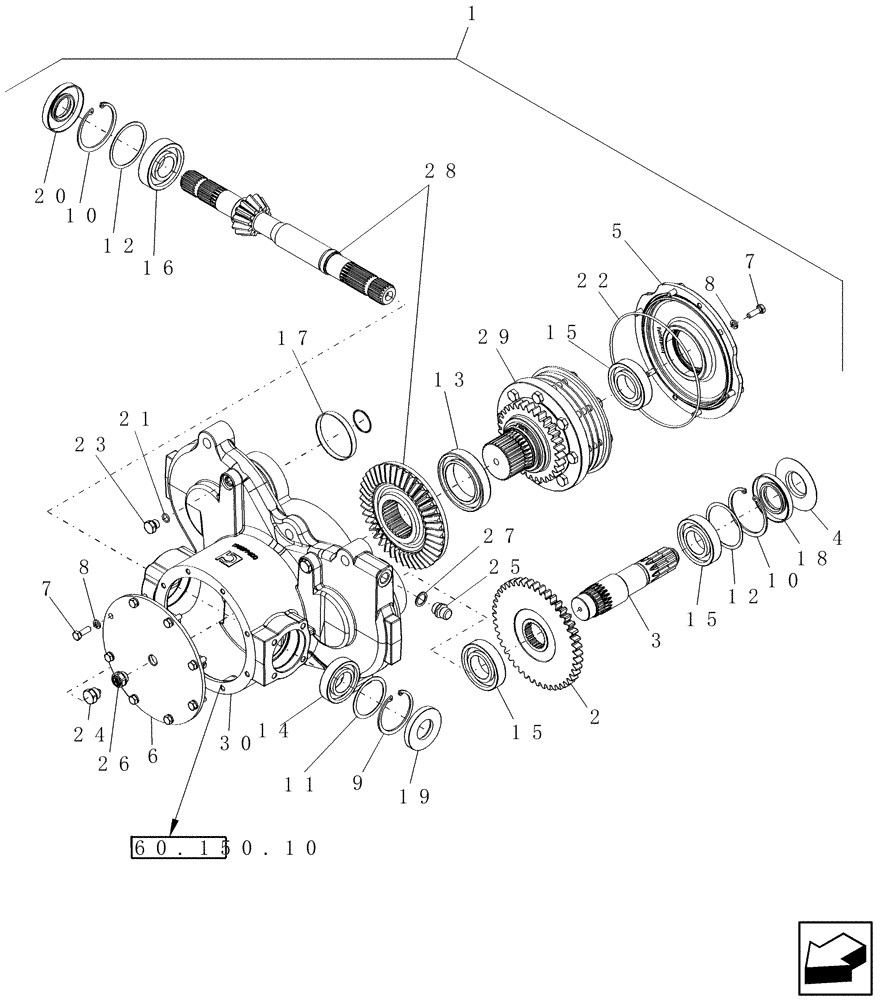

Запчасти Case IH 8120 (60.150.03[01]) - GEARBOX, FEEDER CONVEYOR DRIVE, WITHOUT ROCK TRAP, BSN YAG209363 (60) - PRODUCT FEEDING

1

87696849

GEARBOX ASSY

1шт.

84224787R

REMAN-GEARBOX

7120 (9/08-2/12),8120 (9/08-),Reman for New P/N 87696849

1шт.

84224787C

CORE-GEARBOX

Return Number

1шт.

2

87696844

GEAR

40T

1шт.

3

87282003

SHAFT

1шт.

4

87282006

GUARD

1шт.

5

87696846

COVER

1шт.

6

87282008

COVER

1шт.

7

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

14шт.

8

83990583

LOCK WASHER,M8 x 14.8mm OD x 2.1mm Thk

14шт.

9

370018

SNAP RING,M72, Internal

1шт.

10

300633

SNAP RING,M80, Internal

2шт.

11

87282023

SHIM KIT

1шт.

12

87282025

SHIM KIT

2шт.

13

5181866

BALL BEARING,65mm ID x 100mm OD x 18mm W

1шт.

14

37203

BALL BEARING,34.99mm ID x 72mm OD x 17mm W

1шт.

15

301164

BALL BEARING,40mm ID x 80mm OD x 18mm Thk

3шт.

16

210048

BALL BEARING,35mm ID x 80mm OD x 21mm W

1шт.

17

87282017

PLUG,80mm OD x 10mm Thk

1шт.

18

87612665

OIL SEAL,38.3mm ID x 80mm OD x 10mm Thk

1шт.

19

87612666

OIL SEAL,35mm ID x 72mm OD x 10mm Thk

1шт.

20

87612667

OIL SEAL,33.3mm ID x 80mm OD x 12mm Thk

1шт.

21

128999

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

2шт.

22

87345122

O-RING,0.139" Thk x 7.984" ID, -266, Cl 7, 75 Duro

.125 x 8"

1шт.

23

220064A1

PLUG,M14 x 1.5, ORB

2шт.

24

87282043

MAGNETIC PLUG

1шт.

25

87282044

PLUG,M18 x 1.5, 28mm L

1шт.

26

87282045

SIGHTGLASS

1шт.

27

3051337R1

SEALING RING,M18 x 24mm OD x 1.5mm Thk

1шт.

28

87282018

GEAR SET

1шт.

29

87703798

CLUTCH ASSEMBLY

1шт.

30

87696847

HOUSING

1шт.
