Запчасти Case IH 8120 (60.110.21) - DIA HARVEST KIT, NON STONE TRAP (60) - PRODUCT FEEDING

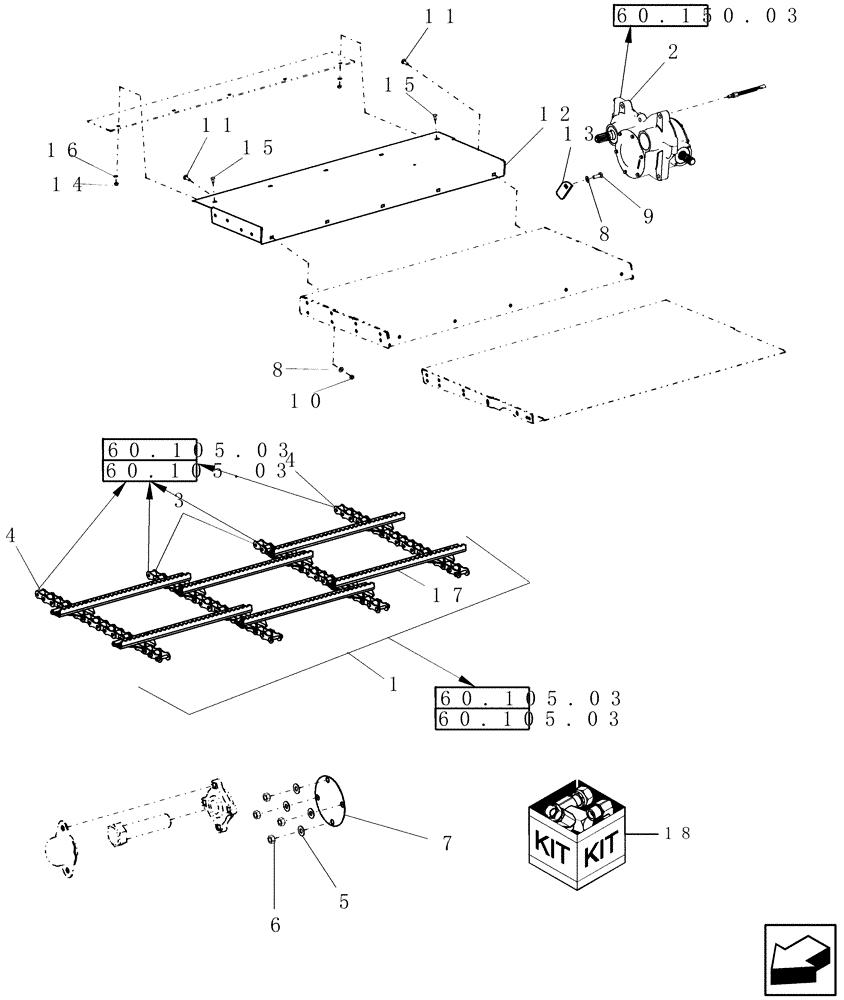

Схема запчастей Case IH 8120 - (60.110.21) - DIA HARVEST KIT, NON STONE TRAP (60) - PRODUCT FEEDING
13
17
15
5
4
9
11
6
10
4
11
8
14
18
12
7
3
15
60.150.03
60.105.03
60.105.03
60.105.03
60.105.03
2
16
8
1

Артикул

Название

Примечание

Количество

1

87736377

CHAIN (AG)

Assy

1шт.

1

84180958

CHAIN (AG)

Assy, Replaces 87736377

1шт.

2

87696849

GEARBOX ASSY

w/o Stone Trap

1шт.

84224787R

REMAN-GEARBOX

7120 (9/08-2/12),8120 (9/08-),Reman for New P/N 87696849

1шт.

84224787C

CORE-GEARBOX

Return Number

1шт.

3

87736379

CHAIN (AG),CA557, 15 Links x 41.4mm = 621mm

Inner

2шт.

4

87736378

CHAIN (AG),CA557, 15 Links x 41.4mm = 621mm

Outer

2шт.

5

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

4шт.

6

9706685

NUT,M12 x 1.75, Cl 8

4шт.

7

86995710

COVER

1шт.

8

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

9

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

1шт.

10

100016

NUT,M10 x 1.5, Cl 8

5шт.

11

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

5шт.

12

87533206

FLOOR

Rear

1шт.

12

87730307

FLOOR

Rear

1шт.

14

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

5шт.

15

84814921

HEX SOC SCREW,CSS, M8 x 25mm, Cl 10.9

5шт.

16

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

5шт.

17

87646011

SLAT

Component of 87736377 Chain Assy

6шт.

17

84179662

SLAT

Component of 84180958 Chain Assy

6шт.

18

87730302

DIA KIT, HARVESTER

1шт.

18

84223960

KIT

Non-Stone Trap; Incl Refs 2 Thru 17, Plus Instructions

1шт.

Выбрано товаров: 23
