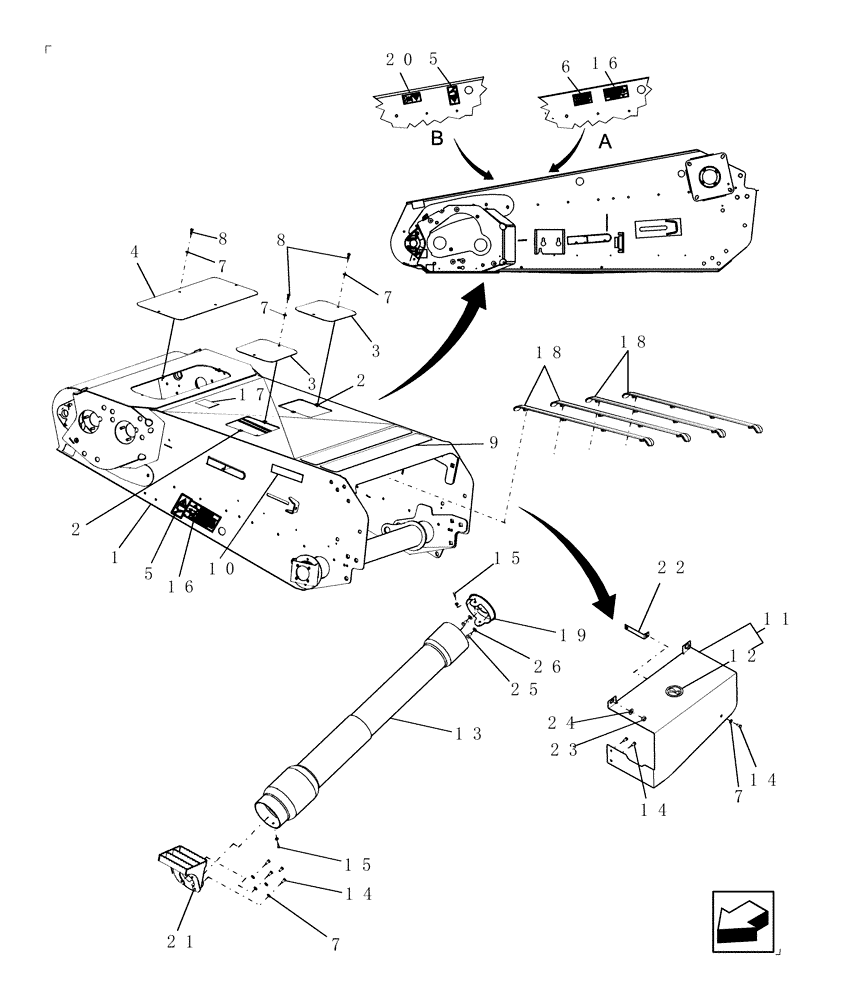

Запчасти Case IH 8120 (60.110.09) - FEEDER HOUSING AND SHIELDS (60) - PRODUCT FEEDING

1

87715221

HOUSING, GRAIN ELEVA

Kit, Feeder Housing, Decals & Ref 18

1шт.

NA

1шт.

1

87715222

HOUSING, GRAIN ELEVA

Kit, Feeder Housing, Decals & Ref 18

1шт.

EU & Latin America

1шт.

2

86508354

PUSH-ON NUT,M8 x 1.25

4шт.

3

86995571

COVER

2шт.

4

87283147

COVER

1шт.

5

84004735

CAUTION DECAL

WARNING

2шт.

EU & Latin America

1шт.

6

86626958

WARNING DECAL

English

1шт.

NA

1шт.

7

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

16шт.

8

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

12шт.

9

86995792

PAD,125mm W x 1270mm L

Anti-Skid

2шт.

10

86547782

REFLECTOR,YELLOW

Reflective Tape

2шт.

11

87284925

COVER ASSY

Includes Ref 12

1шт.

12

84432904

DECAL

No Step

1шт.

13

87106571

SHIELD

1шт.

14

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

6шт.

15

87041331

BOLT,Hex, M6 x 16mm, Cl 8.8

2шт.

16

86624774

DANGER DECAL

2шт.

NA

1шт.

17

86626958

WARNING DECAL

English

3шт.

NA

1шт.

17

84011345

DECAL

WARNING

3шт.

EU & Latin America

1шт.

18

86638209

STRIP

Feeder Chain, Plastic Wear

4шт.

19

87283856

BRACKET

1шт.

20

84011314

DECAL

WARNING

1шт.

EU & Latin America

1шт.

21

87616998

BRACKET

1шт.

22

NS

NOT SERVICED

Angle

1шт.

23

9706685

NUT,M12 x 1.75, Cl 8

2шт.

24

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

25

300383

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

4шт.

26

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.
