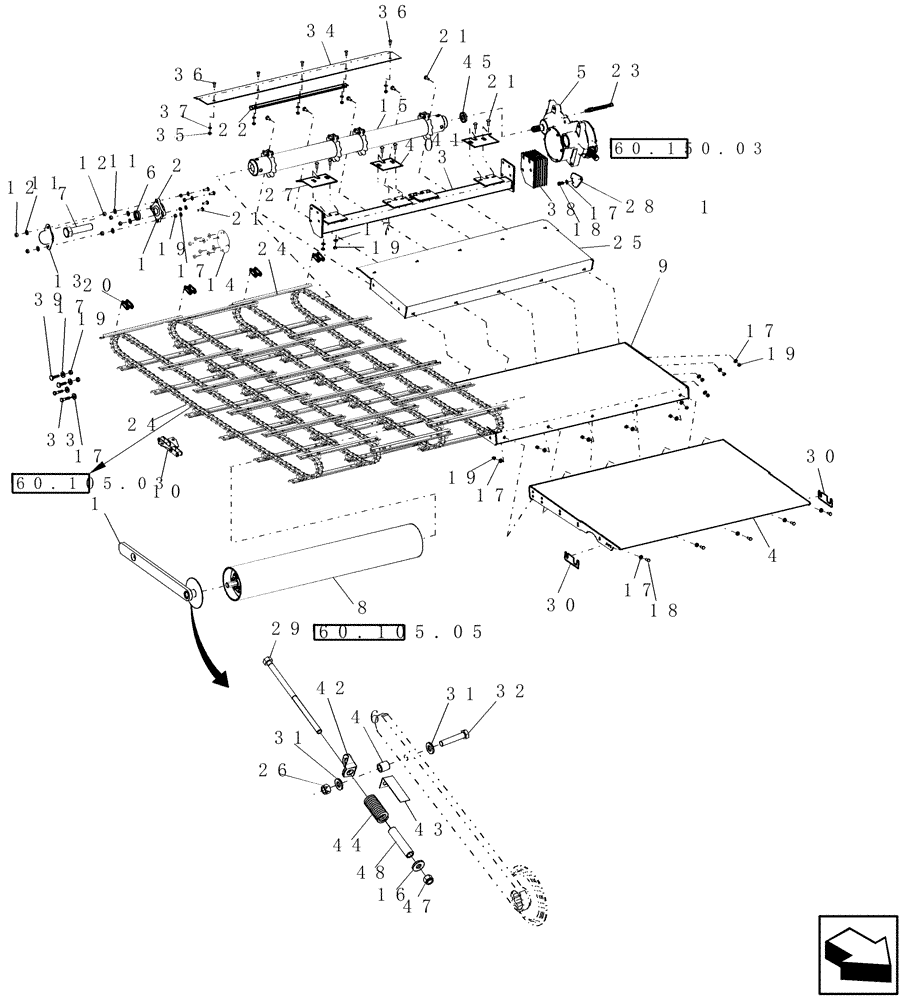

Запчасти Case IH 8120 (60.110.06[01]) - FEEDER FLOOR AND CHAINS - WITHOUT ROCK TRAP (60) - PRODUCT FEEDING

1

87660200

ARM ASSY.

2шт.

2

86995212

BEARING ASSY

1шт.

3

87667385

SUPPORT ASSY.

1шт.

4

84140379

FLOOR

1шт.

5

87696849

GEARBOX ASSY

1шт.

84224787R

REMAN-GEARBOX

8120 (9/08-),7120 (9/08-2/12),Reman for New P/N 87696849

1шт.

84224787C

CORE-GEARBOX

Return Number

1шт.

6

86997123

WASHER,40mm ID x 57mm OD x 10mm Thk

1шт.

7

86981357

BOLT,1.5" - 6 UNC STD Thread 17.8mm L

1шт.

8

NSS

NOT SOLD SEPARAT

See Page 60.105.05

1шт.

9

87282537

FLOOR

1шт.

9

84084681

DIA KIT, HARVESTER

Perforated Floor; Incl Instructions

1шт.

10

87283373

LINK,Chain, 3 Links x 41.4mm = 124.2mm

1шт.

11

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

10шт.

12

9706685

NUT,M12 x 1.75, Cl 8

10шт.

13

86996082

COVER

1шт.

14

86995710

COVER

1шт.

15

87673520

SPROCKET ASSY.

Incl Ref 45, Serial Range: -Y9G207601

1шт.

15

84166317

SPROCKET ASSY.

Incl Ref 45 (MY10 ), Serial Range: Y9G207601-YAG210200

1шт.

15

84414906

SPROCKET

Incl 45, Start Serial: YAG210201

1шт.

16

325594

WASHER,M17 x 40mm OD x 5mm Thk

2шт.

17

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

31шт.

18

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

6шт.

19

100016

NUT,M10 x 1.5, Cl 8

24шт.

20

87625526

LINK,41.4mm Pitch

4шт.

21

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

17шт.

22

87537644

CHANNEL

1шт.

23

87662555

SENSOR

Feeder Speed

1шт.

24

87646005

CHAIN (AG)

Standard; Z Shaped Slat, Serial Range: -Y9G207601

1шт.

25

87730307

FLOOR

1шт.

26

86000441

NUT,M16 x 2.0, Cl 8

2шт.

27

84219816

PLATE

R.H., Start Serial: Y9G207601

1шт.

27

84158112

PLATE

R.H., Serial Range: -Y9G207601

1шт.

28

87281862

PLATE

1шт.

29

84155550

THREADED ROD

2шт.

30

87537643

SHIM,50mm OD x 1.32mm Thk

2шт.

31

394631

WASHER,17mm ID x 34mm OD x 4mm Thk

4шт.

32

86577946

BOLT,Hex, M16 x 80mm x 10.9

2шт.

33

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

2шт.

34

87533210

SEAL

1шт.

35

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

5шт.

36

84814921

HEX SOC SCREW,CSS, M8 x 25mm, Cl 10.9

5шт.

37

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

5шт.

38

87667405

SHIM,140mm OD x 1.2mm Thk

8шт.

39

374892

CARRIAGE BOLT,M10 x 1.5 x 40mm, Cl 8.8

2шт.

40

84219814

PLATE

Center

2шт.

40

84158107

PLATE

Center, Start Serial: Y9G207601

2шт.

41

84302887

PLATE

L.H., Serial Range: -Y9G207601

1шт.

41

84158109

PLATE

L.H., Serial Range: Y9G207601-YAG210201

1шт.

41

84219812

PLATE

L.H., Start Serial: YAG210201

1шт.

42

84265054

BRACKET

Model Year 11, Start Serial: YAG209900

2шт.

42

84163072

BRACKET

Flat, Serial Range: -YAG209900

2шт.

43

84163120

BRACKET

Indicator

2шт.

44

693887

SPRING

Compression

2шт.

45

87109491

OIL SEAL

1шт.

46

87021332

SPACER,17mm ID x 25mm OD x 27mm L

1шт.

47

412066

NUT,M16 x 2.0, Cl 8

2шт.

48

84157715

TUBE

Spacer

2шт.

49

1324294C1

LINK,40.893mm Pitch

4шт.

49

84257096

LINK,41.4mm Pitch, Threaded Pin

Model Year 11

4шт.

50

87109491

OIL SEAL

Model Year 11

1шт.

40

84219814

PLATE

Center, Start Year: 01-APR-09, Start Serial: Y9G207601

2шт.

40

84158107

PLATE

Center, Years: -01-APR-09, Serial Range: -Y9G207601

2шт.
