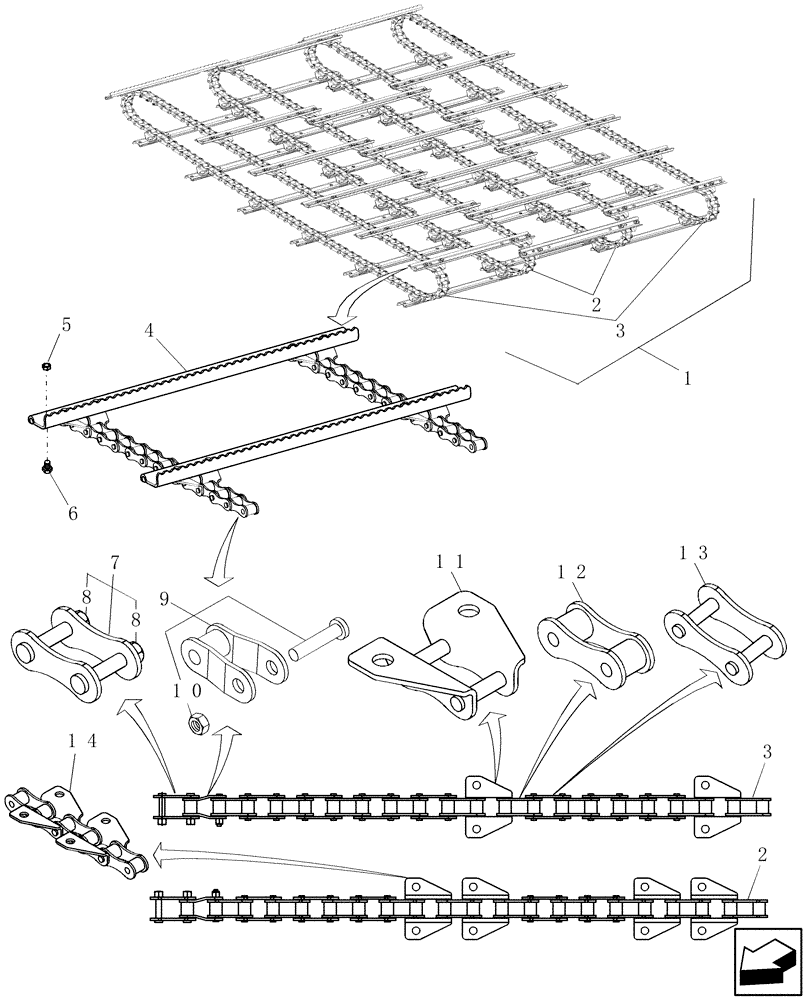

Запчасти Case IH 8120 (60.105.03) - CHAIN ASSY AND FEEDER SLATS (60) - PRODUCT FEEDING

1

87646015

CHAIN (AG)

1шт.

Rock Trap

1шт.

1

87646005

CHAIN (AG)

1шт.

Non Rock Trap

1шт.

2

87646014

CHAIN (AG),CA557, 101 Links x 41.4mm = 4181.4mm

Inner

2шт.

Rock Trap

1шт.

2

87646003

CHAIN (AG),CA557, 114 Links x 41.4mm = 4719.6mm

Inner

2шт.

Non-Rock Trap

1шт.

3

87625522

CHAIN (AG),CA557, 101 Links x 41.4mm = 4181.4mm

Outer

2шт.

Rock Trap

1шт.

3

87625524

CHAIN (AG),CA557, 114 Links x 41.4mm = 4719.6mm

Outer

2шт.

Non-Rock Trap

1шт.

4

87646011

SLAT

Rock Trap (36), Non-Rock Trap (42)

1шт.

5

86512554

NUT,M10 x 1.5, Cl 10

Rock Trap (144), Non-Rock Trap (168)

1шт.

6

9861444

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9

Rock Trap (144), Non-Rock Trap (168)

1шт.

7

87625526

LINK,41.4mm Pitch

2шт.

8

86625061

NUT,1/4"-20, GB

4шт.

9

86974313

LINK,41.4mm Pitch

2шт.

Rock Trap Only

1шт.

10

86514335

LOCK NUT

2шт.

Rock Trap Only

1шт.

11

87283352

CONNECTING LINK

Rock Trap (36), Non-Rock Trap (42)

1шт.

12

87283351

LINK,Chain, 41.4mm Pitch

Rock Trap (100), Non-Rock Trap (114)

1шт.

13

87283349

LINK,41.4mm Pitch

Rock Trap (62), Non-Rock Trap (70)

1шт.

14

87736384

LINK,Chain, 3 Links x 41.4mm = 124.2mm

87646014(12), 87646003(14)

1шт.
