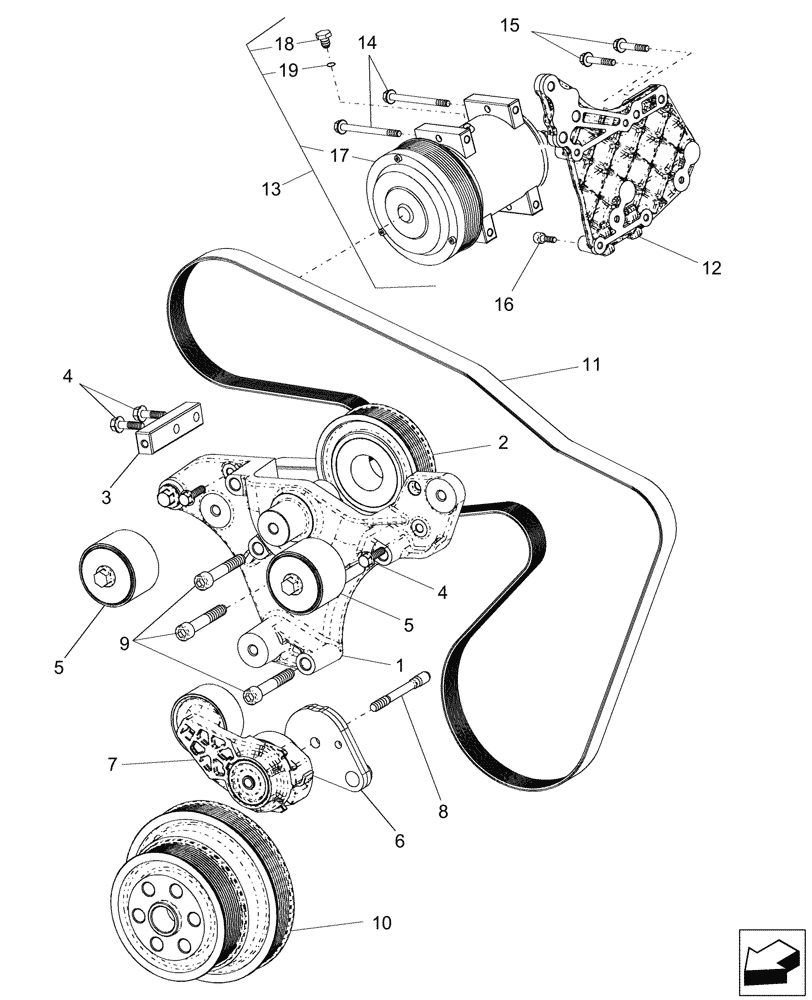

Запчасти Case IH 8120 (50.200.07) - A/C COMPRESSOR AND DRIVE - 8120/8120(LA) (50) - CAB CLIMATE CONTROL

1

504078323

BODY

Support

1шт.

2

504079721

PULLEY

1шт.

3

504078628

SPACER

1шт.

4

16673835

BOLT,Hex, M8 x 30mm

4шт.

5

504078065

IDLER

2шт.

6

504079738

SPACER

1шт.

7

5801728126

BELT TENSIONER

1шт.

8

504079727

STUD

1шт.

9

16711235

BOLT,M10 x 1.25 x 70mm

4шт.

10

504077386

PULLEY

1шт.

11

87282333

V-BELT,28.28 mm W x 2515.00 mm L

Alternator Drive Belt

1шт.

EU Only

1шт.

11

87282333

V-BELT,28.28 mm W x 2515.00 mm L

A/C/ ALT/Water Compressor Drive

1шт.

For NA Only

1шт.

12

504078148

HOLDER

1шт.

13

86993463

AIRCOND. COMPRESSOR

Includes Ref 17, 18 & 19

1шт.

13

86993463GV

AIRCOND. COMPRESSOR

Value

1шт.

13

86993463R

REMAN-A/C COMPRESSOR

Inc.- 4 Cross Bolt Mounting Lugs, w/6 In. OD Pulley For 8 Rib Poly-V Belt

1шт.

13

86993463C

CORE-A/C COMPRESSOR

Return Number

1шт.

14

16598325

BOLT,Hex, M8 x 100mm

4шт.

15

16586525

BOLT,Hex, M8 x 30mm, Cl 8.8

2шт.

16

504080093

BOLT

M7 x 1.0 x 16 mm

2шт.

17

403585A1

CLUTCH

1шт.

18

A49667

PLUG

1шт.

19

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

1шт.
