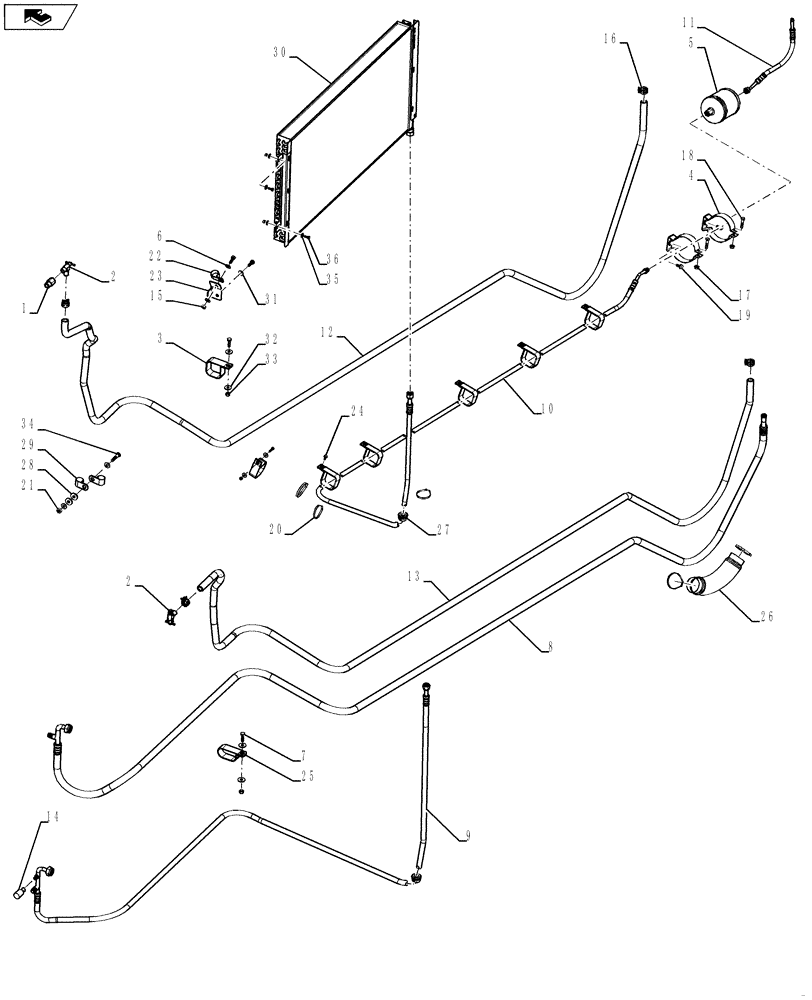

Запчасти Case IH 8120 (50.200.04[04]) - A/C & HEATER HOSES 8120/8120LA MY 11 (50) - CAB CLIMATE CONTROL

1

84334474

FITTING,1/2"-14 M x 3/8"-18 Fem

1шт.

2

301803R1

SHUT-OFF VALVE

2шт.

3

87000226

HOSE CLAMP

8шт.

4

87105841

BRACKET

2шт.

5

87105840

RECEIVER-DRYER

1шт.

6

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

3шт.

7

120100

BOLT,M6 x 20mm, Cl 8.8

3шт.

8

87736746

A/C HOSE

Suction Port Of Compressor To Cab

1шт.

9

87684281

A/C HOSE

HOSE,LARGE Dischage Of Compressor To Condenser

1шт.

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

Used With Ref 9

1шт.

10

87684283

LARGE HOSE

HOSE,LARGE Condenser To Drier

1шт.

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

Used With Ref 10

1шт.

11

87736742

HOSE ASSY.

Drier To Cab

1шт.

12

87672397

HEATER HOSE,15.50 mm ID, 5104.00 mm

HEATER HOSE, , Heater Supply 15.50 mm ID, 5104.00 mm

1шт.

13

87672399

HEATER HOSE,15.50 mm ID, 4508.00 mm

Heater Return To Engine To Cab

1шт.

14

87000227

SWITCH, A/C HIGH PRE

1шт.

15

9706690

NUT,M8 x 1.25, Cl 8

3шт.

16

87000223

HOSE CLAMP,22mm ID Static x 15mm W, Spring Type

4шт.

17

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

2шт.

18

412479

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.

19

86978776

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 3/4"

2шт.

20

529070

CABLE TIE,368.3mm L

CABLE STRAP

5шт.

21

100016

NUT,M10 x 1.5, Cl 8

1шт.

22

700514

CLAMP,3.8mm, Coat, M8 Bolt

1шт.

23

87703161

BRACKET

1шт.

24

412093

SELF-TAP SCREW

1шт.

25

470375C1

CLAMP,1", Insul, 3/8" Bolt

1шт.

26

84607268

SLEEVE

1шт.

27

86976974

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

2шт.

28

86592700

WASHER,10.5mm ID x 28mm OD x 4mm Thk

2шт.

29

86625038

CLAMP,25.4mm, Coat, 13.5mm Bolt Hole, P Type

2шт.

30

47475783

COOLER ASSY.

Updated NEW

1шт.

31

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

32

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

6шт.

33

353308

NUT,M6 x 1.0, Cl 8

3шт.

34

120068

BOLT,Hex, M10 x 40mm, Cl 8.8

1шт.

35

412650

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.4mm Thk

4шт.

36

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.
