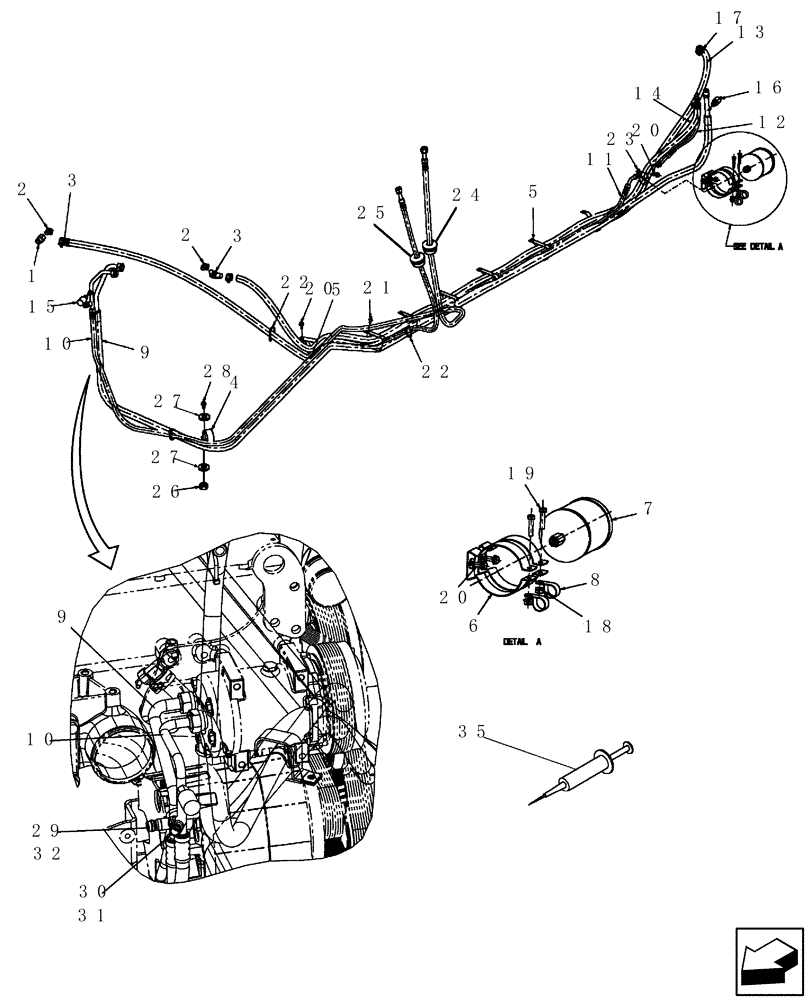

Запчасти Case IH 8120 (50.200.04[02]) - A/C & HEATER HOSES - 8120/8120(LA) (50) - CAB CLIMATE CONTROL

1

84334474

FITTING,1/2"-14 M x 3/8"-18 Fem

1шт.

2

3905214

ELBOW

45°

2шт.

3

301803R1

SHUT-OFF VALVE

2шт.

4

470375C1

CLAMP,1", Insul, 3/8" Bolt

1шт.

5

87000226

HOSE CLAMP

7шт.

6

87105841

BRACKET

Clamp, Hose

2шт.

7

87105840

RECEIVER-DRYER

1шт.

7

87280717

RECEIVER-DRYER

1шт.

Scandinavia Only

1шт.

8

86637977

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

9

87736747

A/C HOSE

A/C, Cab To Compressor Suction; L = 5803 mm Includes Refs 29 & 32

1шт.

10

87548074

HOSE

To Discharge Port on Compressor; L = 3760 Includes Refs 30 & 31

1шт.

11

86997294

A/C HOSE

Condenser To Dryer

1шт.

12

87736742

HOSE ASSY.

L = 475 mm

1шт.

13

86997299

HEATER HOSE,15.5mm ID x 15240mm L

Supply, 196.2"

1шт.

Cut to Fit

1шт.

14

86997299

HEATER HOSE,15.5mm ID x 15240mm L

Return, 179"

1шт.

Cut to Fit

1шт.

15

87000227

SWITCH, A/C HIGH PRE

1шт.

16

87000220

HOSE CLAMP

1шт.

17

87000223

HOSE CLAMP,22mm ID Static x 15mm W, Spring Type

4шт.

18

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

2шт.

19

412479

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.

20

86978776

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 3/4"

5/ARшт.

21

412093

SELF-TAP SCREW

M6 x 12

1шт.

22

87000312

CABLE TIE,4.8mm W x 203.2mm OAL, Nylon

CABLE STRAP

3шт.

23

87589867

FLUID

Dye, Leak Detection

1шт.

24

86976974

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

1шт.

25

87107420

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

1шт.

26

9706690

NUT,M8 x 1.25, Cl 8

1шт.

27

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

28

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

1шт.

29

86511146

VALVE,Shrader

Valve

1шт.

30

86511147

CONTROL VALVE

CHARGE HIGH SIDE

1шт.

31

86511148

CAP

1шт.

32

86511149

CAP

1шт.
