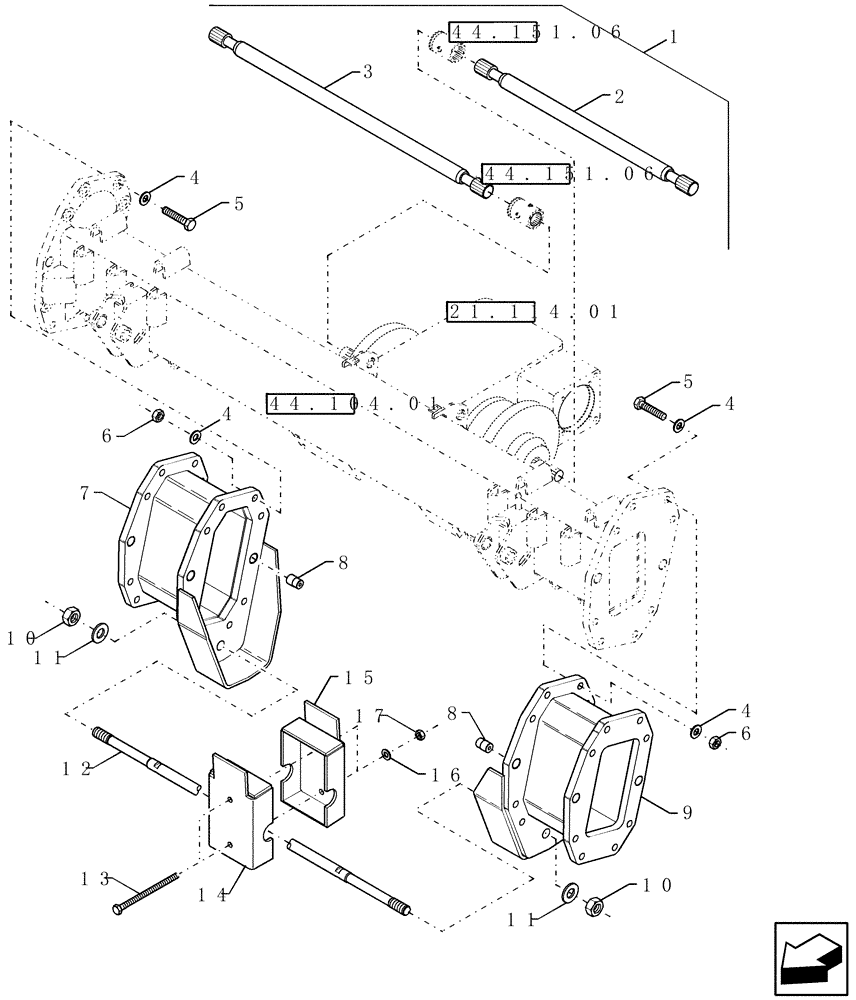

Запчасти Case IH 8120 (44.101.01[02]) - DIA, HARVEST KITS, FRONT AXLE EXTENSION - 8120/8120(LA), 9120 (44) - WHEELS

1

84095964

DIA KIT, HARVESTER

Axle Extensions, 265 mm, For Planetary Final Drive

1шт.

1

84095959

DIA KIT, HARVESTER

Axle Extensions, 316 mm, For Planetary Final Drive

1шт.

2

84440967

DRIVE SHAFT

Transmission Half-shaft, L.H., For 265 mm Extension, For Planetary Final Drive, 928mm OAL

1шт.

2

84440951

DRIVE SHAFT

Transmission Half-shaft, L.H., For 316 mm Extension, For Planetary Final Drive, 979mm OAL

1шт.

3

84440974

DRIVE SHAFT

Transmission Half-shaft, R.H., For 265 mm Extension, For Planetary Final Drive, 1188mm OAL

1шт.

3

84440957

DRIVE SHAFT

Transmission Half-shaft, R.H., For 316 mm Extension, For Planetary Final Drive, 1239mm OAL

1шт.

4

394632

WASHER,21mm ID x 40mm OD x 4mm Thk

32шт.

5

87024335

BOLT,Hex, M20 x 80mm, Cl 10.9

16шт.

6

87024336

NUT,M20 x 2.5, Cl 10

16шт.

7

87108187

EXTENSION

RH; 265mm

1шт.

7

87108166

EXTENSION

RH, 316mm

1шт.

8

80626826

PIN

4шт.

9

87108189

EXTENSION

LH, 265mm

1шт.

9

87108164

EXTENSION

LH, 316mm

1шт.

10

80300852

NUT

2шт.

11

80140184

WASHER,31mm ID x 50mm OD x 3mm Thk

2шт.

12

84989399

ROD

1шт.

13

382358

BOLT,Hex, M16 x 2 x 200mm, Cl 8.8

2шт.

14

84075648

CLAMP

1шт.

15

84075650

CLAMP

1шт.

16

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

2шт.

17

825-1416

NUT,M16, Cl 8

2шт.
