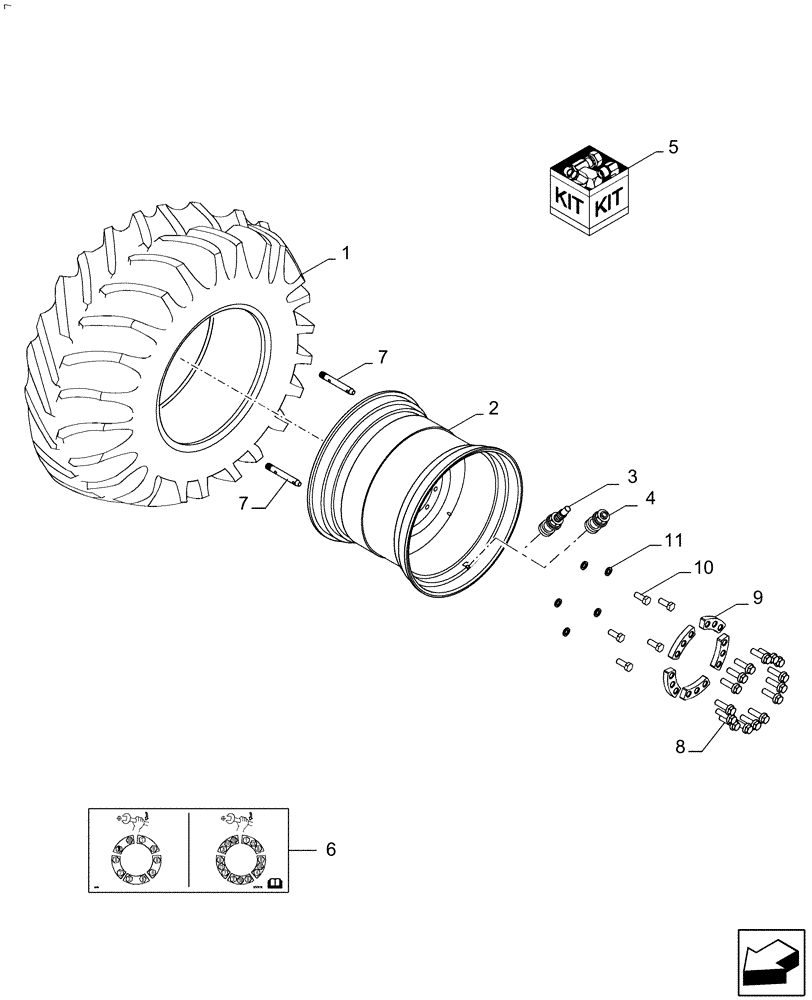

Запчасти Case IH 8120 (44.100.04) - WHEELS, FRONT - 32 X DW27A (DELAYED) (44) - WHEELS

1

PL

PROCURE LOCALLY

Tire

1шт.

2

87692466

WHEEL ASSY.

32 x DW27A

1шт.

3

87106339

VALVE STEM

1шт.

4

87106340

PLUG

For Tubeless Tire

1шт.

5

87327483

SERVICE KIT

Fixation; Incl Refs 8(30) & 9(10)

1шт.

6

87570139

DECAL

Bolt Torquing Sequence

1шт.

7

87283521

STUD,M22 x 180

2шт.

8

87327478

BOLT,Flange, M22 x 75mm, Cl 12.9

15шт.

9

87598803

PLATE

5шт.

10

87340028

BOLT,Hex, M22 x 1.5 x 55mm, Cl 10.9

5шт.

11

87327481

WASHER,23mm ID x 37mm OD x 5mm Thk

5шт.
