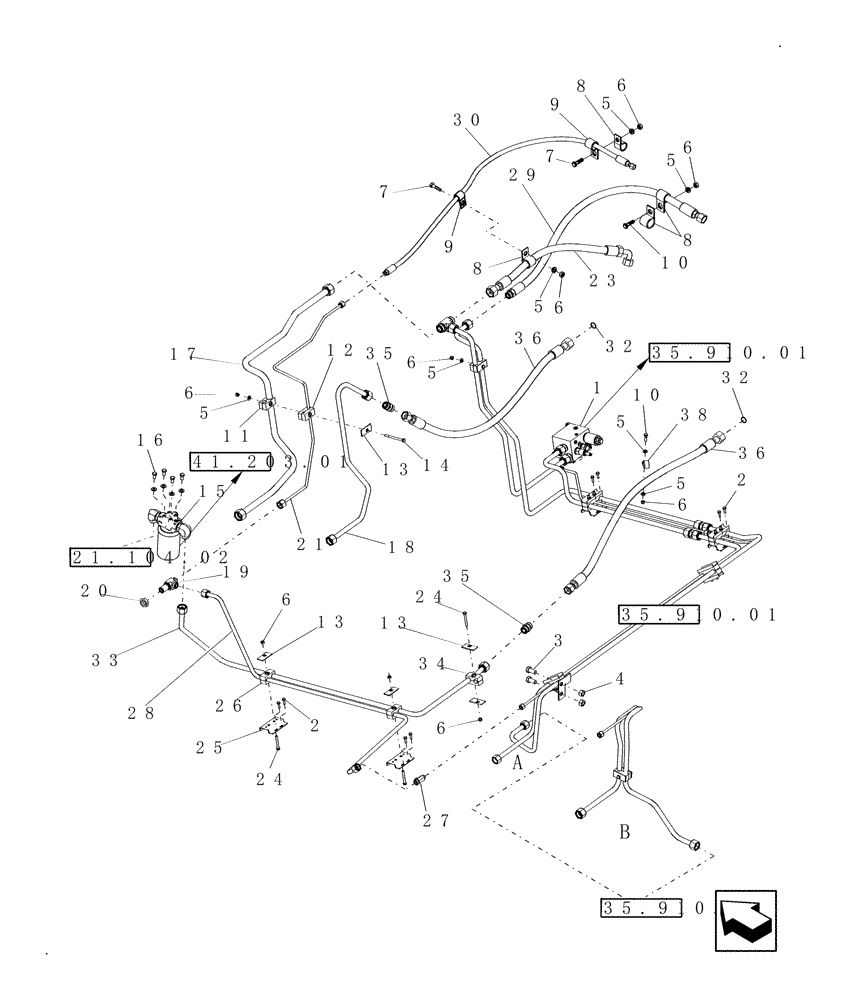

Запчасти Case IH 8120 (35.752.03[02]) - HYDRAULICS - SPREADER AND ROTARY SCREEN DRIVE - 8120/8120(LA) (35) - HYDRAULIC SYSTEMS

1

87107189

HYDRAULIC VALVE

Cleaning Fan

1шт.

2

87010469

SELF-TAP SCREW,Hex, M6.3 x 25mm

8шт.

3

43167

BOLT,Hex, M16 x 30mm, Cl 8.8, Full Thd

2шт.

4

100020

NUT,M16 x 2.0, Cl 8

2шт.

5

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

8шт.

6

86629542

NUT,M8 x 1.25, Cl 8.8

10шт.

7

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

8

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

4шт.

9

9706748

CLAMP,15.9mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

10

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

2шт.

11

87000146

CLAMP

1шт.

12

86988833

CLAMP,9.52mm x 9.52mm, Dual Clamp Block

1шт.

13

87000230

PLATE

7шт.

14

412215

BOLT,Hex, M8 x 1.25 x 100mm, Cl 8.8

1шт.

15

86998689

HYDRAULIC OIL FILTER

1шт.

16

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

4шт.

17

87000875

HYD TUBE,1" OD

Aux Cooler Return

1шт.

18

87563492

HYD TUBE,0.75" OD

Main Cooler Outlet

1шт.

19

86639081

TEE,1"-14 ORFS, Bulkhead

1шт.

20

86639085

BHD LOCK NUT,1"-14, Bulkhead

1шт.

21

87522515

HYD TUBE,0.375" OD

Drain

1шт.

22

87000142

CLAMP,2 Hoses

1шт.

23

87105715

FLEXIBLE HOSE

Aux Cooler Return

1шт.

24

120061

BOLT,Hex, M8 x 60mm L, Cl 8.8

4шт.

25

87109755

BRACKET

2шт.

26

87000144

CLAMP

2шт.

27

87109744

FITTING

1шт.

28

87397349

HYD TUBE,16mm OD x 1064.4mm OAL

Drain: Bulkhead To Tee

1шт.

29

87529196

FLEXIBLE HOSE

Spreader To Air Screen Motor

1шт.

30

87529198

FLEXIBLE HOSE

Air Screen Case Drain

1шт.

31

86566990

CABLE TIE,292mm OAL x 4.8mm W

CABLE STRAP

1шт.

32

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

2шт.

33

87563491

HYD TUBE,0.75" OD

Main Cooler Inlet

1шт.

34

87000140

CLAMP,Tube, 19.05mm

1шт.

35

84100407

UNION,1-3/16"-12 ORFS

2шт.

36

87397348

HOSE ASSY.

Main Cooler; L = 1048 mm

2шт.
