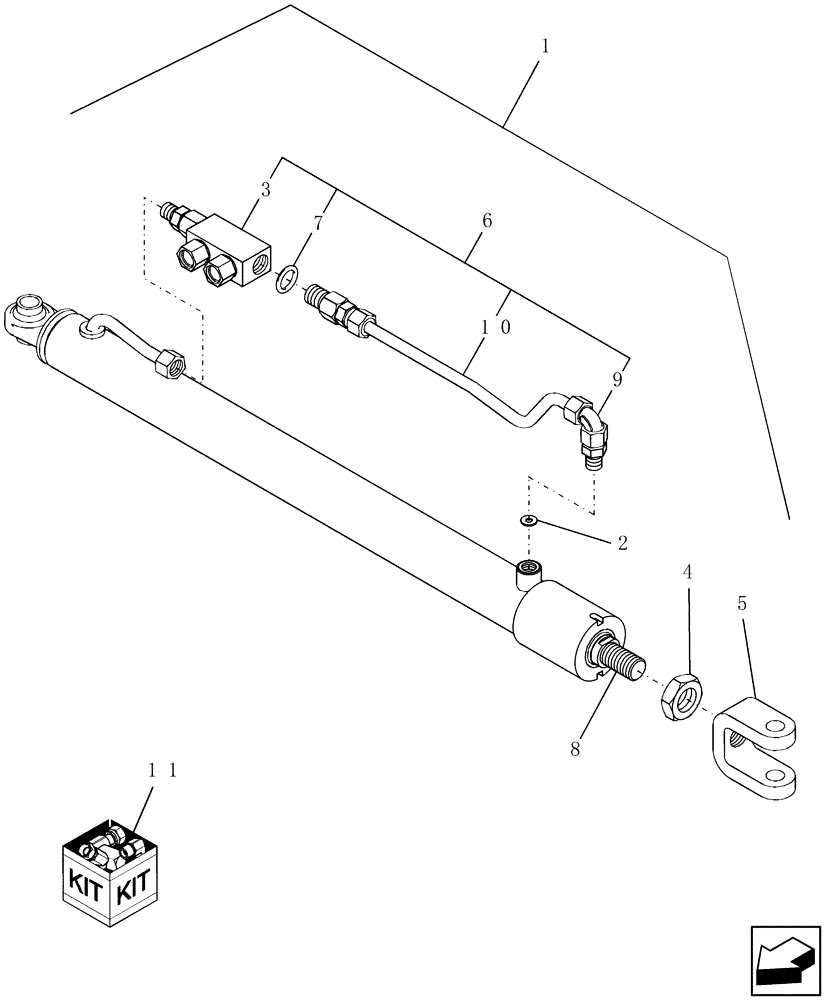

Запчасти Case IH 8120 (35.440.04) - HYDRAULIC CYLINDER, UNLOADING AUGER, SWING, (35) - HYDRAULIC SYSTEMS

1

87645216

HYDRAULIC CYLINDER

Unloading Auger, Swing, Serial Range: -YAG208435

1шт.

1

84126280R

REMAN-HYD CYLINDER

Unloading Auger, Swing, Serial Range: -YAG208435

1шт.

1

84126280C

CORE-HYD CYLINDER

Return Number

1шт.

1

84126280

HYDRAULIC CYLINDER,Double Acting, 40mm Rod, 591mm Stroke

Unloader Auger Swing, Start Serial: YAG208435

1шт.

1

84126280R

REMAN-HYD CYLINDER

Unloader Auger Swing, Start Serial: YAG208435

1шт.

1

84126280C

CORE-HYD CYLINDER

Return Number

1шт.

2

84219249

CONTROL VALVE

Orifice, Flow Regulator

1шт.

3

84220776

CONTROL VALVE,M20 x 1.5 x M20 x 1.5 x M18 x 1.5 x M18 x 1.5

1шт.

4

84022122

THIN NUT,M24 x 2.0, Cl 05

1шт.

5

87031322

YOKE

1шт.

6

84219274

CONTROL VALVE

Incl Refs 3, 7, 9 & 10

1шт.

7

722441

GASKET

1шт.

8

NSS

NOT SOLD SEPARAT

ROD; Dia = 40MM

1шт.

9

87719937

ADAPTER

Elbow, Seal NSS

1шт.

10

87735679

TUBE

& Elbow

1шт.

11

87691173

SEAL KIT

Services Cylinder 87645216, Serial Range: -YAG208435

1шт.

11

84218981

SEAL KIT

, Serial Range: YAG208435-`0

1шт.

Services Cylinder 84126280

1шт.
