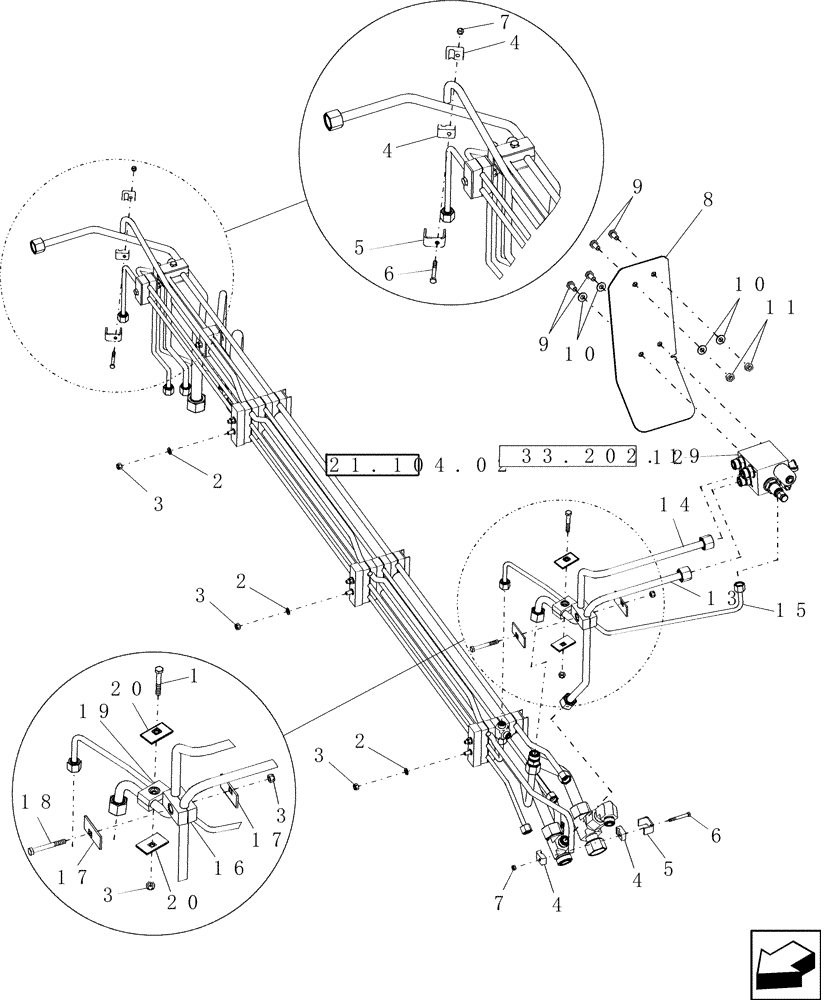

Запчасти Case IH 8120 (33.110.03) - HYDRAULIC TUBES - PARK VALVE (33) - BRAKES & CONTROLS

1

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

1шт.

2

140016

WASHER,M8 x 16mm OD x 1.6mm Thk

3шт.

3

832-46408

NUT,M8 x 1.25, Cl 8

5шт.

4

433008

CLAMP

4шт.

5

442340

SUPPORT

2шт.

6

120056

BOLT,M6 x 1.0 x 54.15mm, Cl 8.8

2шт.

7

353308

NUT,M6 x 1.0, Cl 8

2шт.

8

87280113

BRACKET

1шт.

8

87710647

BRACKET

1шт.

9

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

4шт.

10

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

11

100016

NUT,M10 x 1.5, Cl 8

2шт.

12

0C

ORDER COMPONENTS

Valve, Hydraulic, Park

1шт.

13

87710635

HYD TUBE,.625" OD

Valve Supply

1шт.

14

87710634

HYD TUBE,.625" OD

Drain

1шт.

15

87710633

TUBE,.375" OD

Regulated Pressure, Park Valve

1шт.

16

87000150

CLAMP,15.869mm ID

Tube

1шт.

17

87000230

PLATE

Clamp, Hose

2шт.

18

300510

BOLT,Hex, M8 x 65mm, Cl 8.8

1шт.

19

87000159

CLAMP

Tube

1шт.

20

72180326

PLATE

Clamp, Hose

2шт.
