Запчасти Case IH 8120 (31.114.04) - PTO, CLUTCHES & VALVES, ENGINE GEARBOX (31) - IMPLEMENT POWER TAKE OFF

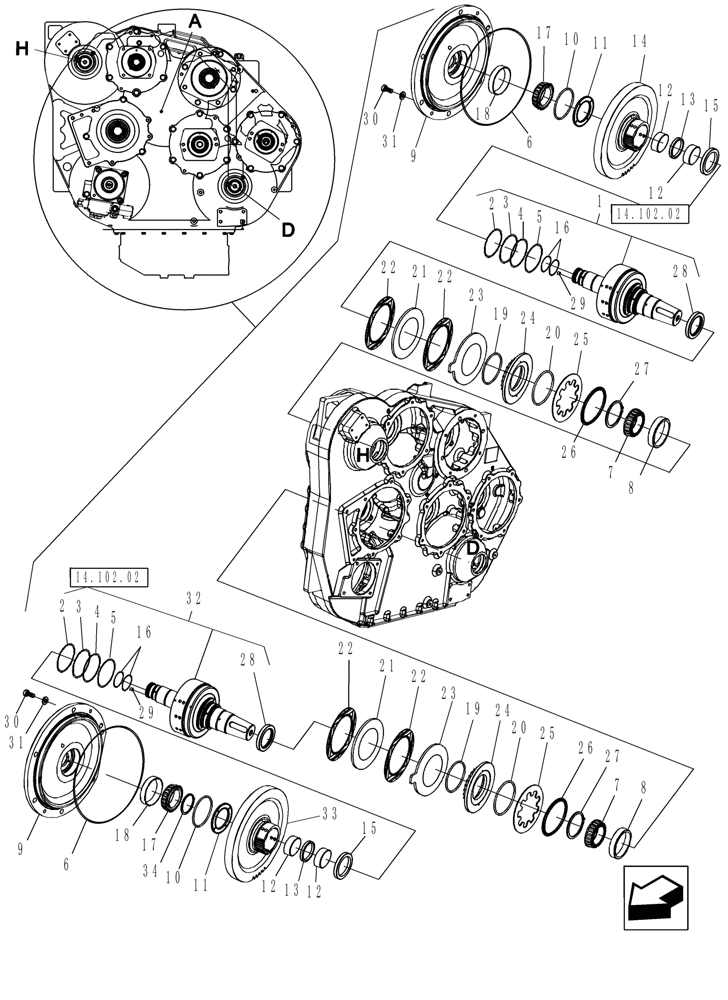

Схема запчастей Case IH 8120 - (31.114.04) - PTO, CLUTCHES & VALVES, ENGINE GEARBOX (31) - IMPLEMENT POWER TAKE OFF
9
25
16
29
14
19
6
14.102.02
14.102.02
8
31
23
4
27
26
18
19
1
31
20
11
26
25
3
22
32
7
9
34
12
10
29
22
22
27
20
15
12
15
17
13
30
11
21
28
30
2
4
24
3
12
10
22
5
18
8
6
5
28
17
24
2
23
12
13
33
7
16
21

Артикул

Название

Примечание

Количество

1

87325136

CLUTCH OVERHAUL KIT

1шт.

Four Friction Plates

1шт.

Component of Kit 84223960

1шт.

2

378154A1

SHIM,0.127mm Thk

1шт.

3

378155A1

SHIM,0.178mm Thk

1шт.

4

378156A1

SHIM,0.203mm Thk

1шт.

5

378157A1

SHIM,0.508mm Thk

1шт.

6

238-5277

O-RING,0.139" Thk x 11.484" ID, -277, Cl 5, 75 Duro

2шт.

7

L33289

ROLLER BEARING,57.1565mm ID x 21.857mm Thk

2шт.

8

105497H

BEARING CUP,96.85mm OD x 15.77mm W

2шт.

9

87105122

COVER

2шт.

10

A188192

WASHER, THRUST,45.05mm ID x 64.94mm OD x 2.05mm Thk

4шт.

11

A183452

THRUST BEARING,45.05mm ID x 66.85mm OD x 3.85mm W

4шт.

12

A178460

NEEDLE BEARING,44.99mm ID x 50.02mm OD x 16.8mm W

4шт.

13

A188194

RING,46.25mm ID x 49.8mm OD x 6.38mm Thk

Inner

2шт.

14

87105111

GEAR

PTO Clutch, 60 T

2шт.

15

257277A1

SEALING RING,Locking, 79.8mm ID x 89.2mm OD x 3.5mm Thk

SEALRING Clutch Lube

2шт.

16

87587474

SEALING RING

SEALRING Shaft

4шт.

17

636826R91

BEARING ASSY,44.45 mm ID x 51 mm OD x 25.4 mm

Roller

2шт.

18

130503H

BEARING CUP

2шт.

19

87105115

SEALING RING,64.77mm ID x 70mm OD x 2.62mm Thk

SEALRING

2шт.

20

87105116

SEALING RING,82.22mm ID x 87.45mm OD x 2.62mm Thk

SEALRING

2шт.

21

87105109

CLUTCH PLATE,105mm ID x 141mm OD x 7mm Thk

2шт.

22

86990276

DISC,98.63mm ID x 141mm OD x 1.95mm Thk

Friction, Shift Clutch

4шт.

May be Used Interchangeably

1шт.

22

84159162

CLUTCH PLATE,98.63mm ID x 141mm OD x 1.95mm Thk

Disc, Friction, Shift

4шт.

May be Used Interchangeably

1шт.

23

87109365

PLATE

Flat

2шт.

24

87105676

PISTON

2шт.

25

87105113

SPRING

Disc

2шт.

26

87105114

RING

2шт.

27

800-1170

SNAP RING,M70, Ext

2шт.

28

619585C91

SEAL,51.94mm ID x 76.33mm OD x 9.5mm Thk

Lip

2шт.

29

1345887C1

PLUG

Expansion, M9

2шт.

30

628-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

1шт.

31

896-12012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

32

87737569

SERVICE KIT

Shaft & Clutch Housing Assembly, Incl 2 - 5, 16, 19 - 29

1шт.

Clutch Kit W/O Seals - 87737569 (Incl 19 - 29)

1шт.

Six Friction Plates

1шт.

Beater/Chopper Drive

1шт.

33

87332117

GEAR

1шт.

34

100-16175

SNAP RING,#175, Ext

1шт.

Выбрано товаров: 42
