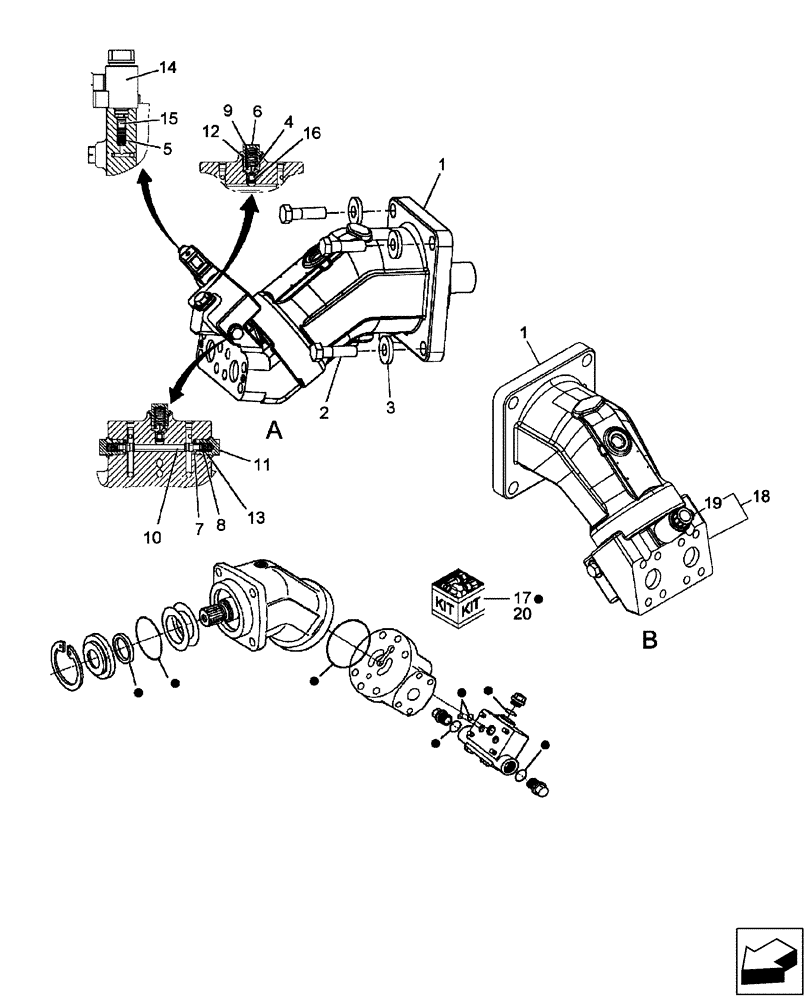

Запчасти Case IH 8120 (29.212.20) - HYDROSTATIC MOTOR, 107CC OR 125CC (29) - HYDROSTATIC DRIVE

1

87634753

HYDROSTATIC MOTOR

107CC, Serial Range: -Y9G206687

1шт.

1

87634753R

REMAN-HYD MOTOR

Serial Range: BSN Y9G206687

1шт.

1

87634753C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

1

84168176

HYDROSTATIC MOTOR

107CC, Start Serial: Y9G206687

1шт.

Standard Drive

1шт.

See Note B

1шт.

1

87634752

HYDROSTATIC MOTOR

125CC, Serial Range: -Y9G206762

1шт.

Planetary or Track Drive

1шт.

See Note A

1шт.

1

87634752R

REMAN-HYD MOTOR

7120, 8120, 9120, All BSN Y9G206762

1шт.

1

87634752C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

1

84168175

HYDROSTATIC MOTOR

125CC, Start Serial: Y9G206762

1шт.

Planetary or Track Drive

1шт.

See Note B

1шт.

1

84168175R

REMAN-HYDROSTAT MOTO

7120, 8120, 9120 HYDROSTATIC MOTOR Start Serial Y9G206762 (9/08-)

1шт.

1

84168175C

CORE-HYDROSTAT MOTOR

Return Number

1шт.

2

87022685

BOLT,Hex, M16 x 55mm, Cl 10.9

4шт.

3

84058945

WASHER,16.5mm ID x 41mm OD x 6mm Thk

4шт.

4

87702168

PISTON

Valve

1шт.

5

NSS

NOT SOLD SEPARAT

Spring, Pressure

1шт.

6

87702169

SCREW,Lock

1шт.

7

NSS

NOT SOLD SEPARAT

Washer

1шт.

8

NSS

NOT SOLD SEPARAT

Spring

1шт.

9

87702170

SPRING

1шт.

10

NSS

NOT SOLD SEPARAT

Piston, Flushing

1шт.

11

87702165

SCREW,Lock

1шт.

12

70925929

O-RING,0.103" Thk x 0.688" ID, -115, Cl 8, 90 Duro

1шт.

13

NSS

NOT SOLD SEPARAT

1шт.

14

87686484

SOLENOID

1шт.

15

NSS

NOT SOLD SEPARAT

Piston, Control

1шт.

16

87702171

RING

Retaining

1шт.

17

87696335

SEAL KIT

Services Motor Type "A"

1шт.

18

84179973

HYDRAULIC VALVE

Flushing

1шт.

19

87686484

SOLENOID

1шт.

20

84190056

SEAL KIT

Services Motor Type "B"

1шт.
