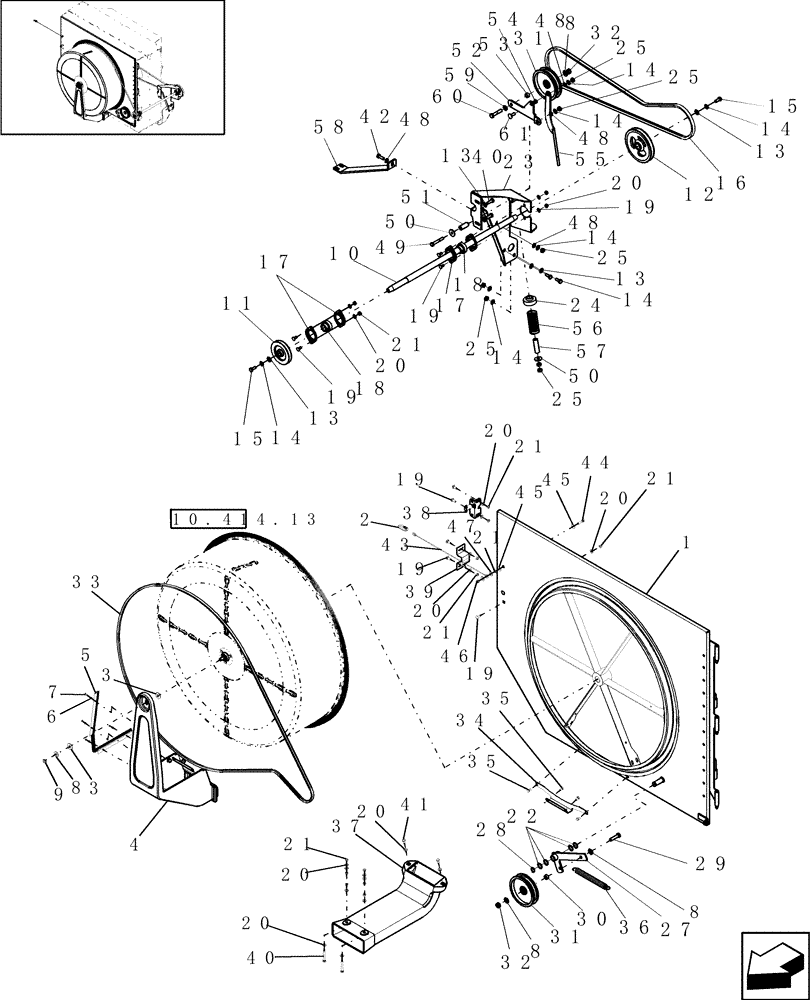

Запчасти Case IH 8120 (10.418.16[03]) - ROTARY SCREEN - 8120 MECHANICAL/BELT DRIVE ROTARY (10) - ENGINE

1

87698896

SUPPORT ASSY.

1шт.

2

87107072

CHAIN LINK,44.299mm Pitch

1шт.

3

543043

WASHER,13mm ID x 35mm OD x 2.5mm Thk

2шт.

4

87522592

CHANNEL

1шт.

5

87642393

BRUSH

BRUSH

1шт.

6

322355

BELLEVILLE WASHER,M4 Bolt Size x 10mm OD x 0.9mm Thk

4шт.

7

86585706

SCREW,Phillips Drive, Pan HD, M4 x 10mm, Cl 4.8

4шт.

8

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

4шт.

9

323238

THIN NUT,Hex, M12, 1.75mm Pitch, Cl 05

1шт.

10

84173233

COUNTERSHAFT

1шт.

11

87552111

PULLEY

1шт.

12

84069907

PULLEY,174mm OD

1шт.

13

378244

WASHER,10.5mm ID x 24mm OD x 2mm Thk

2шт.

14

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

15шт.

15

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

9шт.

16

87607871

V-BELT,12.45 mm W x 2190.00 mm L

Rotary Screen

1шт.

17

86548974

FLANGE,Bearing

4шт.

18

325103

BALL BEARING,25mm ID x 52mm OD x 15mm W

2шт.

19

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

9шт.

20

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

19шт.

21

9706690

NUT,M8 x 1.25, Cl 8

17шт.

22

443434

LOCK WASHER,20.5mm ID x 29mm OD x 1mm Thk

4шт.

23

84174242

BRACKET

1шт.

23

382974

BUSHING,20.05mm ID x 23mm OD x 15mm L

Bushing for Bracket 84174242

2шт.

24

87633160

BUSHING

1шт.

25

100016

NUT,M10 x 1.5, Cl 8

8шт.

26

895-30108

WASHER,4.3mm ID x 15mm OD x 1.2mm Thk

4шт.

27

87552113

ARM ASSY.

1шт.

28

370024

CIRCLIP,M20, Ext

1шт.

29

9706702

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

1шт.

30

84069986

BUSHING,13mm ID x 20mm OD x 11mm L

1шт.

31

87552112

PULLEY

2шт.

32

9706685

NUT,M12 x 1.75, Cl 8

2шт.

33

86514512

V-BELT,0.49" W x 142.50" L

Rotary Screen

1шт.

34

87550068

SUPPORT ASSY.

1шт.

35

336199

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

4шт.

36

87647773

SPRING

1шт.

37

87571790

CHANNEL

1шт.

38

84431232

LATCH

1шт.

39

84057181

SUPPORT

1шт.

40

86977784

BOLT,Hex, M8 x 60mm, Cl 8.8, Full Thd

2шт.

41

87019672

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

2шт.

42

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

3шт.

43

86623991

CABLE,2 Eyelet, 490mm Centerline Length

1шт.

44

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

1шт.

45

412650

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.4mm Thk

2шт.

46

86629542

NUT,M8 x 1.25, Cl 8.8

1шт.

47

378243

WASHER,8.4mm ID x 21mm OD x 1.6mm Thk

2шт.

48

86511323

WASHER,10.5mm ID x 20mm OD x 2mm Thk

2шт.

49

43144

BOLT,Hex, M10 x 70mm, Cl 8.8

1шт.

50

12644301

WASHER,M10 x 35 x 3

2шт.

51

87600703

SHAFT

Spindle

1шт.

52

87600674

SPRING SEAT

1шт.

53

84069986

BUSHING,13mm ID x 20mm OD x 11mm L

1шт.

54

133095

SPACER,10.32mm ID x 15.85mm OD x 7.9mm L

1шт.

55

87602153

LINK

1шт.

56

38902

SPRING

1шт.

57

87602127

SPACER,12.7mm ID x 20.3mm OD x 70mm L

Spacer

1шт.

58

84272270

STRAP

1шт.

59

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

1шт.

60

9706693

BOLT,M12 x 60mm, Cl 8.8

1шт.

61

86512424

CARRIAGE BOLT,Sq Nk, M10 x 30mm, Cl 8.8, Full Thd

1шт.

62

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

1шт.

63

445394

RIVET,Pop, 3/16" x 1/2" OAL

1шт.

64

331233

PLUG

1шт.

65

87729445

ROD ASSY.

1шт.
