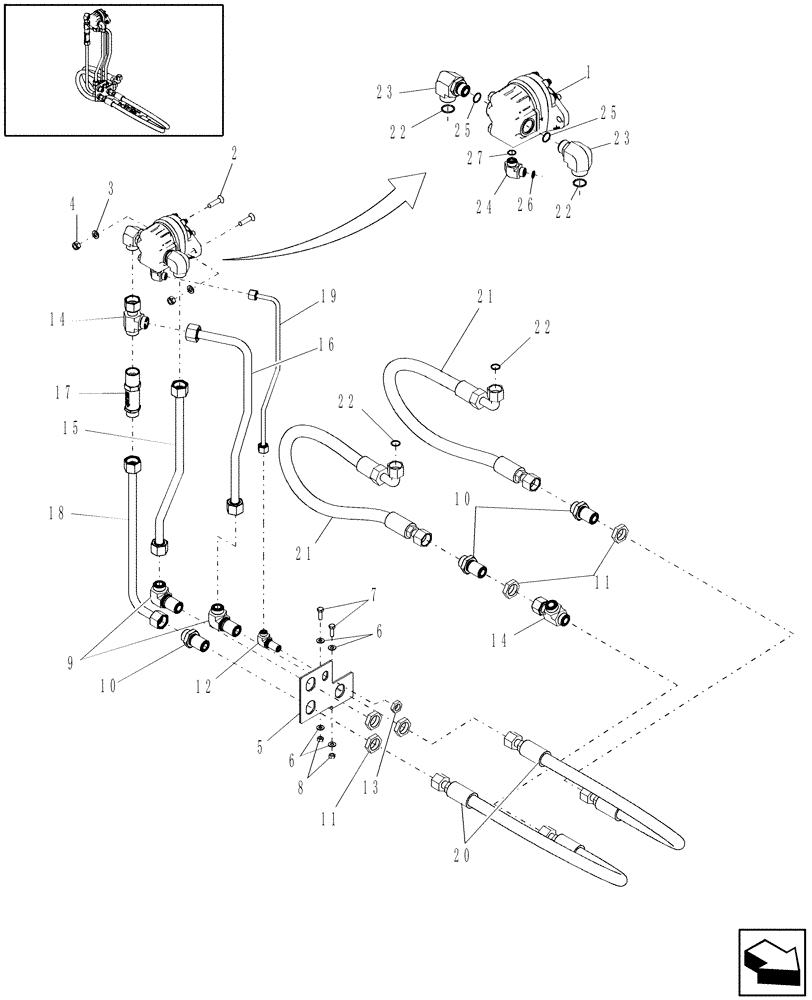

Запчасти Case IH 8120 (10.414.12) - DRIVE, HYDRAULIC ROTARY SCREEN - 8120/8120(LA) (10) - ENGINE

1

87594982

MOTOR,GEAR, 26.1 CC

1шт.

2

120259

HEX SOC SCREW,CSS, M10 x 40mm, Cl 10.9

2шт.

3

140017

WASHER,M10 x 20mm OD x 2mm Thk

2шт.

4

100037

LOCK NUT,M10 x 1.5, Cl 8

2шт.

5

87563494

BRACKET

1шт.

6

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

7

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

8

9706690

NUT,M8 x 1.25, Cl 8

2шт.

9

86837484

ELBOW,90 Degree, 1 3/16"-12. ORFS, Blkhd

2шт.

10

86639064

UNION,1-3/16"-12 ORFS, Bulkhead

3шт.

11

86639062

BHD LOCK NUT,1-3/16"-12 ORFS, Bulkhead

5шт.

12

87317453

ELBOW,90 Degree, 11/16" - 16, ORFS, Blkhd

1шт.

13

87010704

BHD LOCK NUT,11/16"-16

1шт.

14

87016915

TEE,1-3/16"-12 ORFS x 13.9mm ORB

2шт.

15

87563495

HYD TUBE,20 mm OD x 504.17 mm L

Motor Pressure

1шт.

16

87563496

HYD TUBE,0.75" OD

Motor Outlet

1шт.

17

87563490

CHECK VALVE,1-3/16" - 12 ORFS x 1-3/16" - 12 ORFS

110 PSI

1шт.

18

87563497

HYD TUBE,0.75" OD

Aux Cool Bypass

1шт.

19

87563498

HYD TUBE,10 mm OD x 476.1 mm L

Motor Drain

1шт.

20

87646888

HOSE ASSY.

Aux Cooler; L = 945 mm

2шт.

21

87646890

HOSE ASSY.,19.05mm ID x 1000mm L

Aux Cooler Box; L = 1000 mm

2шт.

22

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

4шт.

23

86579695

90 ELBOW,90 Degree, 1-3/16"-12 ORFS x M22 x 1.5 ORB

2шт.

24

86579686

90 ELBOW,11/16"-16 ORFS x M14 x 1.5 ORB

1шт.

25

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

2шт.

26

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

27

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

n/s

87530092

SEAL KIT

Not Shown

1шт.
