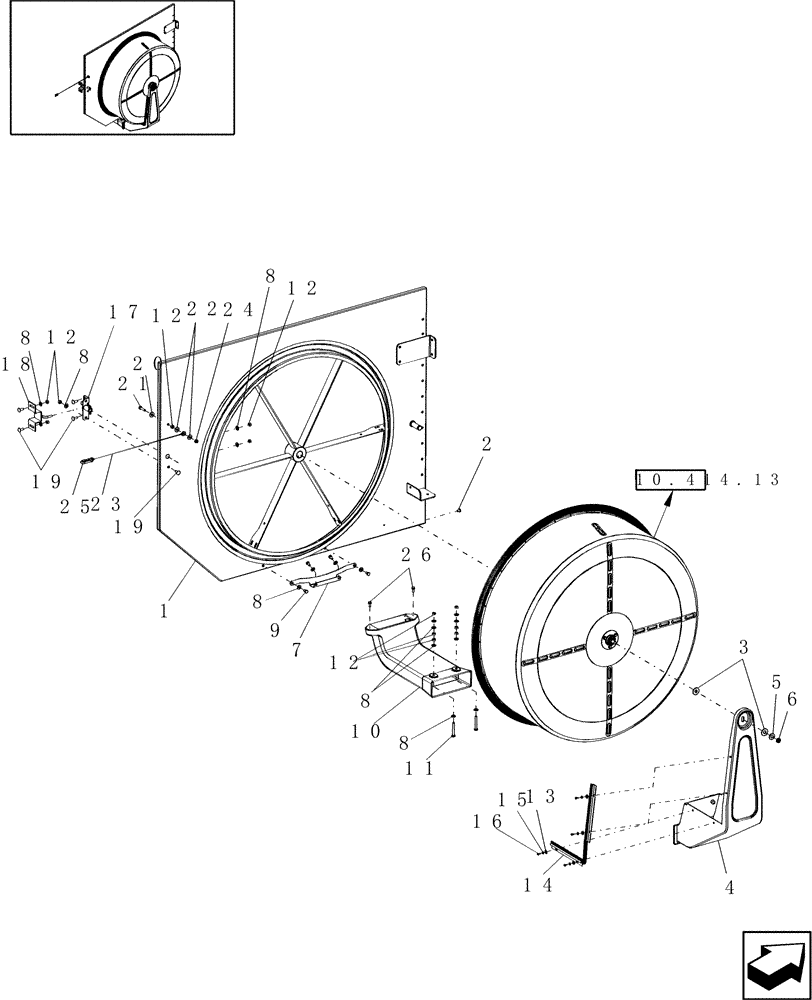

Запчасти Case IH 8120 (10.414.09) - DOOR, METAL DUST SCREEN - 8120/8120(LA) (10) - ENGINE

1

87698271

DOOR ASSY.

1шт.

2

331233

PLUG

1шт.

3

543043

WASHER,13mm ID x 35mm OD x 2.5mm Thk

2шт.

4

87522592

CHANNEL

1шт.

5

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

1шт.

6

323238

THIN NUT,Hex, M12, 1.75mm Pitch, Cl 05

1шт.

7

87350223

SUPPORT

1шт.

8

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

17шт.

9

336199

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

4шт.

10

87571790

CHANNEL

1шт.

11

86977784

BOLT,Hex, M8 x 60mm, Cl 8.8, Full Thd

2шт.

12

9706690

NUT,M8 x 1.25, Cl 8

12шт.

13

895-30108

WASHER,4.3mm ID x 15mm OD x 1.2mm Thk

4шт.

14

87642393

BRUSH

BRUSH

4шт.

15

322355

BELLEVILLE WASHER,M4 Bolt Size x 10mm OD x 0.9mm Thk

4шт.

16

86585706

SCREW,Phillips Drive, Pan HD, M4 x 10mm, Cl 4.8

4шт.

17

84431232

LATCH

1шт.

18

84057181

SUPPORT

1шт.

19

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

5шт.

20

412650

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.4mm Thk

2шт.

21

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

1шт.

22

378243

WASHER,8.4mm ID x 21mm OD x 1.6mm Thk

2шт.

23

86623991

CABLE,2 Eyelet, 490mm Centerline Length

1шт.

24

86629542

NUT,M8 x 1.25, Cl 8.8

1шт.

25

87107072

CHAIN LINK,44.299mm Pitch

1шт.

26

87019672

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

29шт.
