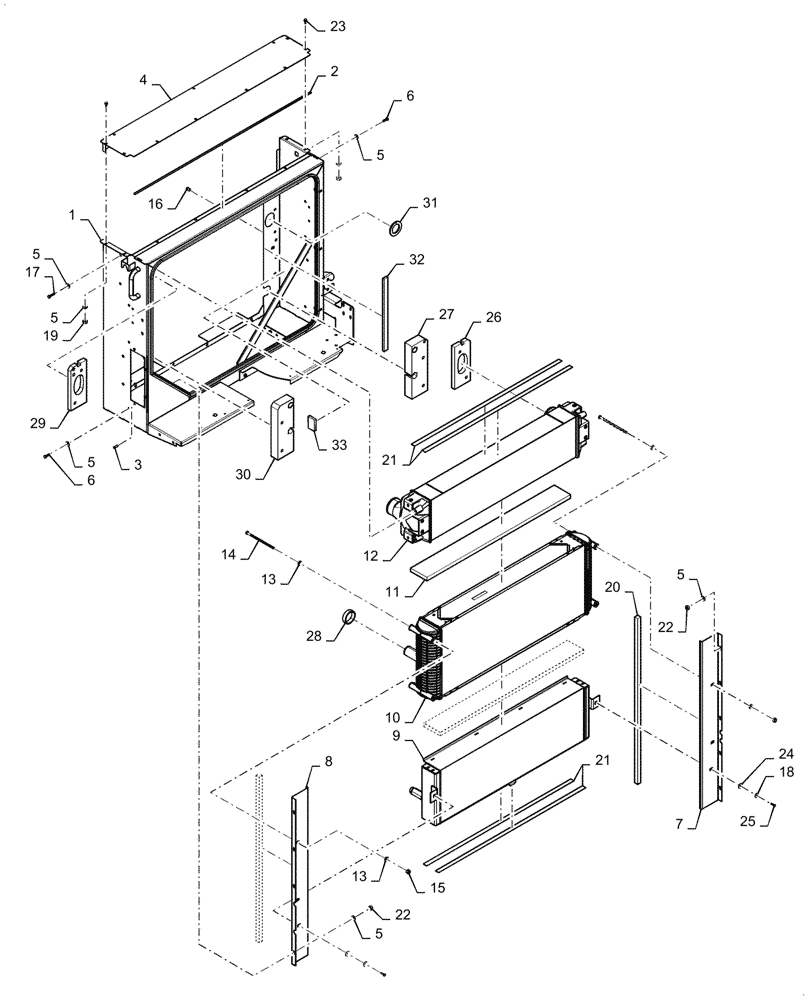

Запчасти Case IH 8120 (10.414.01[01]) - FRAME & COOLER, MY11 (10) - ENGINE

1

84168652

FRAME

Cooling Box

1шт.

2

87510717

SEALING STRIP,10mm W x 1459mm L x 3.174mm Thk

1шт.

3

87284531

NUT,Rivnut, M8 x 1.25, 0.5mm - 3mm Grip Range

2шт.

4

87740229

COVER ASSY

Top

1шт.

5

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

24шт.

6

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

9шт.

7

84170569

PLATE

Side, RH

1шт.

8

87388375

PLATE

Side, LH

1шт.

9

87601208

COOLER, OIL

Main

1шт.

10

87378361

RADIATOR

Coolant

1шт.

11

87584962

SEALING STRIP

Radiator

2шт.

12

87578692

INTERCOOLER,Charge Air

1шт.

13

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

8шт.

14

364053

BOLT,Hex, M12 x 1.75 x 220mm, Cl 8.8

4шт.

15

100038

NUT,M12 x 1.75, Cl 8

4шт.

16

86976968

INSERT,Rivnut, M10 x 1.5 x 19mm OD

2шт.

17

120068

BOLT,Hex, M10 x 40mm, Cl 8.8

2шт.

18

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

19

9706690

NUT,M8 x 1.25, Cl 8

1шт.

20

87710390

SEALING STRIP,25.4mm W x 1190mm L x 25.4mm Thk

2шт.

21

WIC291355

PAD

Seal Strip

1шт.

22

100016

NUT,M10 x 1.5, Cl 8

9шт.

23

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

13шт.

24

86979986

WASHER,0.34" ID x 1.25" OD x 0.06" Thk

2шт.

25

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

26

84331743

FOAM INSULATION

Seal

1шт.

27

84331748

FOAM INSULATION

Seal

1шт.

28

87420945

BALL SOCKET

Foam Seal

2шт.

29

84359435

FOAM INSULATION

Seal

1шт.

30

84359439

FOAM INSULATION

Seal

1шт.

31

87420911

FOAM INSULATION,31.8mm W x 340mm L x 12.7mm Thk

2шт.

32

87419199

FOAM INSULATION,31.8mm W x 520mm L x 12.7mm Thk

2шт.

33

87420912

SEAL

Foam Insulation

2шт.
