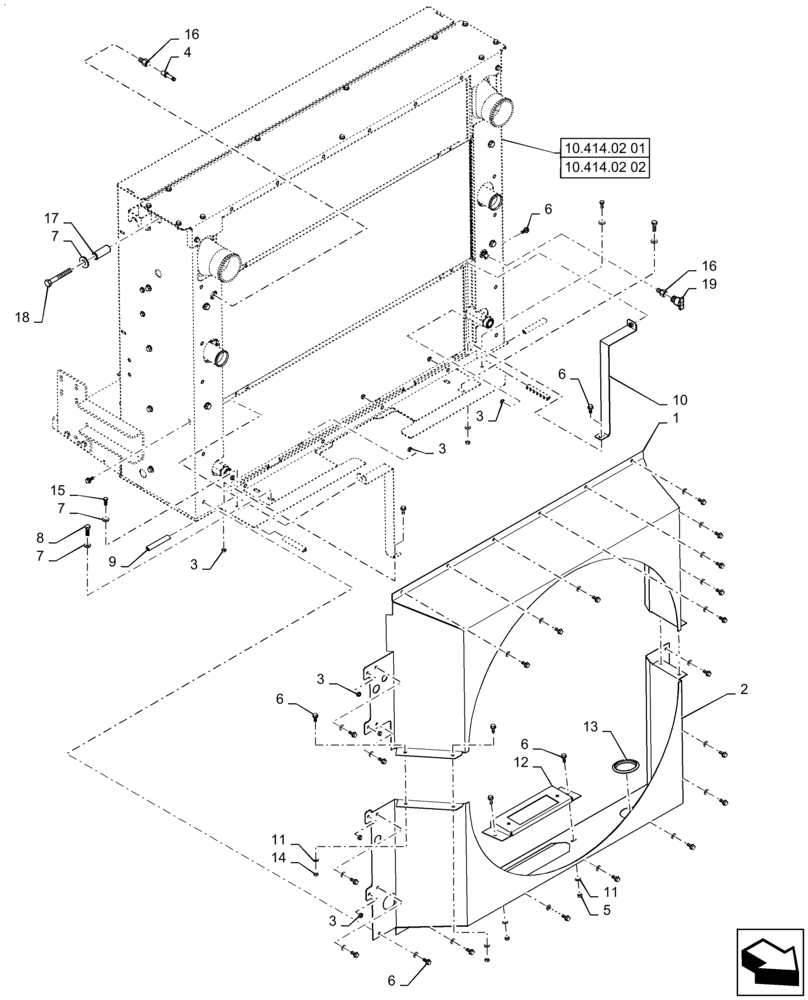

Запчасти Case IH 8120 (10.406.08[02]) - FAN SHROUD - 8120/8120(LA) (10) - ENGINE

1

87714979

SHROUD ASSY.

Upper Fan

1шт.

2

87714975

SHROUD ASSY.

Lower Fan

1шт.

3

87284531

NUT,Rivnut, M8 x 1.25, 0.5mm - 3mm Grip Range

26шт.

4

217-151

FITTING,3/8" Hose Barb x 1/4" Male NPTF

1шт.

5

9706690

NUT,M8 x 1.25, Cl 8

2шт.

6

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

31шт.

7

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

8

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

2шт.

9

291186

PROTECTION STRIP,9.9mm W

4шт.

10

87584335

ANGLE

2шт.

11

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

6шт.

12

87639327

BRACKET

Aspiration Duct

1шт.

13

87000778

PLUG,89mm OD

1шт.

14

9706690

NUT,M8 x 1.25, Cl 8

4шт.

15

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

16

87306797

ADAPTER,1/4"-18 Fem NPTF x 1/4"-18 NPTF Male

2шт.

17

87735597

BUSHING

2шт.

18

120069

BOLT,M10 x 1.5 x 56.58mm OAL, Cl 8.8

2шт.

19

86625234

DRAINCOCK/TAP SUPPLY,1/4" NPTF

1шт.
