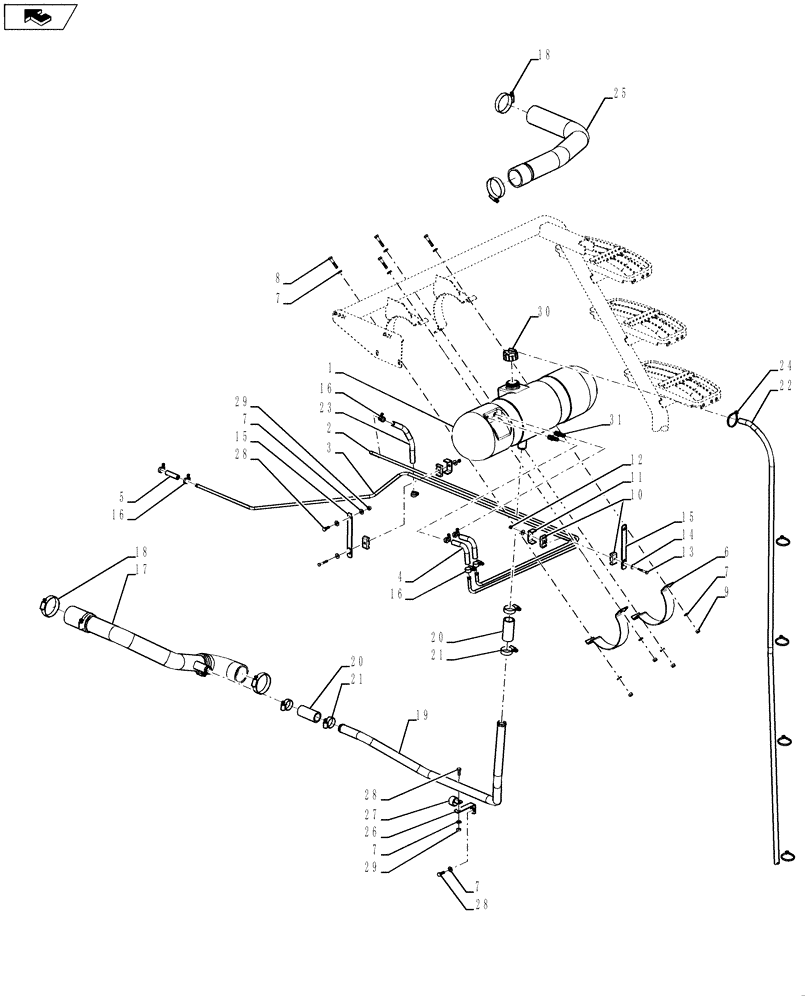

Запчасти Case IH 8120 (10.406.03[04]) - COOLANT LINES-8120/8120LA MY11 (10) - ENGINE

1

87670349

RESERVOIR, COOLANT E

1шт.

2

84172558

RIGID TUBE

1шт.

3

84172559

RIGID TUBE

1шт.

4

87671820

HOSE,9.40 mm ID, SAE 30R2

2шт.

5

87534733

HOSE,9.50 mm ID x 110.00 mm, SAE 30R2

1шт.

6

84442536

CLAMP

2шт.

7

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

12шт.

8

43129

BOLT,Hex, M8 x 1.25 x 40mm, LH Thd, Cl 8.8

4шт.

9

86629542

NUT,M8 x 1.25, Cl 8.8

4шт.

10

430357

CLAMP

4шт.

11

431941

SUPPORT

2шт.

12

353308

NUT,M6 x 1.0, Cl 8

2шт.

13

120102

BOLT,Hex, M6 x 40mm, Cl 8.8

2шт.

14

412649

BELLEVILLE WASHER,M6 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

15

87281676

BRACKET

2шт.

16

214-1706

HOSE CLAMP,#06, 0.44" - 0.78", Type M Worm

8шт.

17

84172547

RIGID TUBE

1шт.

18

86633352

HOSE CLAMP,57mm - 79mm

4шт.

19

84172553

RIGID TUBE

1шт.

20

87551123

HOSE,28.6mm ID x 80mm OAL, SAE 20R4

2шт.

21

507586

HOSE CLAMP,20.6mm - 44.4mm, Worm Gear

4шт.

22

87395212

TUBE

1шт.

23

87576257

HOSE,9.50 mm ID x 250.00 mm

1шт.

24

86566989

CABLE TIE,208mm L

CABLE STRAP

5шт.

25

84172561

RADIATOR HOSE

1шт.

26

84211784

BRACKET

1шт.

27

86637996

CLAMP,28.6mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

28

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

3шт.

29

9706690

NUT,M8 x 1.25, Cl 8

2шт.

30

82022744

CAP,Female, Vented, Non-Locking

Was 84072957

1шт.

31

87742820

FITTING,1/4" Barb x 3/8" Pipe

Barb

2шт.
