(10.304.04) - REMOTE ENGINE OIL FILTER LUBE LINES - 8120/8120(LA), 9120

Запчасти Case IH 8120 (10.304.04) - REMOTE ENGINE OIL FILTER LUBE LINES - 8120/8120(LA), 9120 (10) - ENGINE

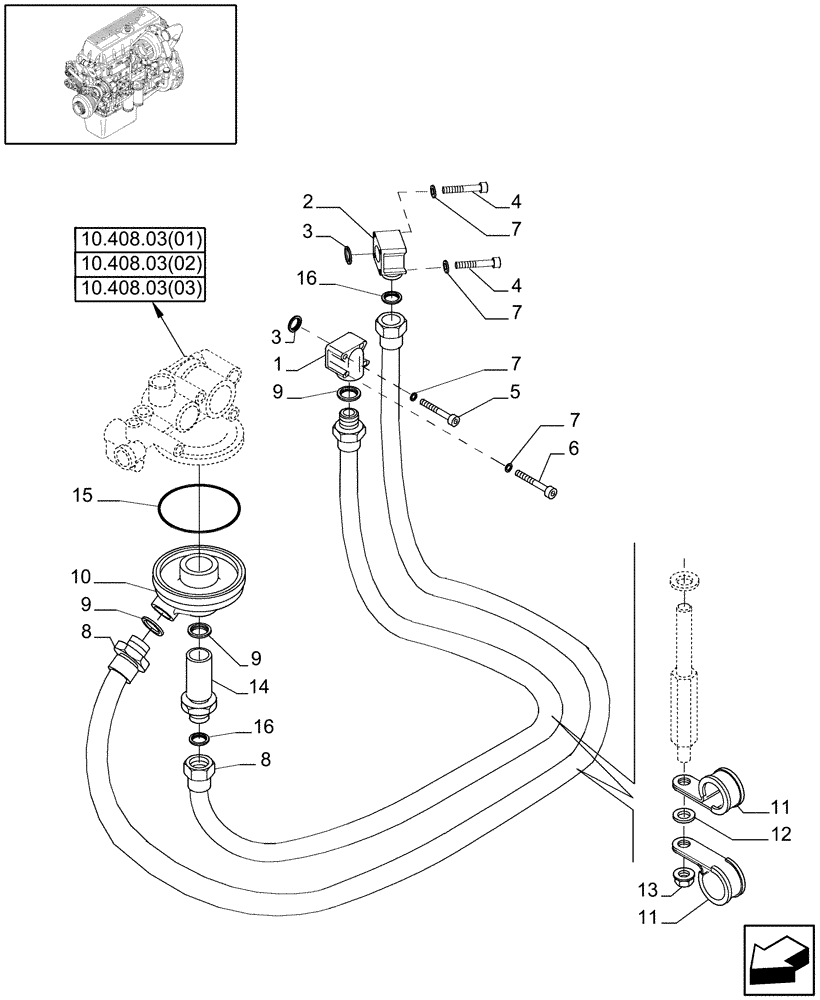

Схема запчастей Case IH 8120 - (10.304.04) - REMOTE ENGINE OIL FILTER LUBE LINES - 8120/8120(LA), 9120 (10) - ENGINE
3
11
7
4
7
13
5
11
15
2
10
10.408.03(03)
16
9
9
14
16
4
7
8
12
6
8
1
7
10.408.03(01)
9
10.408.03(02)
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

504005572

ELBOW

1шт.

2

98481998

FITTING

1шт.

3

2852978

O-RING,0.103" Thk x 0.924" ID, -119, Cl 7, 75 Duro

2шт.

4

16689724

SCREW,M6 x 45mm

2шт.

5

16689824

SCREW,M6 x 50mm

2шт.

6

16689924

SCREW

4шт.

7

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

8шт.

8

504002665

HOSE

To Remote Oil Filter Base

2шт.

9

99434480

SEAL

3шт.

10

504005569

SUPPORT

1шт.

11

17317390

CLAMP

8шт.

12

10519624

WASHER,8.15mm ID x 17mm OD x 2mm Thk

5шт.

13

17044721

NUT

M8 x 1.25

5шт.

14

500382730

FITTING

1шт.

15

17291281

GASKET,94.84mm ID x 3.53mm Thk

1шт.

16

87681214

O-RING,2mm Thk x 20mm ID, 70 Duro

2шт.
