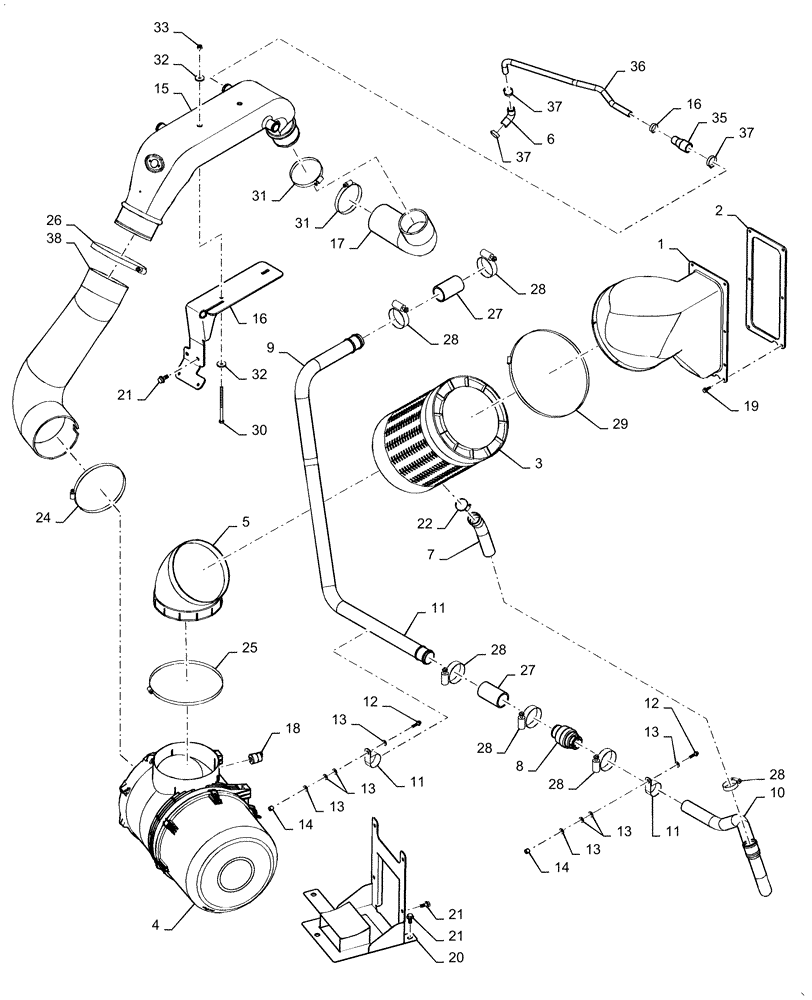

Запчасти Case IH 8120 (10.254.09(02)) - AIR INTAKE-ENGINE-8120 UPDATE W/PRECLEANER (10) - ENGINE

1

84410132

AIR DUCT

Duct, Air Intake

1шт.

2

84414539

GASKET,6.4mm Thk

Air Intake

1шт.

3

84565656

AIR CLEANER

Precleaner, Dual Spin

1шт.

4

84305918

AIR CLEANER

1шт.

84305930

AIR FILTER,Round, 400mm ID x 321mm OD x 604.5mm L, Paper

Primary, Engine

1шт.

84305935

AIR FILTER,Round, 167mm OD x 565.5mm L, Paper

Secondary, Engine, Inner

1шт.

5

84410134

TUBE

Air Intake

1шт.

6

84483233

AIR INTAKE TUBE

1шт.

7

84410135

HOSE

Aspirator

1шт.

8

87745355

CHECK VALVE

1шт.

9

84513015

AIR INTAKE TUBE

C9, T2

1шт.

10

84516621

AIR INTAKE TUBE

C10

1шт.

11

86634189

CLAMP,50.8mm, Coat, 13.5mm Bolt Hole, P Type

2шт.

12

86625201

SELF-TAP SCREW,M8 x 1.25 x 30mm L

2шт.

13

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

8шт.

14

87035448

SPACER,8.48mm ID x 12.7mm OD x 12.7mm L

2шт.

15

84244912

AIR INTAKE TUBE

1шт.

16

87547598

SUPPORT

1шт.

17

84260668

ELBOW

1шт.

18

87013666

SWITCH,Air Filter Restriction

1шт.

19

87698833

BOLT,M8 x 33.1mm, Cl 10.9

6шт.

20

84518352

BRACKET

1шт.

21

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

8шт.

22

82039349

CLAMP,60mm ID - 80mm ID x 12mm W, Unlined

1шт.

23

NSS

NOT SOLD SEPARAT

1шт.

24

87019669

HOSE CLAMP,174.1mm - 196.8mm

1шт.

25

87012918

HOSE CLAMP,64mm - 317.5mm

1шт.

26

87690486

CLAMP,149mm ID - 172mm ID, SAE #100

1шт.

27

87402766

HOSE

2шт.

28

86625019

HOSE CLAMP,44mm - 67mm

6шт.

29

79083864

CLAMP,325mm ID - 360mm ID x 14mm W, Unlined

1шт.

30

381522

BOLT,Hex, M8 x 1.25 x 130mm, Cl 8.8

2шт.

31

9706924

HOSE CLAMP,103.1mm - 127mm

2шт.

32

140041

WASHER,M8 x 28mm OD x 3mm Thk

4шт.

33

86629542

NUT,M8 x 1.25, Cl 8.8

2шт.

34

NSS

NOT SOLD SEPARAT

1шт.

35

84073303

HOSE,25mm ID - 38mm ID x 100mm OAL

1шт.

36

84166275

TUBE

1шт.

37

382528

HOSE CLAMP,35mm ID - 52mm ID x 13mm W, Unlined

1шт.

38

84476707

AIR INTAKE TUBE

Air Cleaner Outlet

1шт.
