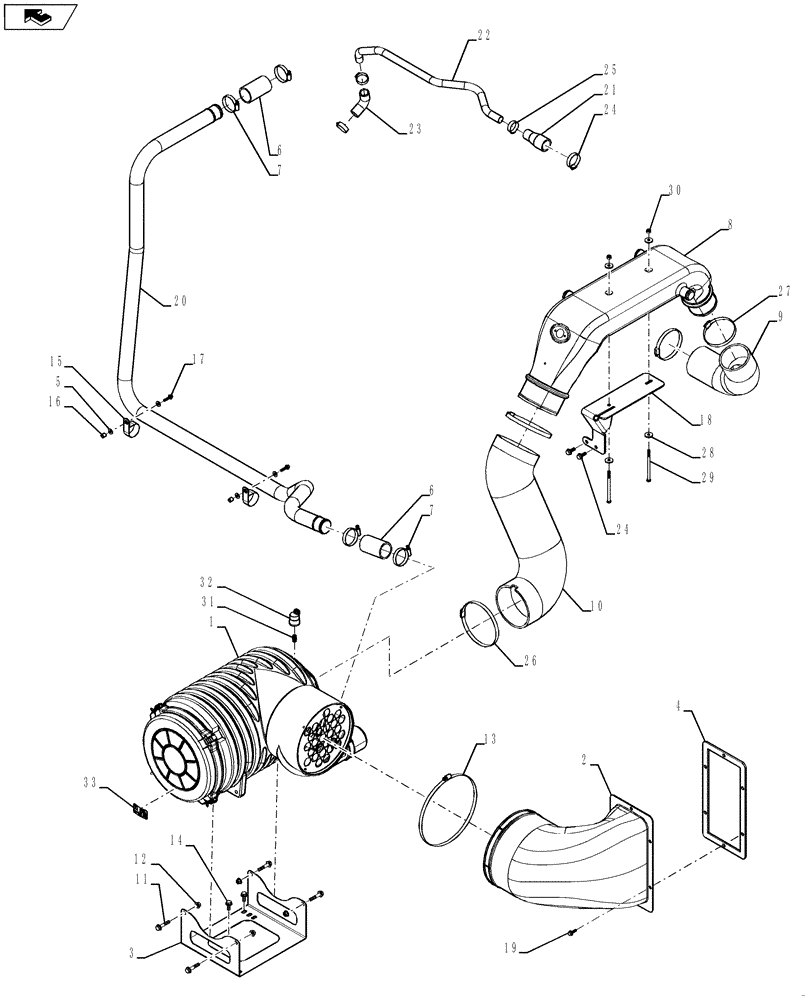

Запчасти Case IH 8120 (10.254.08[04]) - AIR INTAKE-ENGINE-8120 MY11 (10) - ENGINE

1

86998329

AIR CLEANER

Please See Figure 10.202.02 For Breakdown

1шт.

2

84168626

PLASTIC-RUBBER TUBE

1шт.

3

87729284

BRACKET

1шт.

4

84210331

GASKET,6.4mm Thk

1шт.

5

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

6

87402766

HOSE

2шт.

7

86625019

HOSE CLAMP,44mm - 67mm

4шт.

8

84244912

AIR INTAKE TUBE

1шт.

9

84260668

ELBOW

1шт.

10

84172616

AIR HOSE

1шт.

11

87698840

FLANGE BOLT,M10 x 50mm, Cl 10.9

4шт.

12

86050279

FLANGE NUT,M10 x 1.5, Cl 10

4шт.

13

87012918

HOSE CLAMP,64mm - 317.5mm

1шт.

14

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

4шт.

15

86634189

CLAMP,50.8mm, Coat, 13.5mm Bolt Hole, P Type

2шт.

16

87035448

SPACER,8.48mm ID x 12.7mm OD x 12.7mm L

2шт.

17

86625201

SELF-TAP SCREW,M8 x 1.25 x 30mm L

2шт.

18

87547598

SUPPORT

1шт.

19

87698833

BOLT,M8 x 33.1mm, Cl 10.9

6шт.

20

87597317

TUBE,2" OD

1шт.

21

84073303

HOSE,25mm ID - 38mm ID x 100mm OAL

1шт.

22

84166275

TUBE

1шт.

23

84334134

HOSE,25mm ID x 69mm OAL

1шт.

24

382528

HOSE CLAMP,35mm ID - 52mm ID x 13mm W, Unlined

1шт.

25

382527

HOSE CLAMP,25mm ID - 40mm ID x 13mm W, Unlined

1шт.

26

84012068

CLAMP

3шт.

27

9706924

HOSE CLAMP,103.1mm - 127mm

2шт.

28

140041

WASHER,M8 x 28mm OD x 3mm Thk

2шт.

29

381522

BOLT,Hex, M8 x 1.25 x 130mm, Cl 8.8

4шт.

30

86629542

NUT,M8 x 1.25, Cl 8.8

2шт.

31

86976679

ADAPTER

2шт.

32

87013666

SWITCH,Air Filter Restriction

2шт.

33

84215544

DECAL

1шт.
