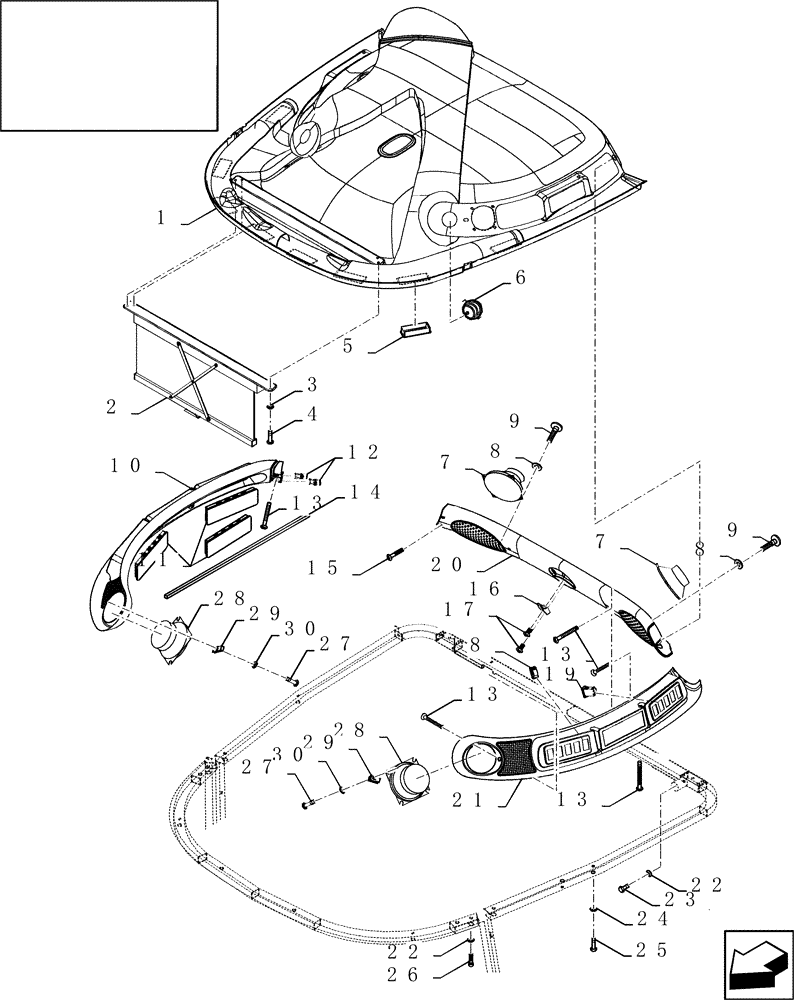

Запчасти Case IH 8010 (90.160.03) - CAB ROOF, INNER (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

86995949

ROOF LINING

1шт.

2

82004428

SUN CURTAIN

1шт.

3

335872

WASHER,4.1mm ID x 15mm OD x 1.6mm Thk

4шт.

4

86050251

SCREW,Phillips Drive, Pan HD, M4 x 25mm, Cl 4.8

4шт.

5

87281670

VENT

8шт.

6

84059804

GRILLE

2шт.

7

86572628

SPEAKER

STD

2шт.

7

86520822

SPEAKER

Premium, Rear

2шт.

8

140014

WASHER,M5 x 10mm OD x 1mm Thk

8шт.

9

86511827

SCREW,Phillips Drive, Pan HD, M5 x 20mm, Cl 4.8

8шт.

10

86995946

PANEL

RH

1шт.

11

87105189

COVER

3шт.

12

86014250

SPRING NUT,M6 x 1.0

4шт.

13

84439080

BOLT,Phillips Drive, Flat HD, M6 x 1 x 57mm, Cl 4.8

9шт.

14

84435430

SEAL

1шт.

15

86502680

SCREW,Phil Oval Hd, Csk, M6 x 20mm, Cl 4.8, Full Thd

4шт.

16

86520824

HOOK

1шт.

17

84058989

SCREW,Phillips Drive, Pan HD, M4 x 10mm, Cl 4.8

2шт.

18

84320252

WINDSHIELD WIPER SWI

1 Speed

1шт.

19

84320263

BLANK-OFF PLUG

1шт.

20

86995944

PANEL

Rear

1шт.

21

86995945

PANEL

LH

1шт.

22

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

5шт.

23

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

24

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

6шт.

25

86534686

HEX SOC SCREW,M6 x 30mm, Cl 12.9

6шт.

26

84000811

SCREW,M8 x 35mm, Cl 8.8

4шт.

27

86511824

SCREW,Phillips Drive, Pan HD, M4 x 0.7 x 20mm, Cl 4.8

8шт.

28

86572627

SPEAKER

Premium, Front

2шт.

If Available

1шт.

29

9628100

NUT,M4 x 0.7

8шт.

30

335872

WASHER,4.1mm ID x 15mm OD x 1.6mm Thk

8шт.
