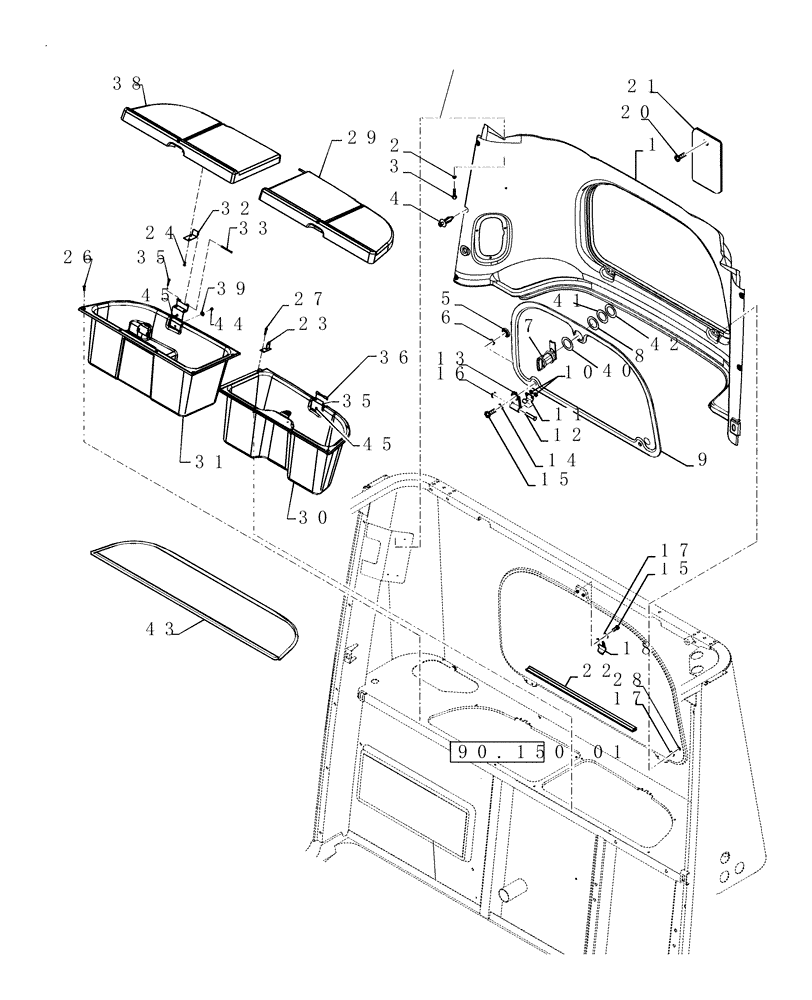

Запчасти Case IH 8010 (90.110.12[02]) - REAR PANEL, UPPER - CAB INTERIOR - PIN HAJ202001 & AFTER - 7010/8010 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

86995951

LINER

Soft Trim, Upper

1шт.

2

84607406

WASHER,M4 x 15 x 2 Thk

2шт.

3

84607407

SELF-TAP SCREW,Hex, Flg, M4 x 30

2шт.

4

84320280

PLUG

9шт.

5

86531235

BUSHING,M6 ID x 40mm OD x 13mm

2шт.

6

86531234

RUBBER WASHER,17mm ID x 40mm OD x 3mm Thk

2шт.

7

84441355

LATCH

1шт.

8

84441337

MOUNTING PLATE

Washer

1шт.

9

84440767

CAB GLASS ASSY

Cab

1шт.

10

84061305

SPACER,7mm ID x 15mm OD x 5mm L

4шт.

11

84435282

HINGE

2шт.

12

87032578

PIN,10mm OD x 62.3mm L

2шт.

13

84061288

HINGE

2шт.

14

84072877

WASHER,6.6mm ID x 22mm OD x 2mm Thk

2шт.

15

84073086

LOCK BOLT,Pan HD, M6 x 20mm

8шт.

16

89992582

CIRCLIP,M8

2шт.

17

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

6шт.

18

84440747

PLATE

Stop

1шт.

19

87106805

SEAL

1шт.

20

87012023

LATCH

Fuse Panel

1шт.

21

87107708

DOOR

Fuse Panel

1шт.

22

86979500

RUBBER SEAL

1шт.

23

87470176

BRACKET

1шт.

24

87752068

SCREW,Phil Oval Hd, Csk, M4 x 20mm, Cl 4.8, Full Thd

4шт.

25

87527748

LOCK PIN

2шт.

26

86511042

SCREW,Pan Head, M4 x 0.7 x 16mm, Cl 4.8

9шт.

27

87640945

SCREW,M4 x 0.7 x 0.7mm

1шт.

28

9706755

NUT,M6, Cl 8

4шт.

29

87527239

SEAT CUSHION

LH

1шт.

30

87106698

BOX

Storage, LH

1шт.

31

87656835

BOX

Storage, RH

1шт.

32

87517133

HINGE

2шт.

33

84432117

PIN

2шт.

35

412477

SCREW,Phil Oval Hd, Csk, M4 x 25mm, Cl 4.8, Full Thd

5шт.

36

84432119

HINGE

2шт.

38

87527746

SEAT CUSHION

RH

1шт.

39

335872

WASHER,4.1mm ID x 15mm OD x 1.6mm Thk

2шт.

40

84441321

BUSHING

1шт.

41

84441319

SEAL

Latch

1шт.

42

84441333

WASHER,19.1mm ID x 40mm OD x 2.14mm Thk

Latch

1шт.

43

87106697

SEAL

1шт.

44

385681

NUT,M4 x 0.7, Cl 8

2шт.

45

9844205

SCREW,Phillips Drive, Oval HD, M4 x 14mm, Cl 4.8

2шт.
