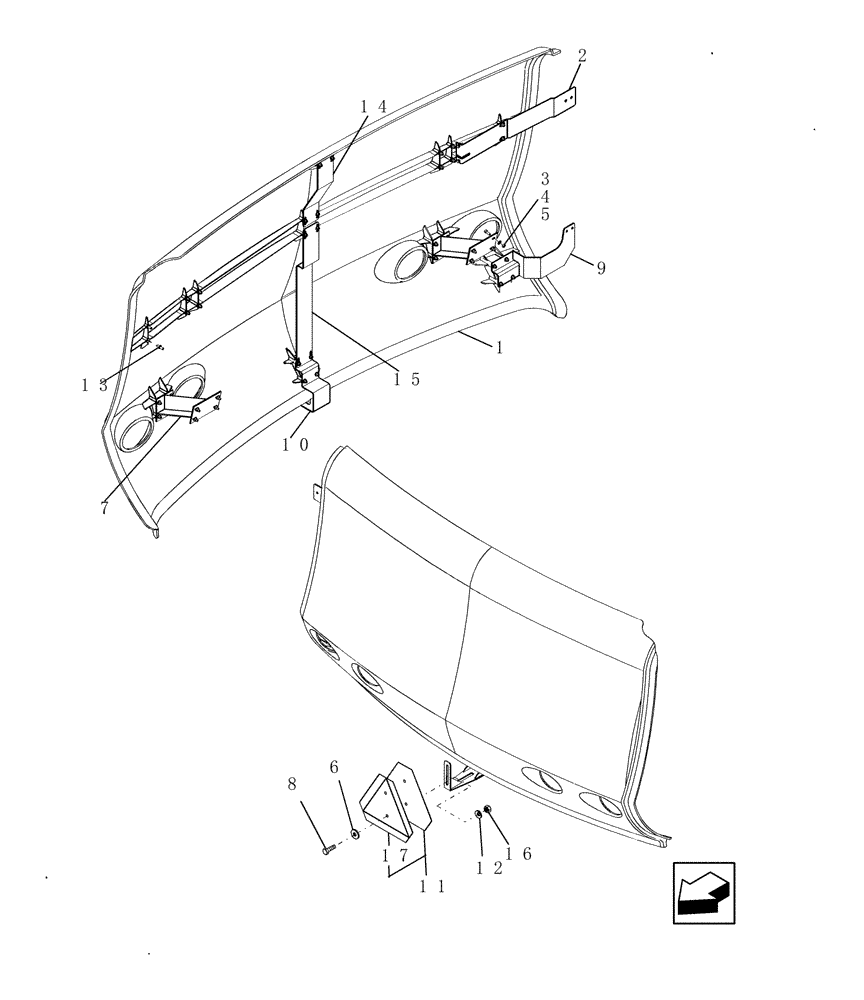

Запчасти Case IH 8010 (90.110.10) - PANEL, REAR - NA - 7010/8010 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

86998087

ENGINE HOOD

Rear

1шт.

2

87107411

BRACKET

1шт.

3

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

4

9706690

NUT,M8 x 1.25, Cl 8

1шт.

5

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

10шт.

7

87000755

BRACKET

Supporting

2шт.

6

86624183

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

2шт.

9

87000853

BRACKET

1шт.

8

120100

BOLT,M6 x 20mm, Cl 8.8

2шт.

10

87577504

BRACKET

SMV

1шт.

11

87280744

PLATE

SMV, Includes Ref 17

1шт.

12

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

13

86975784

STUD

1шт.

14

87280928

BRACKET

1шт.

15

87280930

BRACKET

1шт.

16

9706755

NUT,M6, Cl 8

2шт.

17

86547711

DECAL,SMV

SMV

1шт.
