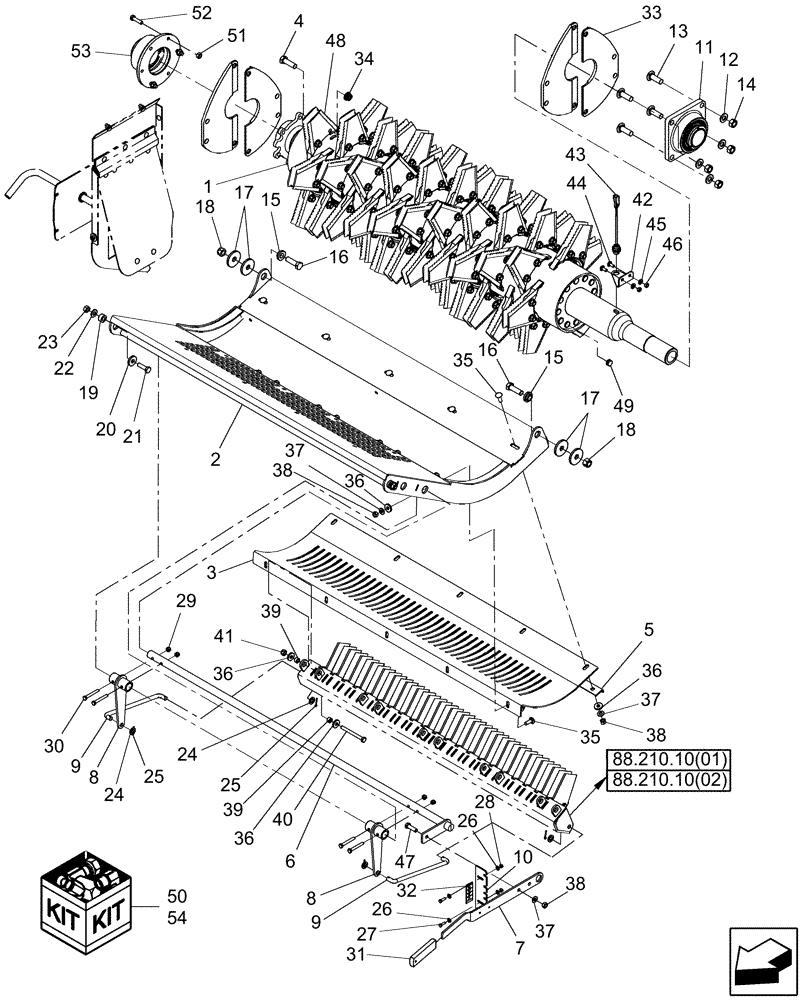

Запчасти Case IH 8010 (88.210.13[01]) - STRAW CHOPPER, INTEGRAL, 3X3 - 9010 (88) - ACCESSORIES

1

87623600

STRAW CHOPPER

126 Knife

1шт.

2

87563854

PAN ASSY.

1шт.

3

87649426

GUARD ASSY.

Knife

1шт.

4

87672196

FLANGE BOLT,Hex, M12 x 45mm, Cl 10.9

Hex Flg Hd, M12 x 45, CL10.9

126шт.

5

87687121

SLAT

1шт.

6

87670411

BAR

Pivot

1шт.

7

87670413

HANDLE

1шт.

8

87670419

ARM ASSY.

2шт.

9

87282824

LINK

2шт.

10

87109324

PLATE

1шт.

11

87109088

BEARING ASSY

1шт.

Please Read Figure Note

1шт.

12

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

4шт.

13

9845488

BOLT

4шт.

14

392530

NUT,M16, Cl 10

4шт.

15

87000251

BUSHING,17mm ID x 34mm OD x 12mm L

2шт.

16

412398

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

2шт.

17

84007183

WASHER,16.5mm ID x 58mm OD x 6mm Thk

4шт.

18

86512555

NUT,M16 x 2, Cl 10

2шт.

19

699963

SPACER

2шт.

20

86592701

WASHER,13mm ID x 35mm OD x 5mm Thk

2шт.

21

337563

BOLT,M12 x 1.75 x 47.68mm, Cl 10.9

2шт.

22

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

23

9706685

NUT,M12 x 1.75, Cl 8

2шт.

24

140018

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

4шт.

25

130004

COTTER PIN,2.9mm OD x 31.4mm OAL

4шт.

26

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

27

120100

BOLT,M6 x 20mm, Cl 8.8

2шт.

28

9706755

NUT,M6, Cl 8

2шт.

29

86629542

NUT,M8 x 1.25, Cl 8.8

4шт.

30

120061

BOLT,Hex, M8 x 60mm L, Cl 8.8

4шт.

31

357545

HANDLE GRIP

1шт.

32

87280049

DECAL

1шт.

33

87282748

SEAL

4шт.

34

86512497

FLANGE NUT,M12 x 1.75, Cl 10

126шт.

35

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

10шт.

36

86592700

WASHER,10.5mm ID x 28mm OD x 4mm Thk

20шт.

37

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

11шт.

38

100016

NUT,M10 x 1.5, Cl 8

11шт.

39

86615036

SPACER

10шт.

40

120075

BOLT,M10 x 1.5 x 106.58mm, Cl 8.8

5шт.

41

100037

LOCK NUT,M10 x 1.5, Cl 8

5шт.

42

87651216

SUPPORT ASSY.

1шт.

43

87342073

SENSOR

Straw Chopper Speed

1шт.

44

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

2шт.

45

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

46

9706690

NUT,M8 x 1.25, Cl 8

2шт.

47

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

1шт.

48

NSS

NOT SOLD SEPARAT

Blade; See Ref 50

1шт.

49

NS

NOT SERVICED

Plug, Plastic

24шт.

50

84141246

SERVICE KIT

Knife; Includes: Refs 4 (6), 34 (6), & 48 (6), Plus Instructions

1шт.

51

86512497

FLANGE NUT,M12 x 1.75, Cl 10

6шт.

52

87672196

FLANGE BOLT,Hex, M12 x 45mm, Cl 10.9

6шт.

53

84174156

BEARING ASSY

Bearing

1шт.

54

87753885

DIA KIT, HARVESTER

Chopper Body; Includes: Refs 1, 3-8, 10-14, 16, 18-49, & 51-53, Instructions

1шт.

Requires Installation Kit

1шт.
