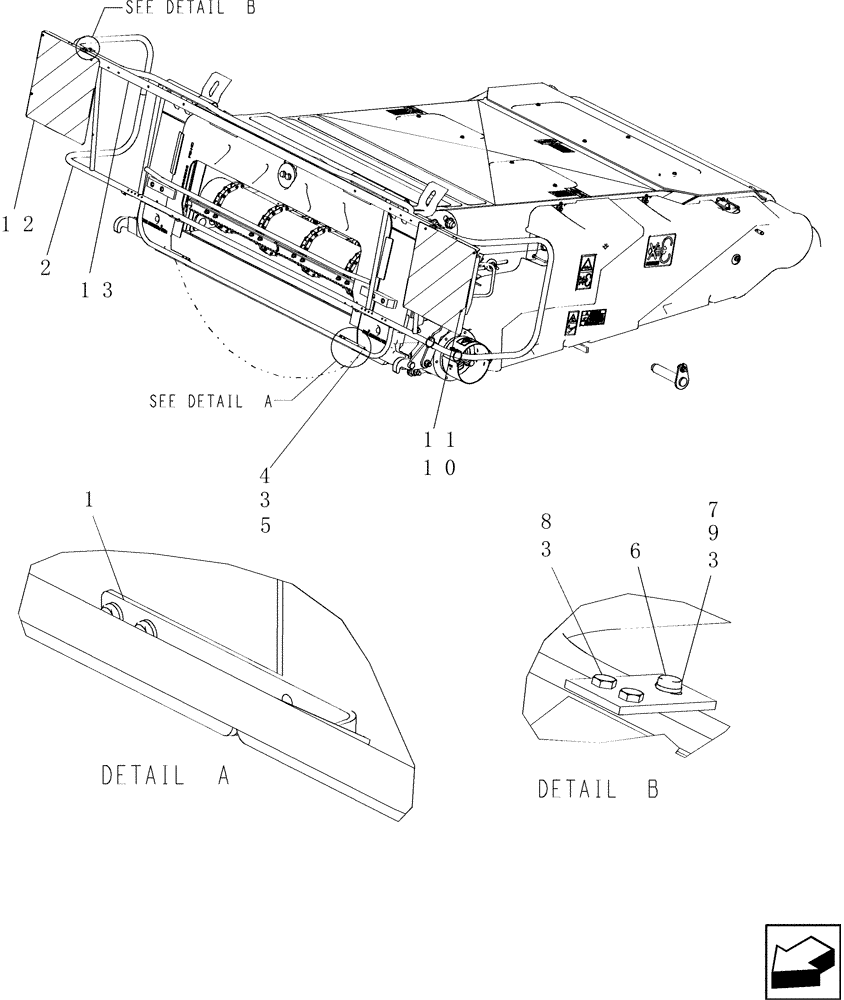

Запчасти Case IH 8010 (88.000.06) - SIGNAL PLATES, FEEDER - GERMANY (88) - ACCESSORIES

1

87000770

BRACKET

2шт.

2

419643

SHIELD

1шт.

3

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

14шт.

4

9706755

NUT,M6, Cl 8

12шт.

5

120100

BOLT,M6 x 20mm, Cl 8.8

6шт.

6

84818296

SUPPORT

2шт.

7

43118

BOLT,Hex, M6 x 1.0 x 40mm, Cl 8.8

2шт.

8

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

4шт.

9

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

6шт.

10

425523

RIVET

Pop, Aluminum

6шт.

11

9824840

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

6шт.

12

84607381

PLATE

Signal

2шт.

13

9502877

SUPPORT

PROFILE

1шт.
