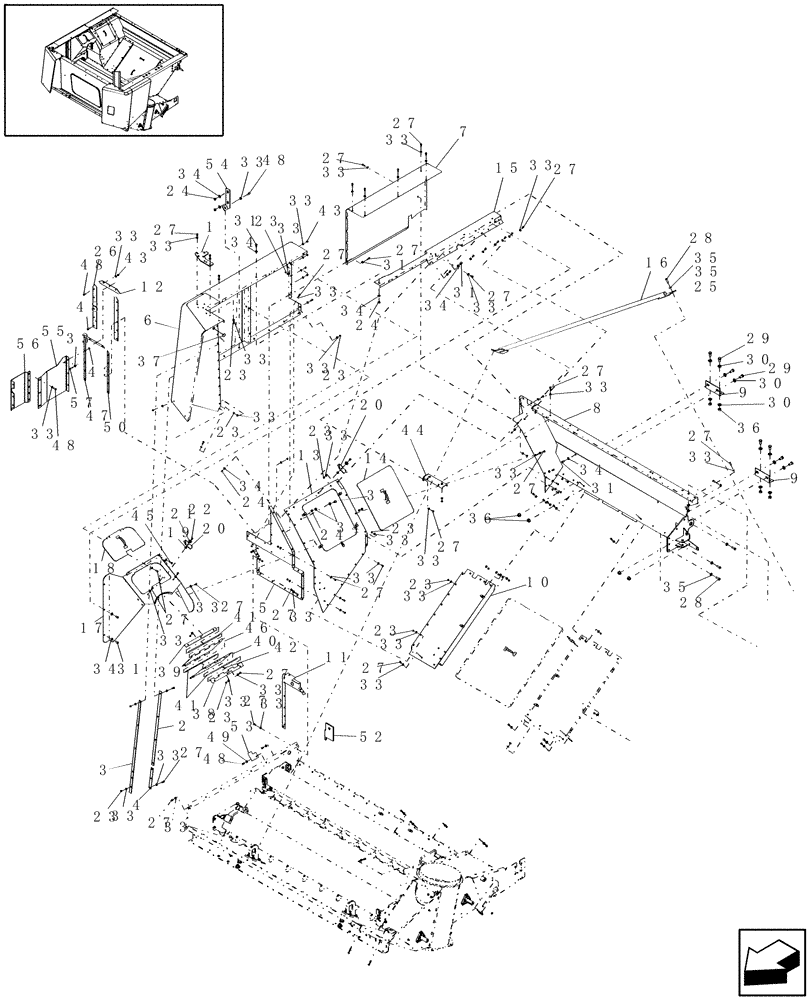

Запчасти Case IH 8010 (80.150.02[01]) - GRAIN TANK, R.H. - 7010/8010 (80) - CROP STORAGE/UNLOADING

1

87106259

PLATE

Black

1шт.

Prior To PIN HAJ200001

1шт.

1

87551365

PLATE

Red

1шт.

PIN HAJ200001 & After

1шт.

2

87109464

STRIP

Black

1шт.

Prior To PIN HAJ200001

1шт.

2

87551410

STRAP,830mm L

Red

1шт.

PIN HAJ200001 & After

1шт.

3

86999449

STRAP

Black

1шт.

Prior To PIN HAJ200001

1шт.

3

87551411

STRAP,1035mm L

Red

1шт.

PIN HAJ200001 & After

1шт.

4

87109462

STRIP

Black

1шт.

Prior To PIN HAJ200001

1шт.

4

87551412

STRAP,230mm L

Red

1шт.

PIN HAJ200001 & After

1шт.

5

87282277

SHEET

Black, Front, Side, RH

1шт.

Prior To PIN HAJ200001

1шт.

5

87551391

SHEET ASSY.

Red

1шт.

PIN HAJ200001 & After

1шт.

6

87380530

PANEL

Black, Side, RH

1шт.

Prior To PIN HAJ200001

1шт.

6

87617903

PANEL

Panel, Red, Side, RH

1шт.

PIN HAJ200001 & After

1шт.

7

87108089

COVER

Black, Top, RH

1шт.

Prior To PIN HAJ200001

1шт.

7

87551359

COVER

Red, Top, RH

1шт.

PIN HAJ200001 & After

1шт.

8

87044302

PANEL

Black

1шт.

Prior To PIN HAJ200001

1шт.

8

87662989

PANEL ASSY.

Red

1шт.

PIN HAJ200001 & After

1шт.

9

86600174

BRACKET

2шт.

10

NS

NOT SERVICED

Sheet, Black, RH

1шт.

Prior To PIN HAJ200001

1шт.

10

87551374

FLOOR

Red, RH

1шт.

PIN HAJ200001 & After

1шт.

11

NS

NOT SERVICED

Sheet, Black, Front, Side, RH

1шт.

Prior To PIN HAJ200001

1шт.

11

87634778

SHEET ASSY.

Red, Front Side, RH

1шт.

PIN HAJ200001 & After

1шт.

12

86998903

SEAL

Black

2шт.

PIN HAJ200001 & After

1шт.

12

87634844

SEAL,63.5mm W x 318mm L x 3.3mm Thk

Red

2шт.

PIN HAJ200001 & After

1шт.

13

87284608

SHEET

Black

1шт.

Prior To PIN HAJ200001

1шт.

13

87551395

SHEET ASSY.

Red

1шт.

PIN HAJ200001 & After

1шт.

14

87106508

COVER

Black, RH

1шт.

Prior To PIN HAJ200001

1шт.

14

87551397

COVER

Red

1шт.

PIN HAJ200001 & After

1шт.

15

87284615

SUPPORT

Black

1шт.

Prior To PIN HAJ200001

1шт.

15

87551294

CHANNEL

Red

1шт.

PIN HAJ200001 & After

1шт.

16

86999852

TUBE,2264 mm L

Grain Tank; Black

1шт.

Prior To PIN HAJ200001

1шт.

16

87551403

TUBE,2264 mm L

Grain Tank; Red

1шт.

PIN HAJ200001 & After

1шт.

17

87044509

SHIELD

Black

1шт.

Prior To PIN HAJ200001

1шт.

17

87551404

SHIELD

Red

1шт.

PIN HAJ200001 & After

1шт.

18

87105853

COVER

Black

1шт.

Prior To PIN HAJ200001

1шт.

18

87551406

COVER

Red

1шт.

PIN HAJ200001 & After

1шт.

19

9824840

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

1шт.

20

362786

FASTENER

1шт.

21

362785

BELLEVILLE WASHER,5.5mm ID x 15mm OD x 0.5mm Thk

1шт.

22

446453

RIVET,Pop, 4mm OD x 9.4mm L

1шт.

23

9706690

NUT,M8 x 1.25, Cl 8

1шт.

24

100016

NUT,M10 x 1.5, Cl 8

1шт.

25

9706685

NUT,M12 x 1.75, Cl 8

1шт.

26

87524453

SEAL,50mm W x 512mm L x 2.5mm Thk

2шт.

27

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

28

300389

BOLT,M12 x 1.75 x 35mm, Cl 8.8

7шт.

29

43167

BOLT,Hex, M16 x 30mm, Cl 8.8, Full Thd

8шт.

30

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

16шт.

31

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

1шт.

32

86585939

BELLEVILLE WASHER,M12 Bolt Size x 32mm OD x 3.5mm Thk

Spring

5шт.

33

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

34

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

35

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

1шт.

36

825-1416

NUT,M16, Cl 8

8шт.

37

353-422

PLUG,Dome, 1.250" hole, Nylon

Rubber

1шт.

38

87105894

HINGE

Black

1шт.

Prior To PIN HAJ200001

1шт.

38

87551723

HINGE

Red

1шт.

PIN HAJ200001 & After

1шт.

39

87105892

HINGE

Black

1шт.

Prior To PIN HAJ200001

1шт.

39

87551726

HINGE

Red

1шт.

PIN HAJ200001 & After

1шт.

40

87105890

SHEET

Black

2шт.

Prior To PIN HAJ200001

1шт.

40

87551740

SHEET

Red

2шт.

PIN HAJ200001 & After

1шт.

41

87106007

PIN

3шт.

42

88467

ROLL PIN,1/8" x 1/2", Slotted

3шт.

43

832-46408

NUT,M8 x 1.25, Cl 8

1шт.

44

84434407

REINFORCEMENT

Black

1шт.

Prior To PIN HAJ200001

1шт.

44

87551413

BRACE

Red

1шт.

PIN HAJ200001 & After

1шт.

45

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

3шт.

46

87282716

DOOR

Black, Incline Auger

1шт.

Prior To PIN HAJ200001

1шт.

46

87565811

TRAP DOOR

Red, Incline Auger

1шт.

PIN HAJ200001 & After

1шт.

47

87282309

SEAL SHEET

Black, Backing Strip Elevator Head Seal

1шт.

Prior To PIN HAJ200001

1шт.

47

87634845

STRIP

Sheet, Red, Backing Strip Elevator Head Seal

1шт.

PIN HAJ200001 & After

1шт.

48

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

16шт.

49

140041

WASHER,M8 x 28mm OD x 3mm Thk

3шт.

50

87282299

SEAL SHEET

Black, Backing, Elevator Head Seal

1шт.

Prior To PIN HAJ200001

1шт.

50

87551673

SHEET

Red, Backing Strip Elevator Head Seal

1шт.

PIN HAJ200001 & After

1шт.

51

86625130

PLUG,Dome, 1.250" hole, Nylon

Not Shown

1шт.

52

87283705

SEAL

Grain Tank

2шт.

53

87363857

BRACKET

Panel Stop

1шт.

54

87657054

STRAP

Tie

1шт.

55

87645802

PLATE

Red

1шт.

Extended Wear

1шт.

56

87645805

PLATE

Red

1шт.

Extended Wear

1шт.

57

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

3шт.
