Запчасти Case IH 8010 (80.101.36) - KIT, HIGH WEAR CAMPAIGN - 7010/8010 (80) - CROP STORAGE/UNLOADING

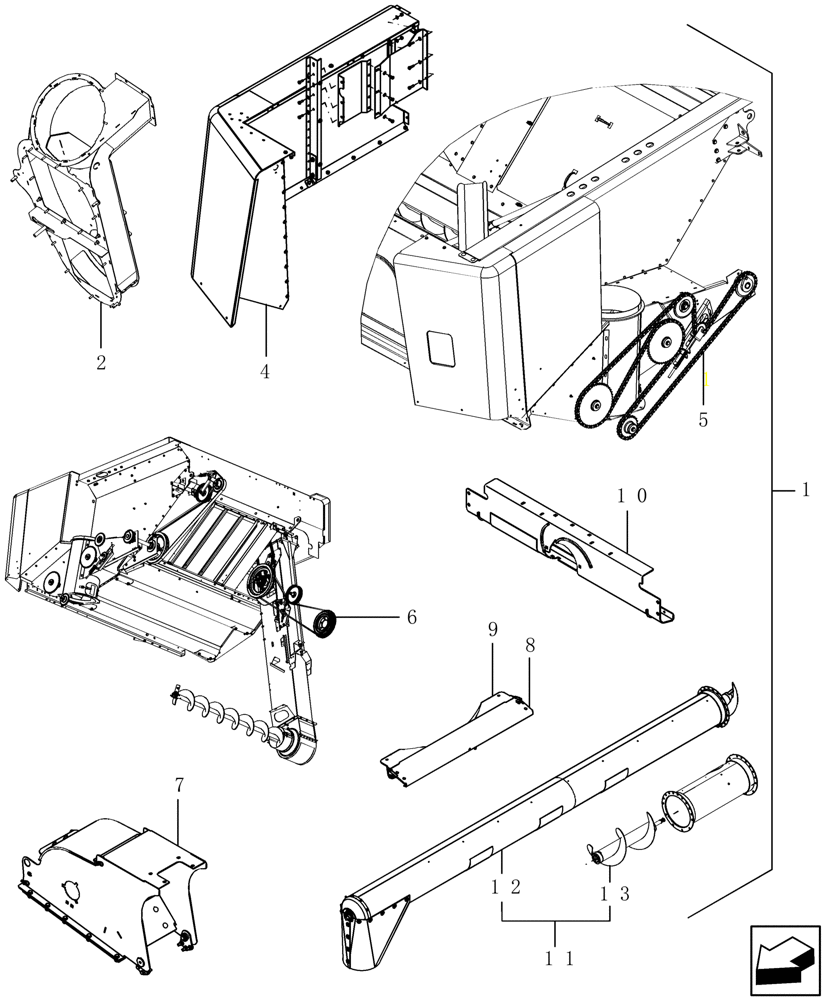

Схема запчастей Case IH 8010 - (80.101.36) - KIT, HIGH WEAR CAMPAIGN - 7010/8010 (80) - CROP STORAGE/UNLOADING
5
7
8
6
11
2
4
1
13
12
10
9
1

Артикул

Название

Примечание

Количество

1

87753015

DIA KIT, HARVESTER

High Wear Campaign; Includes: Refs 2 Thru 11

1шт.

2

87753013

DIA KIT, HARVESTER

High Wear Tailings Processor Upgrade

1шт.

3

87753014

DIA KIT, HARVESTER

Grain Tank Unload Sump Wear Reinforcement

1шт.

Not Shown

1шт.

4

87753011

DIA KIT, HARVESTER

Bubbler Sump

1шт.

5

87753010

DIA KIT, HARVESTER

Grain Tank Auger Slow Down, Unload Rate is 2.7 bu/sec After Installation

1шт.

6

87753906

DIA KIT, HARVESTER

Elevator Speed Reduction

1шт.

7

87753012

DIA KIT, HARVESTER

Extended Wear Elevator Head

1шт.

8

87568249

PLATE ASSY.

Feed

1шт.

9

87470921

PLATE ASSY.

Feed Plate

1шт.

10

87758303

CHANNEL

1шт.

11

87753909

DIA KIT, HARVESTER

Unload Red 21' Extended Wear Bottom Discharge; Includes: Refs 12 Thru 16

1шт.

12

87663132

UNLOADING TUBE

Assembly, Unloader, Extended Wear, 18'

1шт.

13

87471943

AUGER

Assembly Extension, Extended Wear, 3'

1шт.

14

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

9шт.

Not Shown

1шт.

15

445394

RIVET,Pop, 3/16" x 1/2" OAL

9шт.

Not Shown

1шт.

16

86566989

CABLE TIE,208mm L

CABLE STRAP

13шт.

Not Shown

1шт.

Выбрано товаров: 20
