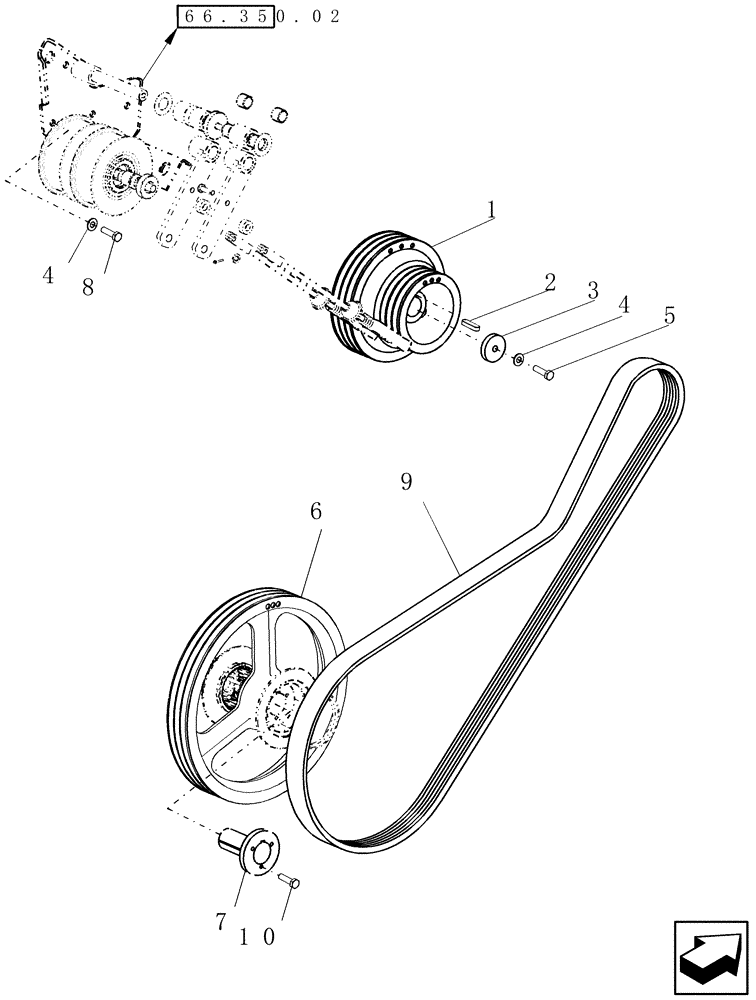

Запчасти Case IH 8010 (66.350.03[01]) - BEATER DRIVES (66) - THRESHING

1

87283335

PULLEY,255mm OD

Dual, Grooved

1шт.

2

170066

KEY,14mm W x 50mm OAL x 9mm Thk

1шт.

3

84073172

WASHER,13mm ID x 60mm OD x 12mm Thk

1шт.

4

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

6шт.

5

9706717

BOLT,Hex, M12 x 1.75 x 70mm, Cl 8.8

1шт.

6

87282664

PULLEY

1шт.

7

87282665

BUSHING

includes a key with dimensions of 13 x 19 x 65

1шт.

8

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

5шт.

9

86517680

V-BELT,3 Rib, 3045mm Nominal Length

Drive, 3HB

1шт.

10

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3шт.
