Запчасти Case IH 8010 (66.260.25[01]) - TRANSFER SHAFT & GEARS, ROTOR GEARBOX - 7010/8010 (66) - THRESHING

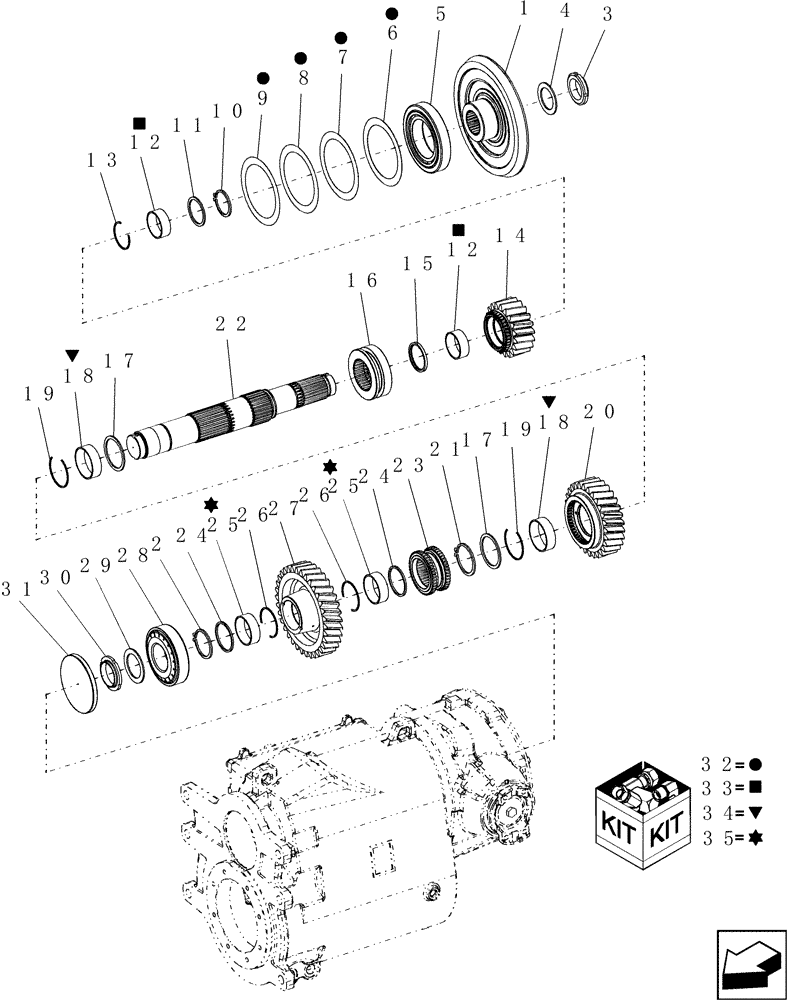

![Схема запчастей Case IH 8010 - (66.260.25[01]) - TRANSFER SHAFT & GEARS, ROTOR GEARBOX - 7010/8010 (66) - THRESHING](https://partsell.ru/storage/images/caseih/134468.png)
№
Артикул
Название
Примечание
Количество
1
87684673
GEAR SET
Bevel
1шт.
1
87684673
GEAR SET
Bevel, This is half of the set, other half one page back, Gearbox 87696391
1шт.
2
800-5155
SNAP RING,M55 x 3mm Thk, External
Retaining, External
2шт.
3
87031062
BEARING LOCK NUT,M45 x 1.5
Stake
1шт.
4
87281243
THRUST WASHER
1шт.
6
87033548
SHIM,110mm ID x 140mm OD x 0.5mm Thk
0.50
1шт.
7
87033546
SHIM,110mm ID x 140mm OD x 0.3mm Thk
0.30
1шт.
8
87033545
SHIM,110mm ID x 140mm OD x 0.15mm Thk
0.15
1шт.
9
87033544
SHIM,110mm ID x 140mm OD x 0.1mm Thk
0.10
1шт.
10
800-5150
SNAP RING,M50, Ext
1шт.
11
87684703
THRUST WASHER
1шт.
12
87280994
NEEDLE BEARING,55mm ID x 60mm OD x 20mm Thk
2шт.
13
87280998
SNAP RING,59.9mm ID x 1.5mm Thk, Internal
2шт.
14
87684701
GEAR
Driver
1шт.
15
87684704
THRUST WASHER,55.2mm ID x 64.8mm OD x 5mm Thk
1шт.
16
87282384
COLLAR,31T / 38T
Shift, 1st Gear
1шт.
17
87282385
THRUST WASHER
2шт.
18
87280992
NEEDLE BEARING,60 mm ID x 65 mm OD x 20 mm
2шт.
19
87280999
SNAP RING,60mm ID x 65mm OD x 20mm Thk
2шт.
20
87282386
GEAR
2nd, 28T
1шт.
21
86625143
RING,M60 x 3mm Thk, External
Snap, External
1шт.
23
87280583
COLLAR,28T Internal / 40T External
Shift, 2nd & 3rd Gear
1шт.
24
87282496
THRUST WASHER
2шт.
25
87280994
NEEDLE BEARING,55mm ID x 60mm OD x 20mm Thk
2шт.
26
87280998
SNAP RING,59.9mm ID x 1.5mm Thk, Internal
Internal
2шт.
27
87684677
GEAR
3rd, 34T
1шт.
28
86509784
BEARING ASSY,55mm ID x 120mm OD x 31.5mm W
1шт.
29
87031063
THRUST WASHER
1шт.
30
87020897
BEARING LOCK NUT,M50 x 1.5
Stake
1шт.
31
375413A1
CAP
Cover
1шт.
32
87743037
SHIM KIT
1шт.
Выбрано товаров: 36
