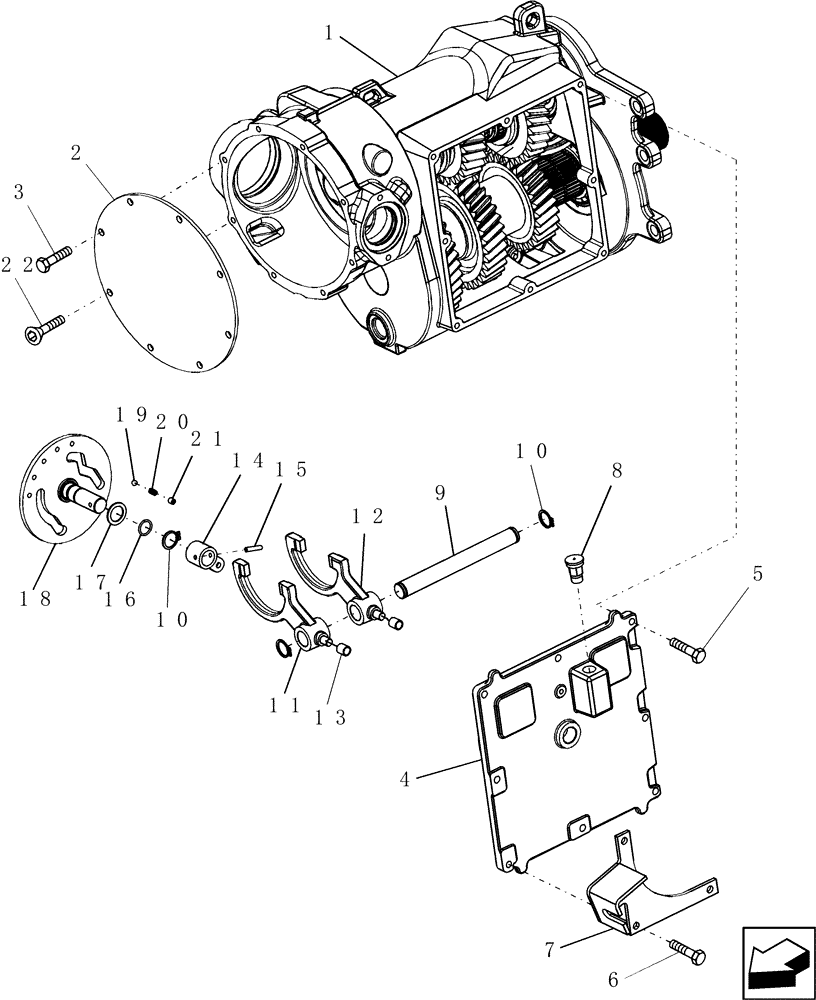

Запчасти Case IH 8010 (66.260.17[01]) - SHIFTING COMPONENTS, ROTOR GEARBOX - 7010/8010 (66) - THRESHING

1

87282569

HOUSING

1шт.

2

87673484

COVER

Rear

1шт.

3

87015732

BOLT,M10 x 1.5 x 26.58mm, Cl 10.9

7шт.

4

87280566

COVER

Side

1шт.

5

87015733

BOLT,M10 x 1.5 x 31.58mm, Cl 10.9

5шт.

6

87015734

BOLT,M25 x 2mm, External

3шт.

7

87280961

BRACKET

Shift Cable

1шт.

8

87283549

BREATHER

1шт.

9

87280505

SHIFT RAIL

1шт.

10

800-5125

CIRCLIP,M25, External

3шт.

11

87280503

SHIFTER FORK

1шт.

12

87281245

SHIFTER FORK

2ND & 3RD Gear

1шт.

13

87281117

BUSHING,12mm ID x 15mm OD x 16.5mm L

2шт.

14

87280568

LEVER

1шт.

15

86979985

PIN,6mm OD x 28mm L, Coiled

1шт.

16

14457580

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

1шт.

17

87034239

WASHER,25mm ID x 36mm OD x 2mm Thk

1шт.

18

87719018

PLATE ASSY.

Shift

1шт.

19

86642304

BALL,7.94mm OD, Gr 24

1шт.

20

87281285

SPRING

Compression

1шт.

21

878-10810

SET SCREW,M8 x 10mm

1шт.

22

725583

HEX SOC SCREW,Flat, M10 x 1.5 x 20mm, Cl 8.8

1шт.
