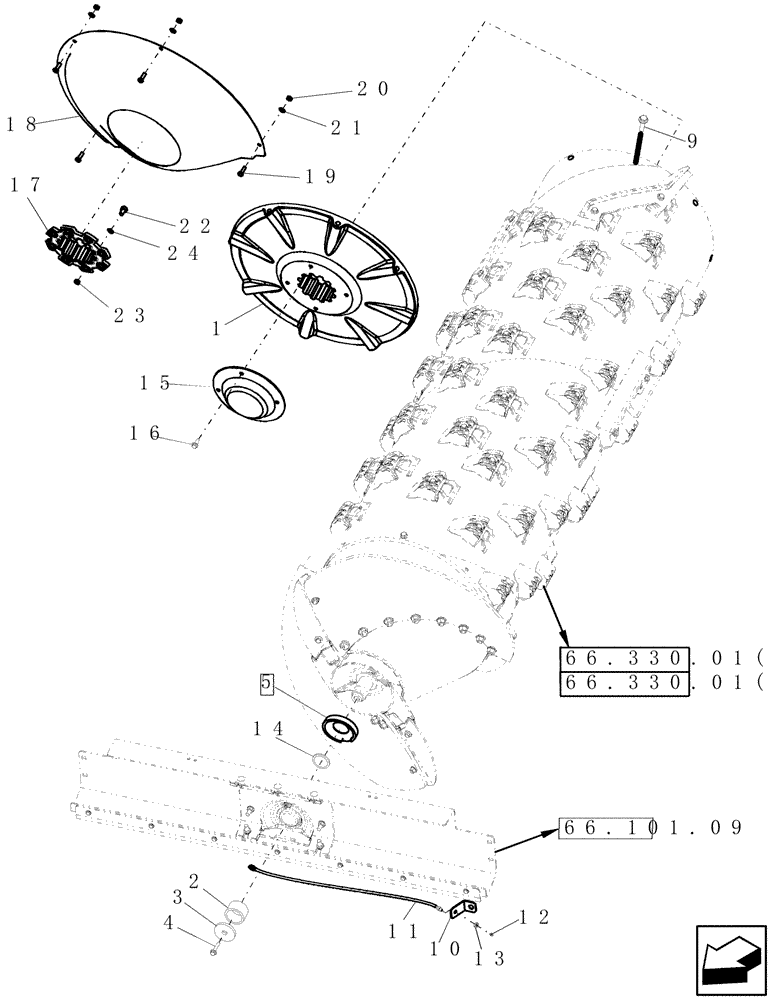

Запчасти Case IH 8010 (66.101.08[01]) - BEARING SUPPORT, ROTOR - 7010/8010 (66) - THRESHING

1

87358533

BULKHEAD

Rotor

1шт.

1

NSS

NOT SOLD SEPARAT

Bulkhead, Rotor; Small Tube, Rice

1шт.

2

87281633

SPACER,50.88mm ID x 66.68mm OD x 44mm L

1шт.

3

86998693

WASHER,17.8mm ID x 76.2mm OD x 9.5mm Thk

1шт.

4

86981489

BOLT,Hex, M16 x 70mm, Cl 10.9

1шт.

5

87323577

RING

1шт.

9

86981678

BOLT,Hex, M12 x 50mm, Cl 10.9

8шт.

10

87107260

SUPPORT

1шт.

11

87107259

HOSE,3.02mm ID x 737mm L

Rotor Bearing Lube

1шт.

12

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

13

134814

NUT,11/16"

1шт.

14

87284474

SHIM,51.18mm ID x 59.7mm OD x 1mm Thk

1шт.

15

87355404

COVER

1шт.

16

86511478

BOLT,Hex Serr, M8 x 1.25 x 16mm

4шт.

17

84222993

SPLINED COUPLING,12T

Replacing 87280751

1шт.

18

87603593

COVER ASSY

Rotor Gearbox (Painted)

1шт.

Small Tube, Rice

1шт.

19

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

20

9706690

NUT,M8 x 1.25, Cl 8

4шт.

21

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

22

120093

BOLT,M16 x 2.0 x 90.18mm, Cl 8.8

8шт.

23

86512380

FLANGE NUT,M16

8шт.

24

86625266

WASHER,17.5mm ID x 30mm OD x 4mm Thk

8шт.
