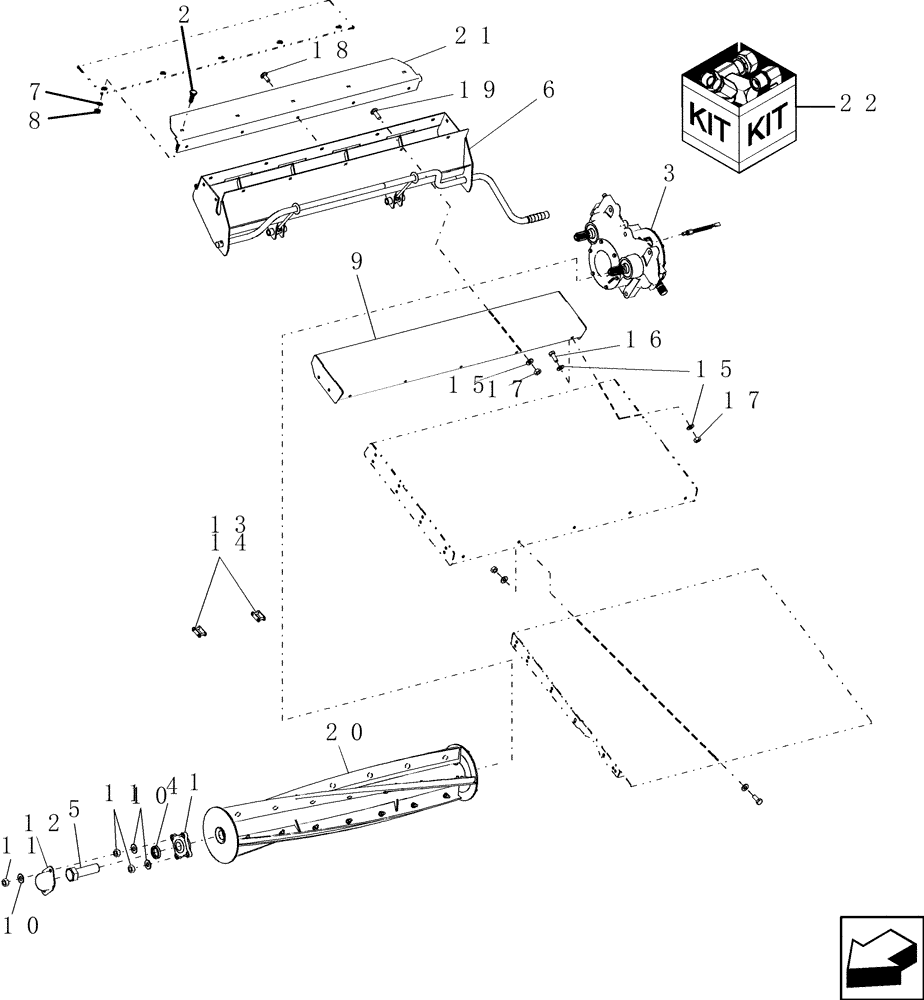

Запчасти Case IH 8010 (66.101.02[01]) - KIT, STONE TRAP - 7010/8010 (66) - THRESHING

1

86995212

BEARING ASSY

1шт.

2

84814921

HEX SOC SCREW,CSS, M8 x 25mm, Cl 10.9

5шт.

3

87536821

GEARBOX ASSY

w/Stone Trap

1шт.

Has Friction Disc Type Clutch

1шт.

4

86997123

WASHER,40mm ID x 57mm OD x 10mm Thk

1шт.

5

86981357

BOLT,1.5" - 6 UNC STD Thread 17.8mm L

1шт.

6

86995139

SUMP

1шт.

7

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

5шт.

8

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

5шт.

9

87673525

FLOOR

1шт.

10

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

6шт.

11

9706685

NUT,M12 x 1.75, Cl 8

6шт.

12

86996082

COVER

1шт.

13

87283350

LINK,41.4mm Pitch

4шт.

14

87283349

LINK,41.4mm Pitch

4шт.

15

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

18шт.

16

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

3шт.

17

100016

NUT,M10 x 1.5, Cl 8

15шт.

18

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

5шт.

19

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

5шт.

20

87284912

BEATER,Assembly

1шт.

21

87730305

FLOOR

RR

1шт.

22

87553555

KIT

Includes: Refs 1 Thru 24

1шт.

23

1329837C2

PIN,2.63mm OD

S Type For Refs 13 & 14

1шт.

24

87546900

SHIM

Not Shown

4шт.
