Запчасти Case IH 8010 (60.150.07) - GEARBOX - HEADER/FEEDER - FIXED SPEED, INPUT HALF (60) - PRODUCT FEEDING

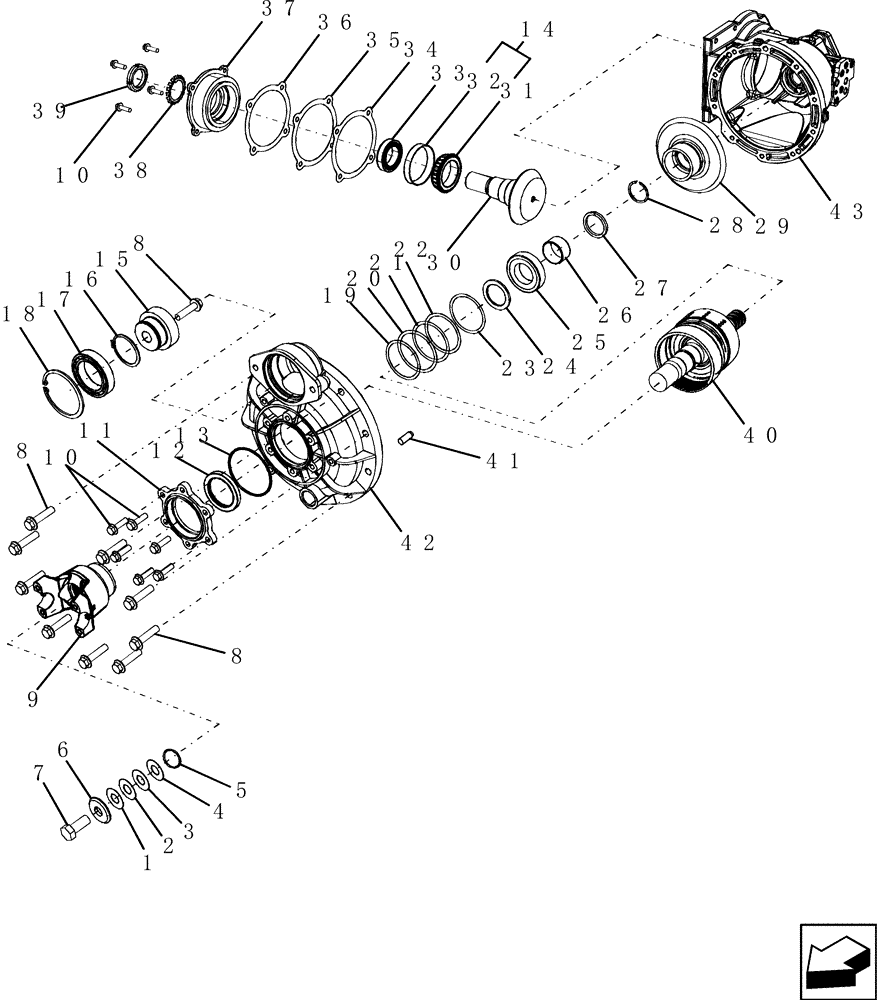

Схема запчастей Case IH 8010 - (60.150.07) - GEARBOX - HEADER/FEEDER - FIXED SPEED, INPUT HALF (60) - PRODUCT FEEDING
35
26
25
43
5
12
22
7
42
39
32
36
24
10
15
18
41
20
30
1
37
9
8
28
40
29
13
8
3
14
10
19
38
27
23
34
6
17
11
31
33
4
8
2
16
21

Артикул

Название

Примечание

Количество

1

S9950S00F

SHIM,0.1mm Thk

(0.10 mm)

1шт.

2

S9960S00F

SHIM,0.31mm Thk

(0.30 mm)

1шт.

3

S9970S00F

SHIM,0.51mm Thk

(0.51 mm)

1шт.

4

S9980S00F

SHIM,0.71mm Thk

(0.7 mm)

1шт.

5

238-5223

O-RING,0.139" Thk x 1.609" ID, -223, Cl 5, 75 Duro

1шт.

6

S8860S00F

THRUST WASHER

1шт.

7

514-1021

BOLT,Hex, M16 x 1.5 x 35mm, Cl 10.9

1шт.

8

844-12050

BOLT,Hex, M12 x 50mm, Cl 8.8

10шт.

9

87281432

YOKE

1шт.

10

844-10035

BOLT,Hex, M10 x 35mm, Cl 8.8

10шт.

11

87442521

COVER

1шт.

12

S8820S00F

OIL SEAL

1шт.

13

362574A1

O-RING

1шт.

14

86998145

BEARING ASSY,65mm ID x 100mm OD x 23mm W

1шт.

15

87445171

GEAR

1шт.

16

800-1160

SNAP RING,M60, External

1шт.

17

70073647

BALL BEARING,59.98mm ID x 95mm OD x 18mm W

1шт.

18

800-2195

SNAP RING,M95, Internal

1шт.

19

428665A1

SHIM,0.1mm Thk

(0.004")

1шт.

20

428666A1

SHIM,0.3mm Thk

(0.012")

1шт.

21

428667A1

SHIM,0.5mm Thk

(0.020")

1шт.

22

428668A1

SHIM,0.7mm Thk

(0.028")

1шт.

23

428669A1

SHIM,0.15mm Thk

(0.006")

1шт.

24

87445174

THRUST WASHER

2шт.

25

3140666R91

TAPERED BEARING

1шт.

26

87445173

NEEDLE BEARING,50mm ID x 55mm OD x 30mm W

1шт.

27

87445162

THRUST WASHER

1шт.

28

375560A1

RING, SNAP

RING SNAP

2шт.

29

87442526

BEVEL GEAR

1шт.

30

87445175

GEAR

1шт.

31

87281210

BEARING ASSY,65 mm ID x 100 mm OD x 23 mm

1шт.

32

87281211

BEARING ASSY,65 mm ID x 100 mm OD x 23 mm

1шт.

33

87281696

BEARING ASSY,50mm ID x 110mm OD x 29.25mm W

1шт.

34

87281510

SHIM

1шт.

35

87281511

SHIM

1шт.

36

87281512

SHIM

1шт.

37

87445178

SLEEVE

1шт.

38

87445176

LOCK WASHER

1шт.

39

87445177

NUT

1шт.

40

87442525

SHAFT

1шт.

41

837-12030

DOWEL,M12 x 30mm OAL

2шт.

42

87442520

CASE

1шт.

43

87442523

HOUSING

1шт.

Выбрано товаров: 43
