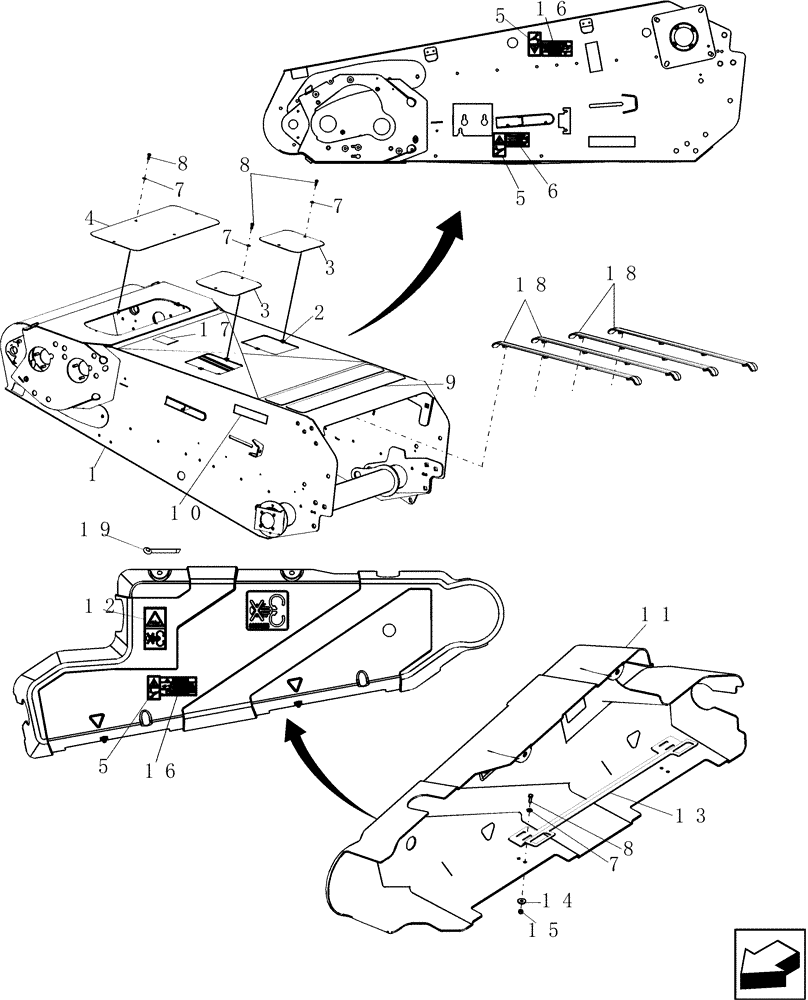

Запчасти Case IH 8010 (60.110.09[01]) - FEEDER HOUSING AND SHIELDS - PRIOR TO PIN HAJ202001 - 7010/8010 (60) - PRODUCT FEEDING

1

86995292

HOUSING

Feeder, Includes: Decals and Anti-Skid Pads

1шт.

1

87283143

HOUSING ASSY.

Feeder

1шт.

For EU Only

1шт.

2

86508354

PUSH-ON NUT,M8 x 1.25

U-Spring, M8 x 1.50 x 3.50mm

4шт.

3

86995571

COVER

Top

2шт.

4

87283147

COVER

1шт.

5

84004735

CAUTION DECAL

3шт.

6

86626958

WARNING DECAL

English

4шт.

7

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

12шт.

8

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

12шт.

9

86995792

PAD,125mm W x 1270mm L

Anti-Skid

2шт.

10

86547782

REFLECTOR,YELLOW

Reflective

2шт.

11

86999218

SHIELD

W/Decals

1шт.

11

87282751

SHIELD

W/Decals

1шт.

For EU Only

1шт.

12

86999254

DANGER DECAL

1шт.

13

87108372

BRACKET

1шт.

14

140041

WASHER,M8 x 28mm OD x 3mm Thk

4шт.

15

832-46408

NUT,M8 x 1.25, Cl 8

4шт.

16

86624774

DANGER DECAL

2шт.

17

84014117

DECAL

Stop

4шт.

18

86638209

STRIP

Wear

4шт.

19

86629239

COTTER PIN,Int, 5/16" x .177

2шт.
