Запчасти Case IH 8010 (60.110.06[02]) - FEEDER FLOOR AND CHAINS - WITH ROCK TRAP - 7010/8010 (FEB 16 2012 8:29AM) (60) - PRODUCT FEEDING

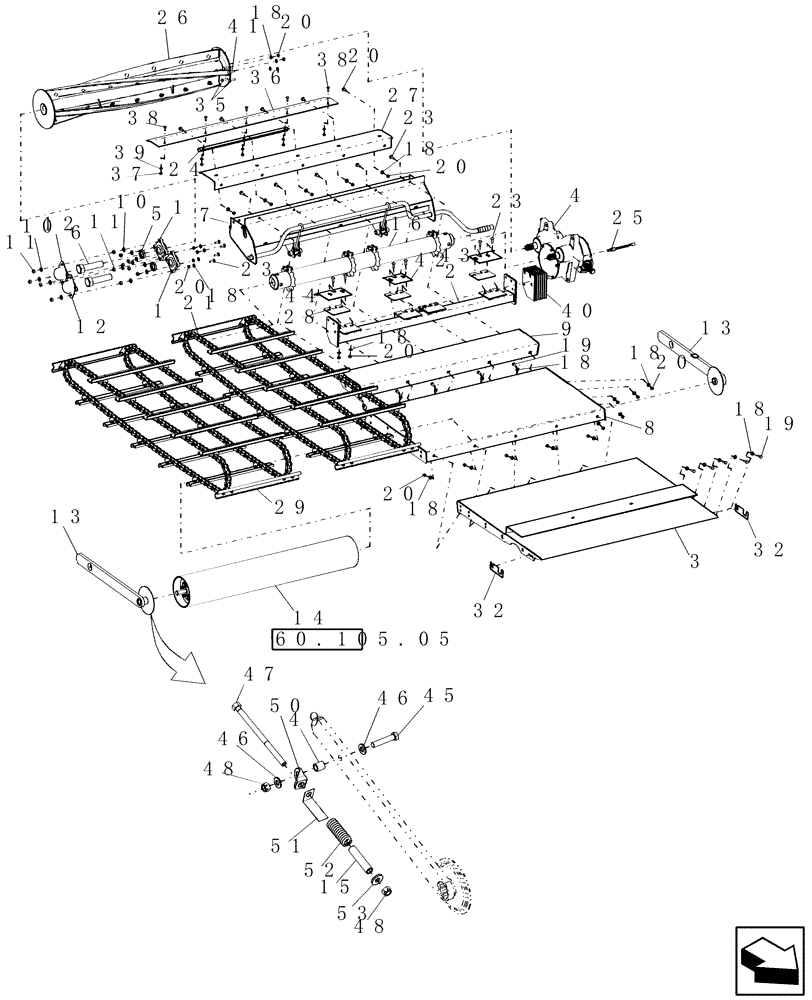

Схема запчастей Case IH 8010 - (60.110.06[02]) - FEEDER FLOOR AND CHAINS - WITH ROCK TRAP - 7010/8010 (FEB 16 2012 8:29AM) (60) - PRODUCT FEEDING
20
40
6
5
1
11
47
48
13
18
2
18
45
35
18
26
20
10
23
4
60.105.05
11
29
9
32
38
3
24
18
20
46
38
7
36
20
18
43
32
23
19
28
53
42
21
16
15
41
39
18
19
48
12
12
46
51
23
44
25
10
1
20
20
14
37
20
18
8
49
18
27
50
13
52

Артикул

Название

Примечание

Количество

1

86995212

BEARING ASSY

2шт.

2

87385031

SUPPORT

1шт.

3

87393958

FLOOR

1шт.

4

87536821

GEARBOX ASSY

1шт.

Has Friction Disc Type Clutch

1шт.

4

87536821R

REMAN-GEARBOX

Has Friction Disc Type Clutch

1шт.

4

87536821C

CORE-GEARBOX

Return Number

1шт.

4

84273350R

REMAN-GEARBOX

Reman Gearbox -- Has Friction Disc Type Clutch

1шт.

4

84273350C

CORE-GEARBOX

Return Number

1шт.

5

86997123

WASHER,40mm ID x 57mm OD x 10mm Thk

2шт.

6

86981357

BOLT,1.5" - 6 UNC STD Thread 17.8mm L

2шт.

7

86995139

SUMP

1шт.

8

87282537

FLOOR

1шт.

8

84084681

DIA KIT, HARVESTER

Perforated Floor; Includes: Instructions

1шт.

9

87673525

FLOOR

1шт.

10

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

12шт.

11

9706685

NUT,M12 x 1.75, Cl 8

12шт.

12

86996082

COVER

2шт.

13

87660200

ARM ASSY.

2шт.

14

0C

ORDER COMPONENTS

Front, Feed

1шт.

15

84157715

TUBE

2шт.

16

87283554

SPROCKET

Upper

1шт.

18

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

48шт.

19

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

10шт.

20

100016

NUT,M10 x 1.5, Cl 8

34шт.

21

87283349

LINK,41.4mm Pitch

4шт.

22

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

5шт.

23

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

17шт.

24

87537644

CHANNEL

1шт.

25

87662555

SENSOR

1шт.

26

87284912

BEATER,Assembly

Stone Trap

1шт.

27

87730305

FLOOR

1шт.

28

87546900

SHIM

4шт.

29

87397925

CHAIN (AG)

Standard, Serrated

2шт.

29

87283357

CHAIN (AG)

Optional, Smooth

2шт.

32

87537643

SHIM,50mm OD x 1.32mm Thk

8шт.

35

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

2шт.

36

87533210

SEAL

1шт.

37

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

5шт.

38

84814921

HEX SOC SCREW,CSS, M8 x 25mm, Cl 10.9

5шт.

39

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

5шт.

40

87385034

SHIM

8шт.

41

374892

CARRIAGE BOLT,M10 x 1.5 x 40mm, Cl 8.8

2шт.

42

87384612

PLATE

Strip-Off, Center

2шт.

43

87384614

PLATE

Strip-Off, LH

1шт.

44

87384616

PLATE

Strip-Off, RH

1шт.

45

86577946

BOLT,Hex, M16 x 80mm x 10.9

2шт.

46

394631

WASHER,17mm ID x 34mm OD x 4mm Thk

4шт.

47

84155550

THREADED ROD

2шт.

48

86000441

NUT,M16 x 2.0, Cl 8

4шт.

49

87021332

SPACER,17mm ID x 25mm OD x 27mm L

2шт.

50

84163072

BRACKET

2шт.

51

84163120

BRACKET

2шт.

52

693887

SPRING

Compression

2шт.

53

325594

WASHER,M17 x 40mm OD x 5mm Thk

2шт.

54

87283373

LINK,Chain, 3 Links x 41.4mm = 124.2mm

1шт.

Выбрано товаров: 56
