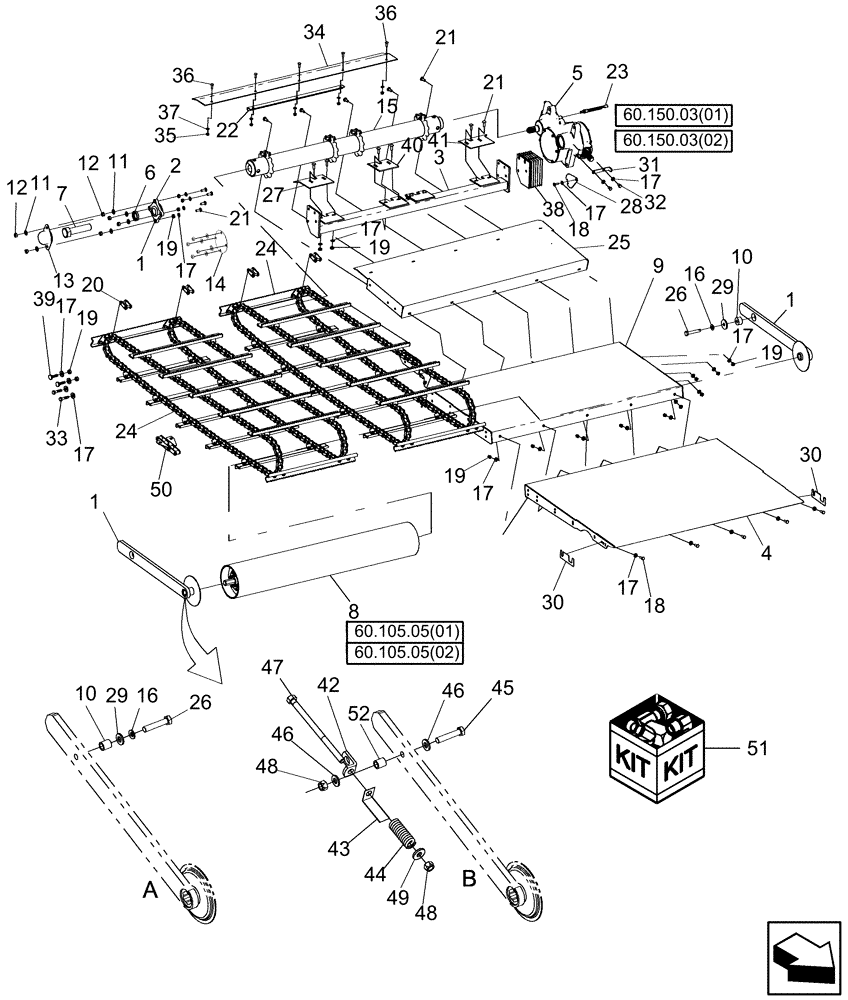

Запчасти Case IH 8010 (60.110.06[01]) - FEEDER FLOOR AND CHAINS - WITHOUT ROCK TRAP - 7010/8010 (Apr 30 2010 1:34PM) (60) - PRODUCT FEEDING

1

87282449

ARM

See Also: Ref 51

2шт.

Prior To PIN HAJ202607

1шт.

1

87660200

ARM ASSY.

2шт.

PIN HAJ202607 & After

1шт.

2

86995212

BEARING ASSY

1шт.

3

87385031

SUPPORT

1шт.

4

87393958

FLOOR

1шт.

5

87283912

GEARBOX

1шт.

Prior To PIN HAJ201168

1шт.

Has Torque Limiter Type Clutch

1шт.

5

87536819

GEARBOX ASSY

1шт.

Has Friction Disc Type Clutch

1шт.

PIN HAJ201168 & After

1шт.

6

86997123

WASHER,40mm ID x 57mm OD x 10mm Thk

1шт.

7

86981357

BOLT,1.5" - 6 UNC STD Thread 17.8mm L

1шт.

8

0C

ORDER COMPONENTS

1шт.

9

87282537

FLOOR

1шт.

9

84084681

DIA KIT, HARVESTER

Perforated Floor; Includes: Instructions

1шт.

10

87282454

BUSHING,17mm ID x 44.45mm OD x 24mm L

2шт.

Prior To PIN HAJ202001

1шт.

11

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

10шт.

12

9706685

NUT,M12 x 1.75, Cl 8

10шт.

13

86996082

COVER

1шт.

14

86995710

COVER

1шт.

15

87283554

SPROCKET

1шт.

16

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

2шт.

Prior To PIN HAJ202001

1шт.

17

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

34шт.

18

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

6шт.

19

100016

NUT,M10 x 1.5, Cl 8

24шт.

20

87283350

LINK,41.4mm Pitch

4шт.

21

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

17шт.

22

87537644

CHANNEL

1шт.

23

87662555

SENSOR

Feeder Speed

1шт.

24

87397924

CHAIN,Feeder, 111 Links x 41.4mm = 4636.8mm

Standard, Z Slat

2шт.

24

87283359

ELEVATOR CHAIN

Optional, U Slat

2шт.

25

87730307

FLOOR

1шт.

26

87283073

BOLT

2шт.

Prior To PIN HAJ202001

1шт.

27

87384616

PLATE

1шт.

28

87281862

PLATE

1шт.

29

84007183

WASHER,16.5mm ID x 58mm OD x 6mm Thk

2шт.

Prior To PIN HAJ202001

1шт.

30

87537643

SHIM,50mm OD x 1.32mm Thk

2шт.

31

87044119

BRACKET

1шт.

Prior To PIN HAJ202001

1шт.

32

300383

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

2шт.

Prior To PIN HAJ202001

1шт.

33

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

2шт.

34

87533210

SEAL

1шт.

35

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

5шт.

36

84814921

HEX SOC SCREW,CSS, M8 x 25mm, Cl 10.9

5шт.

37

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

5шт.

38

87385034

SHIM

8шт.

39

374892

CARRIAGE BOLT,M10 x 1.5 x 40mm, Cl 8.8

2шт.

40

87384612

PLATE

2шт.

41

87384614

PLATE

1шт.

42

84163072

BRACKET

Flat

2шт.

43

84163120

BRACKET

2шт.

44

87644191

COMPRESSION SPRING

2шт.

45

86577946

BOLT,Hex, M16 x 80mm x 10.9

2шт.

46

394631

WASHER,17mm ID x 34mm OD x 4mm Thk

4шт.

47

87518126

ROD ASSY.

Threaded

2шт.

48

86000441

NUT,M16 x 2.0, Cl 8

4шт.

49

325594

WASHER,M17 x 40mm OD x 5mm Thk

2шт.

50

87283373

LINK,Chain, 3 Links x 41.4mm = 124.2mm

1шт.

51

84182198

DIA KIT, HARVESTER

Front Feeder Drum Spring Tension

1шт.

To Update Machines Built Prior To PIN HAJ202001 To New Chain Tensioning System

1шт.

52

87021332

SPACER,17mm ID x 25mm OD x 27mm L

2шт.
