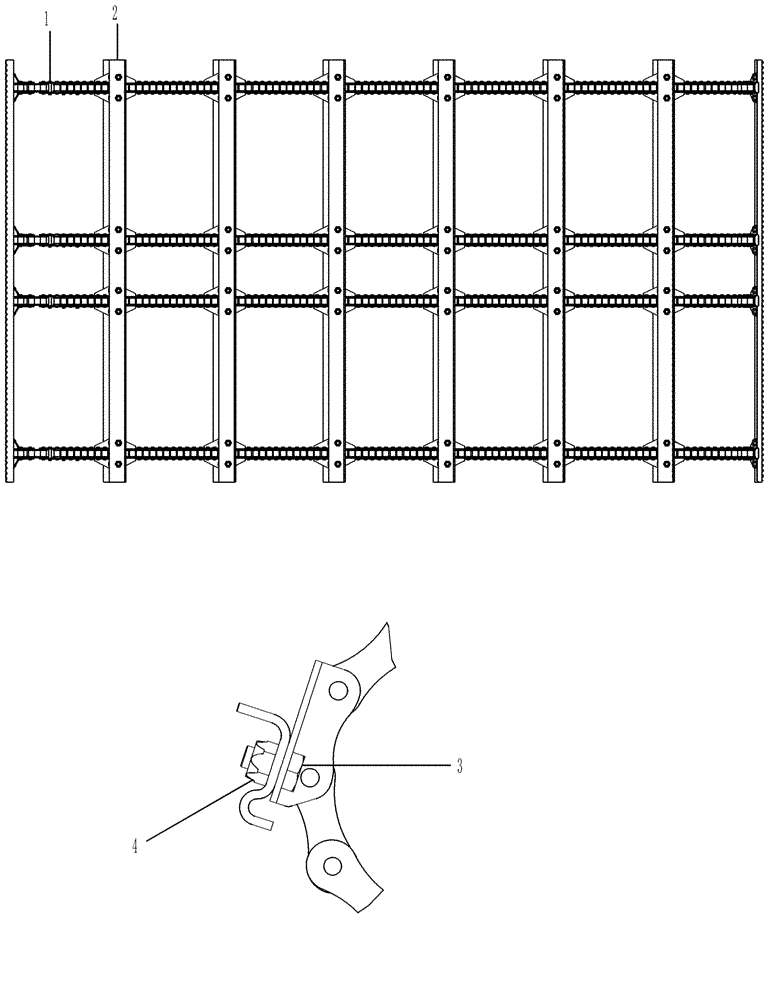

Запчасти Case IH 8010 (60.105.03) - CHAIN ASSY AND FEEDER SLATS - STANDARD (60) - PRODUCT FEEDING

1

87283354

CHAIN,A557, 111 Links x 41.4mm = 4594.29mm

2шт.

W/O Rock Trap

1шт.

1

87283355

CHAIN,A557, 98 Links x 41.4mm = 4057.2mm

2шт.

W/Rock Trap

1шт.

2

87617002

SLAT

Feeder, L = 24.8"; W/O Rock Trap (14), W/Rock Trap (12)

1шт.

3

9861444

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9

W/O Rock Trap (56), W/Rock Trap (48)

1шт.

4

86512554

NUT,M10 x 1.5, Cl 10

W/O Rock Trap (56), W/Rock Trap (48)

1шт.

5

87397924

CHAIN,Feeder, 111 Links x 41.4mm = 4636.8mm

ASSY. Includes: Refs 1 - 4

1шт.

W/O Rock Trap

1шт.

5

87397925

CHAIN (AG)

ASSY. Includes: Refs 1 - 4

2шт.

W/Rock Trap

1шт.

6

87283351

LINK,Chain, 41.4mm Pitch

Roller; 87283354 (55), 87283355 (49)

1шт.

Not Shown

1шт.

7

87283349

LINK,41.4mm Pitch

1шт.

Not Shown

1шт.

8

87283350

LINK,41.4mm Pitch

1шт.

Not Shown

1шт.
