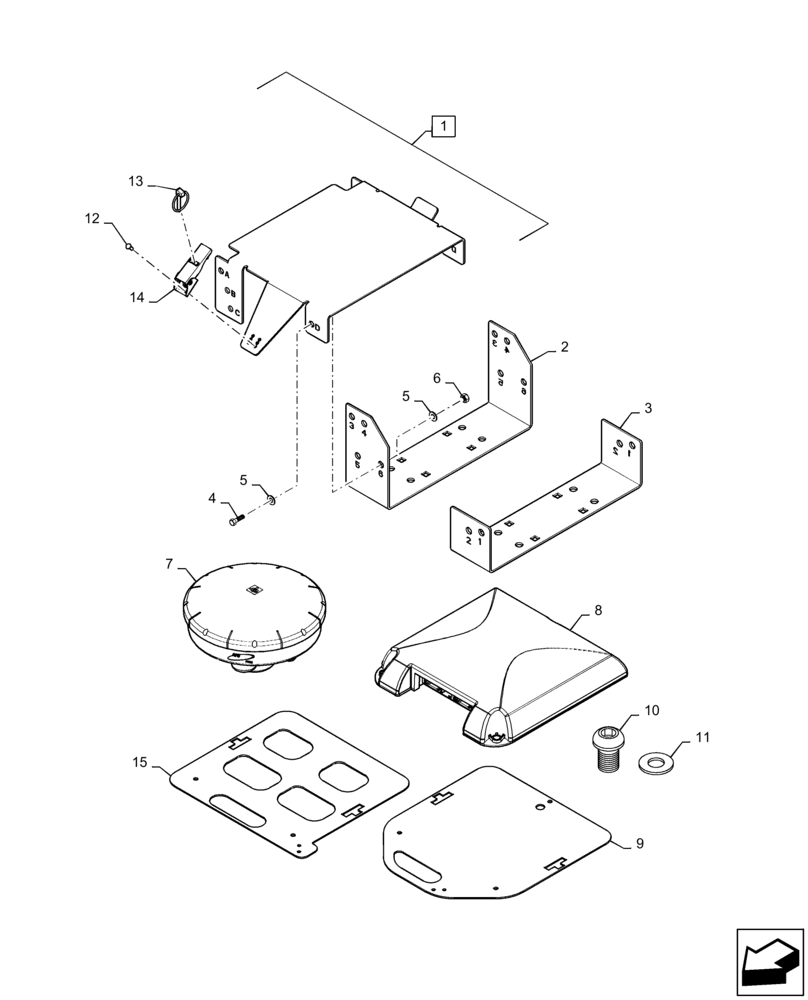

Запчасти Case IH 8010 (55.440.12[03]) - GPS MOUNT - 7010/8010 (55) - ELECTRICAL SYSTEMS

1

87359035

BRACKET

252 Receiver, Incl 12 - 14

1шт.

2

87335677

BRACKET

Long

1шт.

3

87335635

BRACKET

Short

1шт.

4

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

5

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

8шт.

6

9706690

NUT,M8 x 1.25, Cl 8

4шт.

7

87472720

ANTENNA

/Receiver AFS100, (WAAS Only)

1шт.

7

87491749R

REMAN ELECT CONTROL

7010, 8010 PIN HAJ200001 THRU HAJ204999, Both AXIAL-FLOW COMBINE, Receiver AFS100, (WAAS Only) (2/07-9/08), Reman for New PN 87472720

1шт.

7

87491749C

CORE-ELECTRONIC CONT

Return Number

1шт.

8

87491749

ANTENNA

, Start Serial: Y9G207726

1шт.

8

87491749R

REMAN ELECT CONTROL

7010 (2/07-9/08), 8010 PIN HAJ200001 THRU HAJ204999 (9/06-9/08), Both AXIAL-FLOW COMBINE, Start Serial: Y9G207726

1шт.

8

87491749C

CORE-ELECTRONIC CONT

Return Number

1шт.

8

87595761

KIT

Receiver, AFS262, WAAS/EGNOS/VBS; Includes: Mounting Plate & Hardware, Serial Range: -Y9G207726

1шт.

9

87568855

MOUNTING PLATE

1шт.

10

87106351

HEX SOC SCREW,BTN HD, 5/8" - 11 x 3/4"

To Mount AFS100

1шт.

11

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

1шт.

12

87308841

RIVET,Pop, 3.97mm OD x 10.79mm L

2шт.

13

87109290

LOCK PIN,25.4mm OD x 30mm L

1шт.

14

87308870

LATCH

1шт.

15

87496985

MOUNTING PLATE

For Use With 87595761

1шт.
