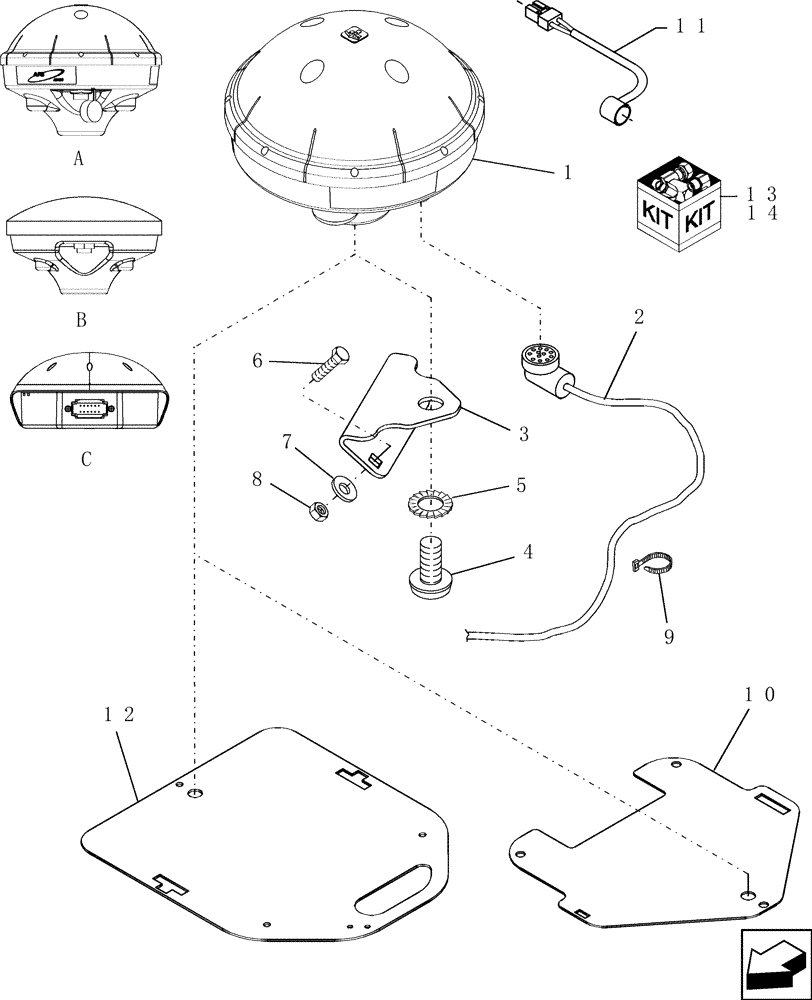

Запчасти Case IH 8010 (55.440.12[01]) - GPS MOUNT - 7010/8010 (55) - ELECTRICAL SYSTEMS

1

87350411

ANTENNA

AFS 110; H = 4.9"

1шт.

1

84574273R

REMAN ELECT CONTROL

7010 (2/07-9/08), 8010 (9/06-9/08) - PIN HAJ200001 THRU HAJ204999, Both AXIAL-FLOW COMBINE, AFS 110; H = 4.9" , Reman for New PN 87350411

1шт.

1

84574273C

CORE-ELECTRONIC CONT

Return Number

1шт.

1

87472720

ANTENNA

AFS 100 Receiver; H = 3.8"

1шт.

1

87491749R

REMAN ELECT CONTROL

7010, 8010 PIN HAJ200001 THRU HAJ204999, Both AXIAL-FLOW COMBINE, AFS 100 Receiver; H = 3.8" (2/07-9/08), Reman for New PN 87472720

1шт.

1

87491749C

CORE-ELECTRONIC CONT

Return Number

1шт.

1

87491749

ANTENNA

AFS 162; H = 3.4"

1шт.

1

87491749R

REMAN ELECT CONTROL

7010 (2/07-9/08), 8010 PIN HAJ200001 THRU HAJ204999 (9/06-9/08), Both AXIAL-FLOW COMBINE, AFS 162; H = 3.4"

1шт.

1

87491749C

CORE-ELECTRONIC CONT

Return Number

1шт.

2

87281699

CABLE

Antenna

1шт.

3

87109748

SUPPORT

1шт.

4

87106351

HEX SOC SCREW,BTN HD, 5/8" - 11 x 3/4"

1шт.

5

86977690

LOCK WASHER,Ext Tooth, 5/8"

1шт.

5

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

1шт.

6

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

7

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

8

9706690

NUT,M8 x 1.25, Cl 8

1шт.

9

86566989

CABLE TIE,208mm L

CABLE STRAP

10шт.

10

87360938

PLATE

252 Mounting

1шт.

11

87383158

WIRE HARNESS

252 To 100 Adapter; L = 175mm

1шт.

12

87568855

MOUNTING PLATE

252

1шт.

13

84083169

DIA KIT, HARVESTER

AFS110; Includes: Ref 1, 87350411, Plus Software Pkg 87284238

1шт.

14

84083170

DIA KIT, HARVESTER

AFS100; Includes: Ref 1, 87472720, Plus Software Pkg 87284238

1шт.

15

84150838

ANTENNA

Kit, DIA Harvester, AFS162; Includes: Ref 1, 87491749, Plus Software Pkg

1шт.
