(55.440.05[01]) - CCM MODULES, YMIU CONTROLLER & SHAFT SPEED MONITOR - 7010/8010

Запчасти Case IH 8010 (55.440.05[01]) - CCM MODULES, YMIU CONTROLLER & SHAFT SPEED MONITOR - 7010/8010 (55) - ELECTRICAL SYSTEMS

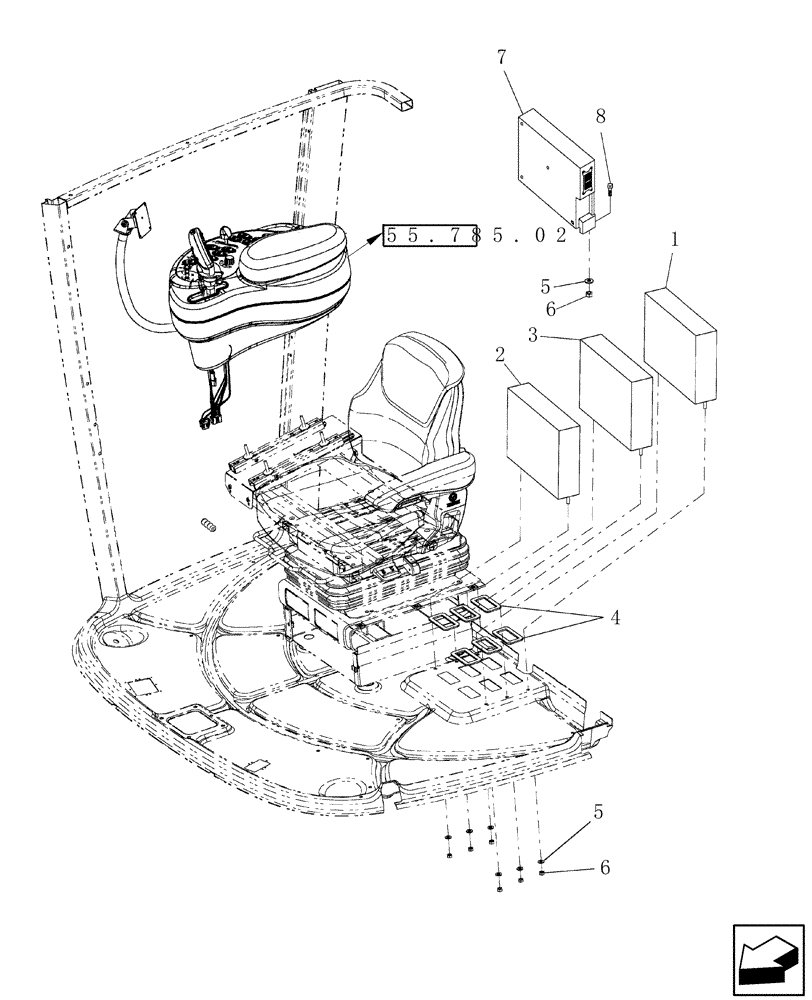

Схема запчастей Case IH 8010 - (55.440.05[01]) - CCM MODULES, YMIU CONTROLLER & SHAFT SPEED MONITOR - 7010/8010 (55) - ELECTRICAL SYSTEMS
5
2
8
5
7
6
6
3
1
55.785.02
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87014401

ECU

CCM1

1шт.

1

87014401R

REMAN ELECT CONTROL

Reman for New PN 87014401

1шт.

1

87014401C

CORE-ELECTRONIC CONT

Return Number

1шт.

2

87014401

ECU

CCM2

1шт.

2

87014401R

REMAN ELECT CONTROL

Reman for New PN 87014401

1шт.

2

87014401C

CORE-ELECTRONIC CONT

Return Number

1шт.

3

87014401

ECU

CCM3

1шт.

3

87014401R

REMAN ELECT CONTROL

Reman for New PN 87014401

1шт.

3

87014401C

CORE-ELECTRONIC CONT

Return Number

1шт.

4

87011216

GASKET

6шт.

5

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

6

9706690

NUT,M8 x 1.25, Cl 8

1шт.

7

86976394

ECU

YMIU

1шт.

Also Included In Yield Moisture Kit 84083168

1шт.

Prior To PIN HAJ202001

1шт.

7

86976394R

REMAN ELECT CONTROL

7010 (2/07-9/08), 8010 PIN HAJ200001 THRU HAJ204999 (9/06-9/08), Both AXIAL-FLOW COMBINE, YMIU, Prior To PIN HAJ202001

1шт.

7

86976394C

CORE-ELECTRONIC CONT

Return Number

1шт.

8

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

9

87282399

SOFTWARE

YMIU

1шт.
