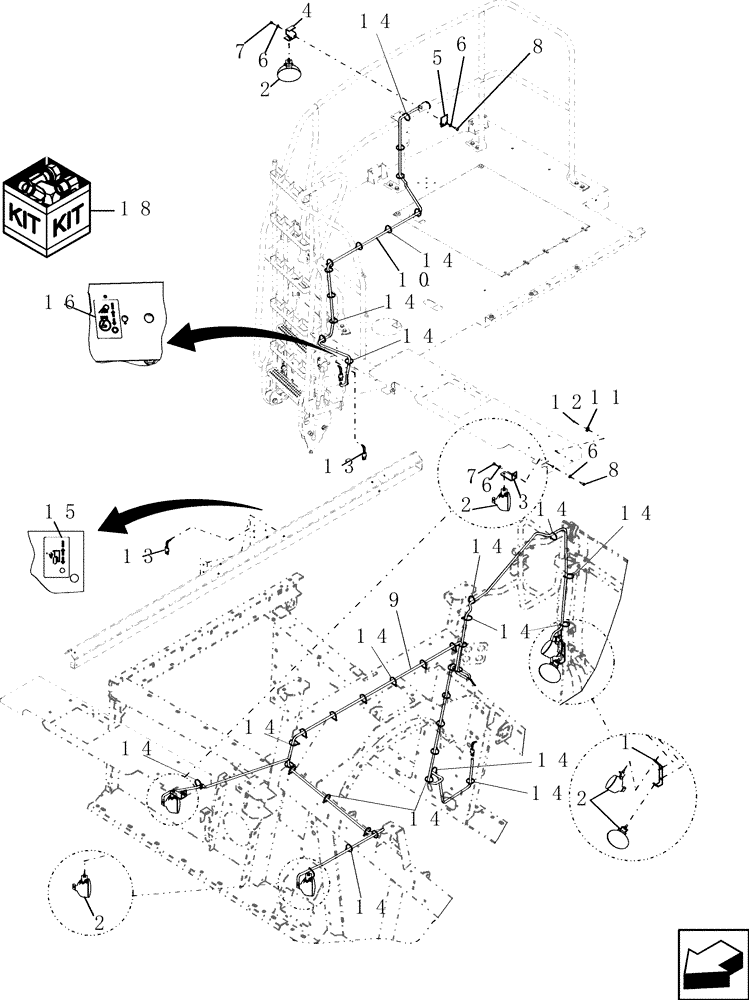

Запчасти Case IH 8010 (55.404.49[01]) - DELUXE SERVICE LIGHTING - 7010/8010 (55) - ELECTRICAL SYSTEMS

1

87105346

BRACKET

1шт.

Used Prior To 6/07

1шт.

2

87001315

WORK LAMP,Halogen, 12V, 37.5W, Clear

5шт.

3

87105352

BRACKET

1шт.

4

87107537

BRACKET

1шт.

Lamp Mount Changed To A Weld-On Tab, 3/07; Handrail W/Weld-On Tab Is 87644023

1шт.

5

87107539

PLATE

1шт.

Lamp Mount Changed To A Weld-On Tab, 3/07; Handrail W/Weld-On Tab Is 87644023

1шт.

6

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

8шт.

7

9706690

NUT,M8 x 1.25, Cl 8

4шт.

8

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

9

87109354

WIRE HARNESS

Underpanel Lights

1шт.

10

87109355

WIRE HARNESS

Engine Deck Lights

1шт.

11

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

Base, Wire Tie

1шт.

12

325911

RIVET,Pop, 4.75mm OD x 7.4mm L

1шт.

13

391062A1

SWITCH

Service Light

2шт.

14

86566989

CABLE TIE,208mm L

CABLE STRAP Nylon

42шт.

15

87015175

DECAL

Sign, Light Switch

1шт.

16

87013946

DECAL

Sign, Light Switch

1шт.

17

87107077

BULB,Halogen, 12V, 37.5W

862, 12V

5шт.

18

84083977

LIGHT ASSY.

Includes: Refs 1 Thru 3, 6 Thru 16

1шт.
